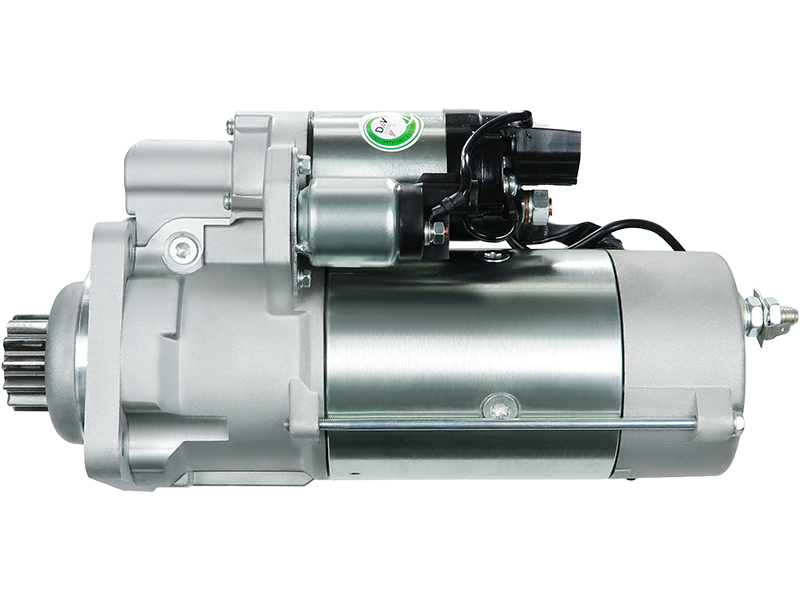

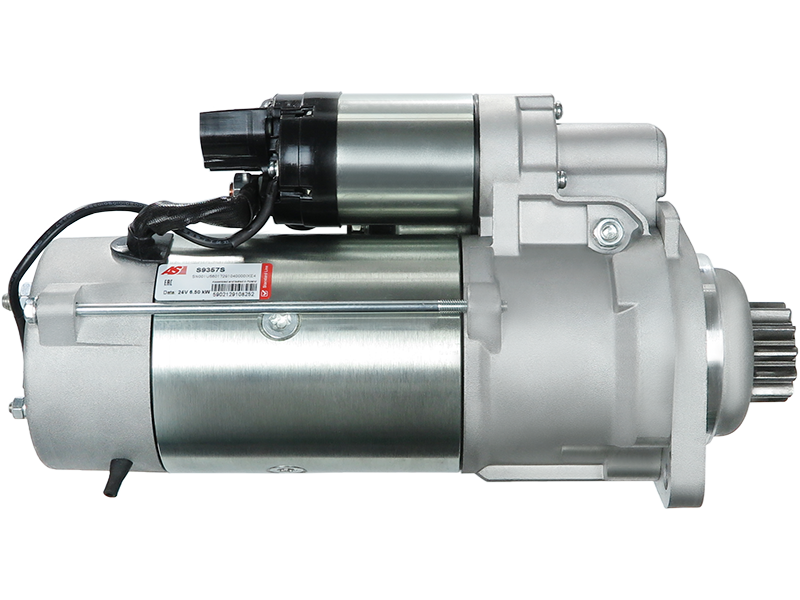

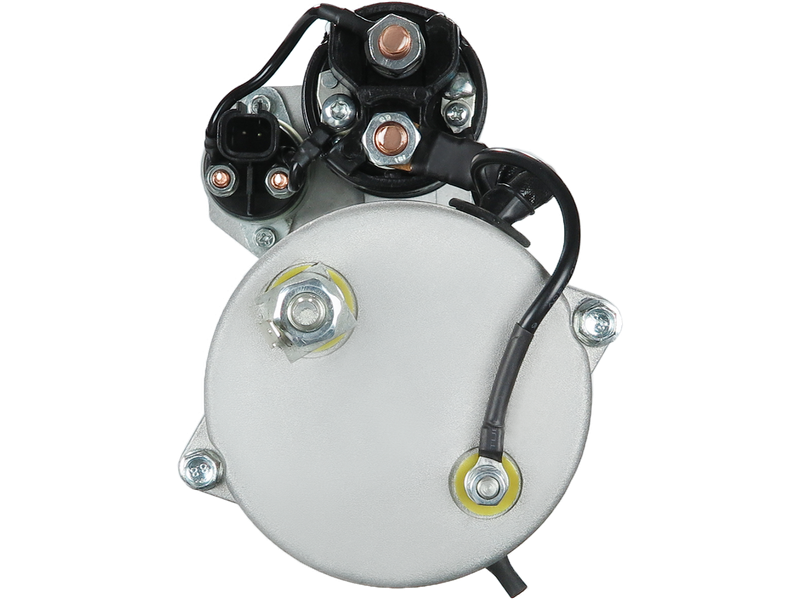

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 809.84 including GST
NZ$ 704.21 excluding GST
or four payments of $202.46
with
Learn More
each
S9357S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
11.131.872Associated Numbers
01183039 01183697 11.131.872 182-30173 6021633 AZG4681 CST21633 CST21633AS CST21633ES CST21633GS CST21633OS CST21633RS IS1210 STI4119 UD16548SSpecifications

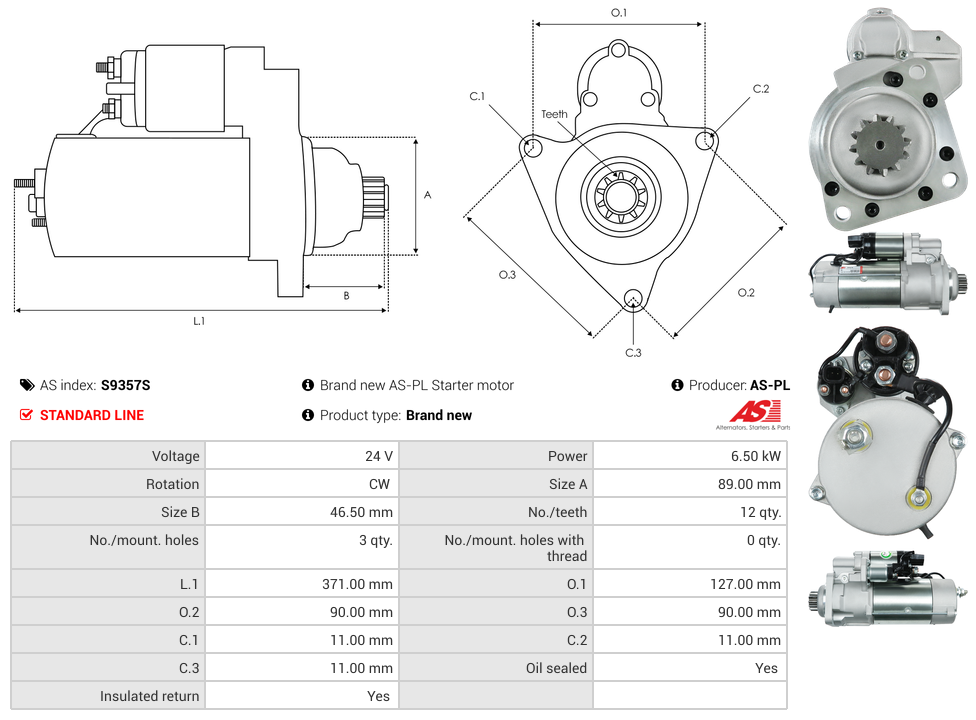

| Insulated Earth | Yes |
| Kilowatt | 6.50 kW |
| Length (L.1) | 371 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 46.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DEUTZ | Engine 15.9 | [F10L413FW] |
Reference Information
| 01183039 | KHD |
| 01183697 | KHD |
| 01184131 | DEUTZ |
| 11.131.872 | ISKRA / LETRIKA |
| 1184131 | DEUTZ |
| 182-30173 | ROBERT'S |
| 6021633 | SANDO |
| AZG4681 | ISKRA / LETRIKA |
| CST21633 | CASCO |
| CST21633AS | CASCO |
| CST21633ES | CASCO |
| CST21633GS | CASCO |
| CST21633OS | CASCO |
| CST21633RS | CASCO |
| IS1210 | ISKRA / LETRIKA |
| MAHMS73 | WOODAUTO |
| MS 73 | MAHLE |
| S9357S | AS-PL |
| STI4119 | KRAUF |
| STR79211 | ELECTROLOG |
| UD16548S | AS-PL |
Video/Publications
