Brand new AS-PL Starter motor D.E. bracket
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 76.30 including GST
NZ$ 66.35 excluding GST
or four payments of $19.08
with
Learn More
each
SBR4004
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
63216731 63216800 63216825 63216826 63216827 63216831 63217121 63217125 63217126 63217201 63217225 63217226 MT62BA MT67AA MT67AD MT68A MT68AA MT68AB MT68AC MT68AD MT71A MT71AA MT71AB MT71Z MT72A MT72AA MT72AB 063207153000 063216731000 063216831000 063217126000 063217226000 063296847000 063296848000 063296851000 63216731 63216800 63216825 63216826 63216827 63216831 63217121 63217125 63217126 63217201 63217225 63217226 MT62BA MT67AA MT67AD MT68A MT68AA MT68AB MT68AC MT68AD MT71A MT71AA MT71AB MT71Z MT72A MT72AA MT72AB 063207153000 063216731000 063216831000 063217126000 063217226000 063296847000 063296848000 063296851000Specifications

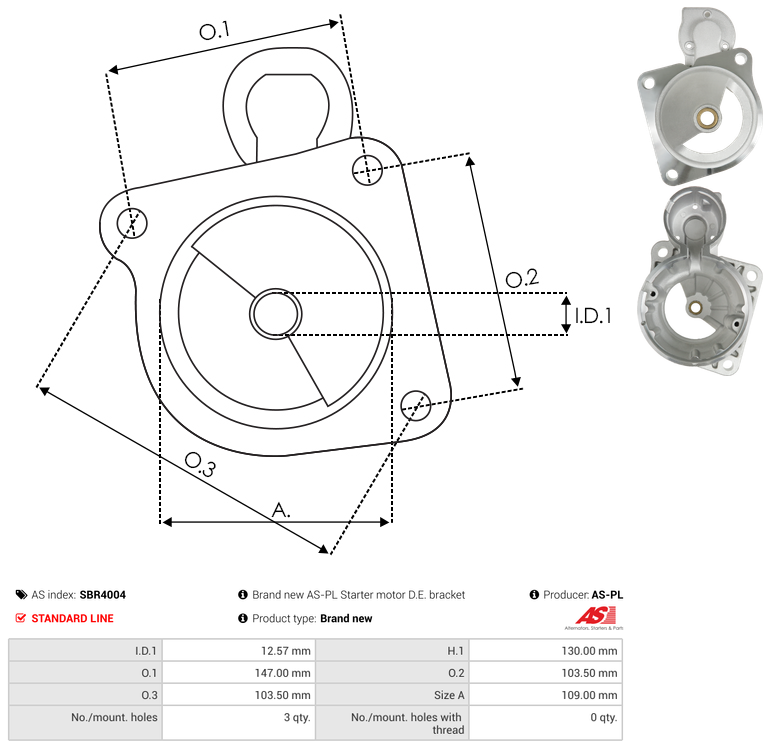

| Height (H.1) | 130 mm |
| Inside Diameter (I.D.1) | 12.57 mm |
| Mount Hole Center - Center (O.1) | 147 mm |
| Mount Hole Center - Center (O.2) | 103.50 mm |
| Mount Hole Center - Center (O.3) | 103.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| OEM Product | No |
| Product Line | Standard Line |
| Product Type | Brand new |
| Spigot Diameter (A) | 109 mm |
| Type | Drive End |
| Unit Type | MAGNETI MARELLI |
Reference Information
| 1017407 | POWERMAX |
| 136203 | CARGO |
| 137032 | CARGO |
| 72030320 | MAGNETI MARELLI |
| 72030346 | MAGNETI MARELLI |
| 72143101 | MAGNETI MARELLI |
| 72143103 | MAGNETI MARELLI |
| 72143104 | MAGNETI MARELLI |
| 72143105 | MAGNETI MARELLI |
| 72143106 | MAGNETI MARELLI |
| 72143107 | MAGNETI MARELLI |
| 72362307 | MAGNETI MARELLI |
| 72362308 | MAGNETI MARELLI |
| BDES9002 | ELECTROLOG |
| BKT40959 | WOODAUTO |
| F032136203 | CARGO |
| F032137032 | CARGO |
Video/Publications
063207153000 063216731000 063216831000 063217126000 063217226000 063296847000 063296848000 063296851000 63216731 63216800 63216825 63216826 63216827 63216831 63217121 63217125 63217126 63217201 63217225 63217226 MT62BA MT67AA MT67AD MT68A MT68AA MT68AB MT68AC MT68AD MT71A MT71AA MT71AB MT71Z MT72A MT72AA MT72AB S4021 S4026View your shopping basket or Browse other items in Starter Bracket.
