Associated Numbers
M2T78072 S5048 M2T78071 M002T78071 M002T78072 M2T78072 S5048 M2T78071 M002T78071 M002T78072Specifications

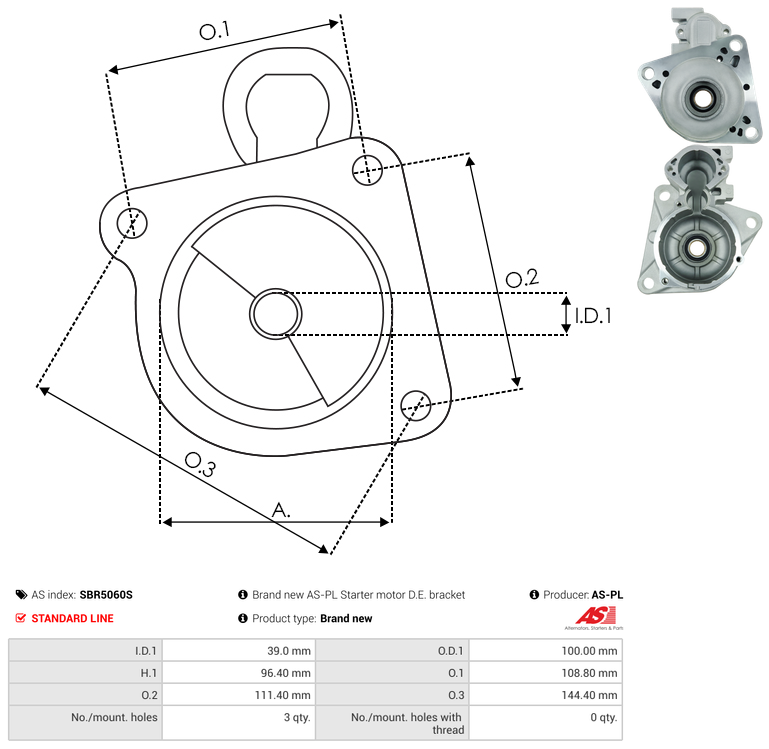

Height (H.1) | 96.4 mm |
Inside Diameter (I.D.1) | 39 mm |
Mount Hole Center - Center (O.1) | 108.8 mm |
Mount Hole Center - Center (O.2) | 111.4 mm |
Mount Hole Center - Center (O.3) | 144.4 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
Outside Diameter (O.D.1) | 100 mm |
Type | Drive End |
Unit Type | MITSUBISHI |
Reference Information
S5A124710B SBM3286 SEA118X00A SEA118X00B BDES5009 M641X68673 M641X68674 SE4524710 M641X68672 SEA118X00 S5A118X00 UD45747SBR S51524710A SLTP18X00 S5A124710 SE4518X00 S5A124710A TF3518X00Video/Publications
S5A124710B SBM3286 SEA118X00A SEA118X00B M641X68673 M641X68674 M002T78071 SE4524710 M002T78072 M641X68672 SEA118X00 M2T78071 M2T78072 S5A118X00 UD45747SBR S51524710A S5048 SLTP18X00 S5A124710 SE4518X00 S5A124710A TF3518X00Add Your Number
Contact Details
Request More Information
Add your number to the message box below and we will add it to our system
View your shopping basket or Browse other items in Starter Bracket.
