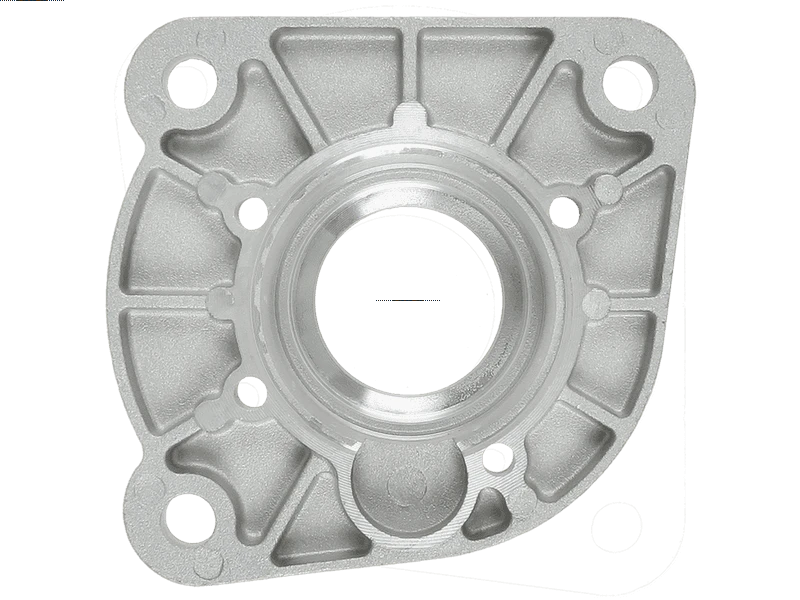

Brand new AS-PL Starter motor D.E. bracket
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 40.12 including GST
NZ$ 34.89 excluding GST
or four payments of $10.03
with
Learn More
each
SBR9010
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers

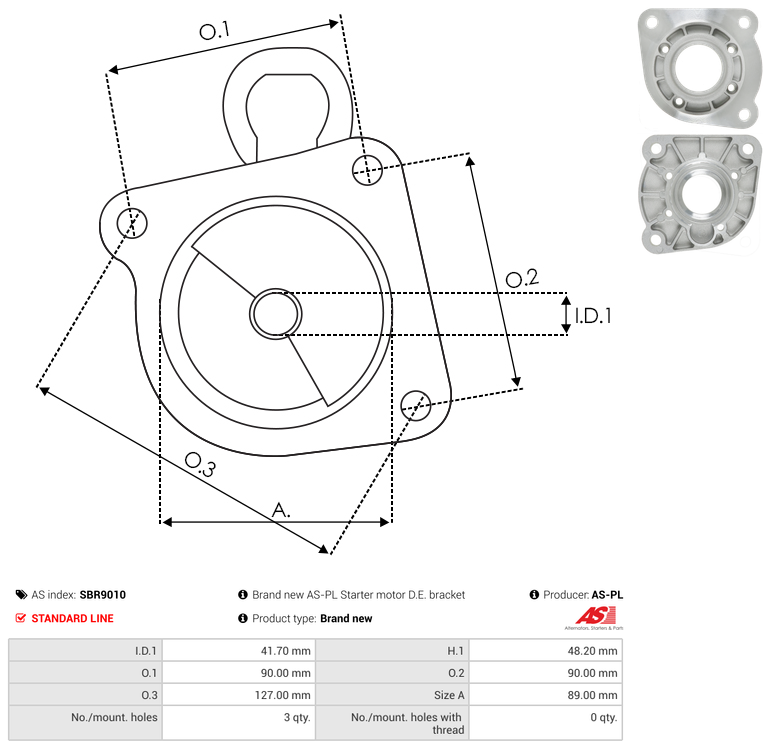

9142744 9142744Specifications
| Height (H.1) | 48.20 mm |
| Inside Diameter (I.D.1) | 41.70 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| OEM Product | No |
| Product Line | Standard Line |
| Product Type | Brand new |
| Spigot Diameter (A) | 89 mm |
| Type | Drive End |
| Unit Type | MAGNETON |
Reference Information
| UD01703SBR | AS-PL |
