Associated Numbers
3M5T11000DC S9033 6G9N11000FA 3M5T11000DC S9033 6G9N11000FASpecifications

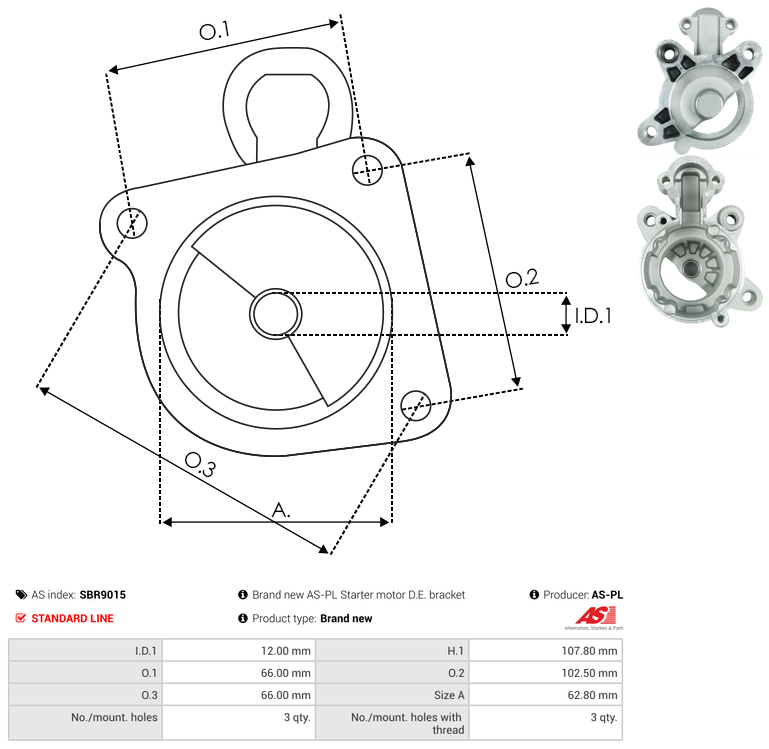

Height (H.1) | 107.8 mm |
Inside Diameter (I.D.1) | 12 mm |
Mount Hole Center - Center (O.1) | 66 mm |
Mount Hole Center - Center (O.2) | 102.5 mm |
Mount Hole Center - Center (O.3) | 66 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 3 qty |
Spigot Diameter (A) | 62.8 mm |
Type | Drive End |
Unit Type | FORD |
Reference Information
UD41395SBRVideo/Publications
UD41395SBR S9033 3M5T11000DC 6G9N11000FAAdd Your Number
