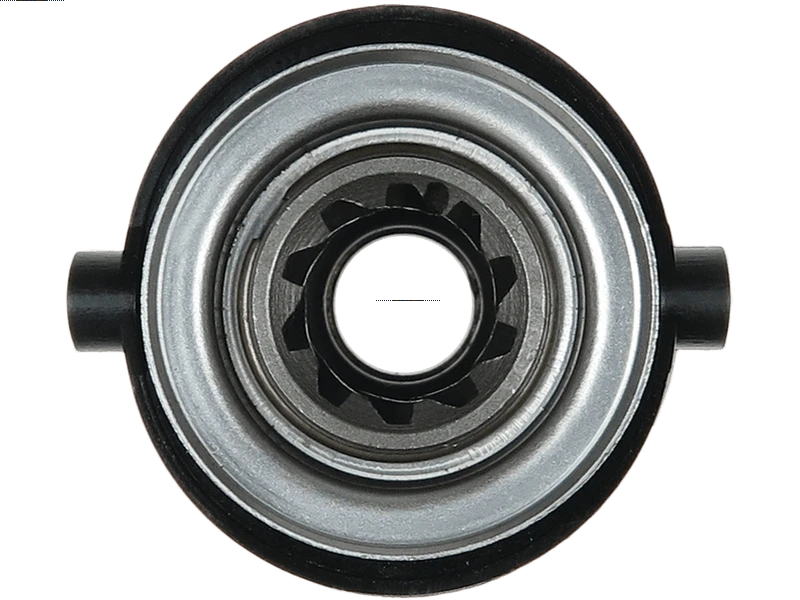

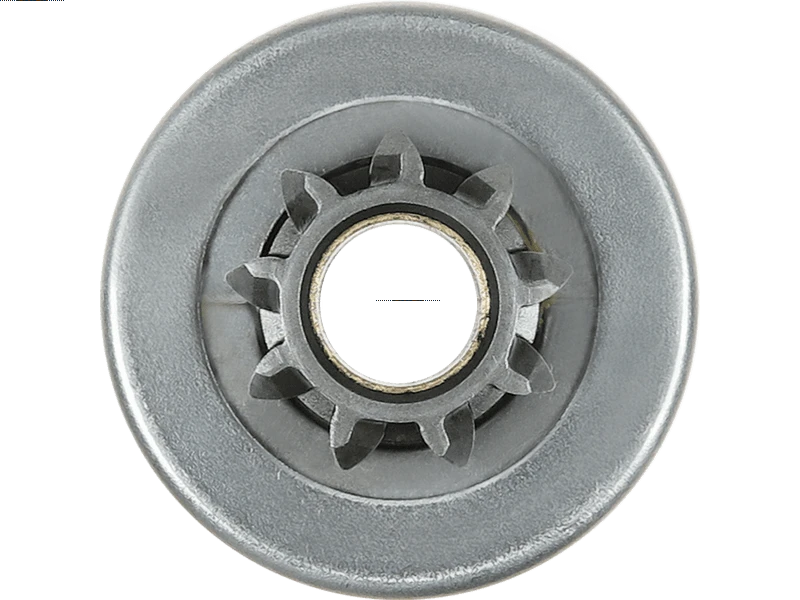

Brand new AS-PL Starter motor drive
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 29.27 including GST
NZ$ 25.45 excluding GST
each
SD0071P
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001107037 0001107048 0001107054 0001107055 0001107067 0001107068 0001107069 0001107072 0001107073 0001107074 0001107076 0001107094 0001107095 0001107096 0001107105 0001107106 0001108162 0001108166 0001108167 0001108172 0001108173 0001108174 0001108175 0001108178 0001108188 0001108189 0001108199 0001108200 0001108202 0001108204 0001108220 0001108221 0001109018 0001109064 0001109065 0001115002 0001115007 0001115012 0001115015 0001115020 0001115024 0001115039 0001107037 0001107048 0001107054 0001107055 0001107067 0001107068 0001107069 0001107072 0001107073 0001107074 0001107076 0001107094 0001107095 0001107096 0001107105 0001107106 0001108162 0001108166 0001108167 0001108172 0001108173 0001108174 0001108175 0001108178 0001108188 0001108189 0001108199 0001108200 0001108202 0001108204 0001108220 0001108221 0001109018 0001109064 0001109065 0001115002 0001115007 0001115012 0001115015 0001115020 0001115024 0001115039Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 51.3 mm |
| Length (L.2) | 14 mm |
| No./Splines | 10 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 46.1 mm |
| Outside Diameter (O.D.2) | 25.6 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | BOSCH |
Reference Information
| 058911335 | VW |
| 0925 | ZEN |
| 1006209618 | BOSCH |
| 1006209638 | BOSCH |
| 1006209667 | BOSCH |
| 1006209672 | BOSCH |
| 1006209677 | BOSCH |
| 1006209690 | BOSCH |
| 1006209787 | BOSCH |
| 1006209815 | BOSCH |
| 1006209937 | BOSCH |
| 1.01.0925.0 | ZEN |
| 1017259 | POWERMAX |
| 11-618 | STEMOT |
| 137481 | CARGO |
| 137481Z | CARGO |
| 1989 | GHIBAUDI |
| 225418 | ERA |
| 333178 | CARGO |
| 4.5021.1 | IKA |
| 52-42-30 | VISNOVA |
| 5460-1003 | DIXIE |
| 54-9195 | WAI / TRANSPO |
| 54-9195-1 | WAI / TRANSPO |
| 54-9195-ZEN | WAI / TRANSPO |
| 61-15-6590 | WILSON |
| 81017259 | POWERMAX |
| 90543728 | OPEL |
| 940113020301 | MAGNETI MARELLI |
| 940113170301 | MAGNETI MARELLI |
| 9947831 | FIAT |
| DRV1134 | ELECTROLOG |
| F032137481 | CARGO |
| F032333178 | CARGO |
| SDB1481 | KRAUF |
| SDB8481 | KRAUF |
| SDB9481 | KRAUF |
| SDV38158 | WOODAUTO |
| UD15566SD | AS-PL |
| ZN0925 | ZEN |
Video/Publications
0001107105 0001107048 0001107069 0001107068 0001107067 0001108178 0001108199 0001108175 0001108174 0001108173 0001108172 0001115007 0001115012 0001109018 0001108204 0001107037 0001108202 0001108167 0001108189 0001108200 0001107055 0001108166 0001108188 0001108221 0001107054 0001107076 0001108220 0001107074 0001107096 0001107073 0001107095 0001108162 0001107072 0001107094 SD0071P 0001115015 0001115039 0001115002 0001115024 0001109064 0001109065 0001115020 0001107106View your shopping basket or Browse other items in Drives, Pinions and Clutches.
