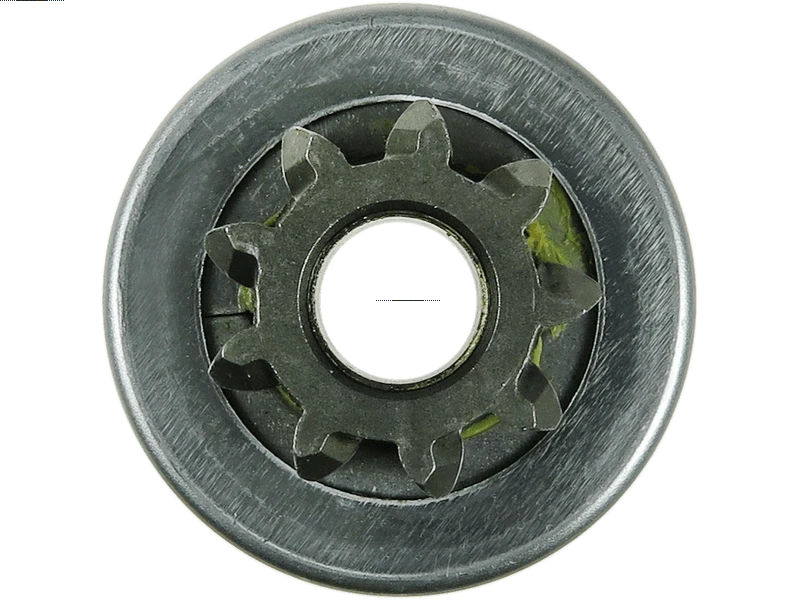

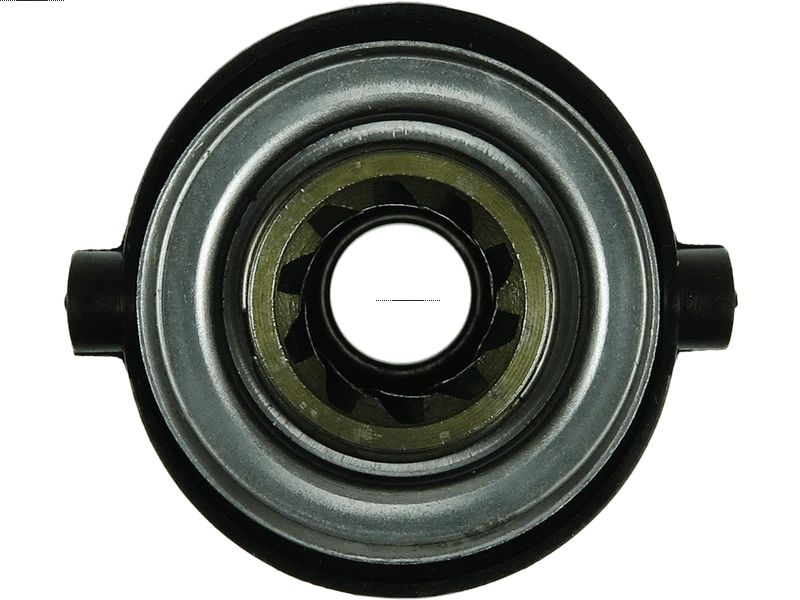

Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 38.64 including GST
NZ$ 33.60 excluding GST
or four payments of $9.66
with
Learn More
each
SD0073S
No stock in NZ currently
No stock in NZ currently
Associated Numbers
0001107062 0001108157 0001108169 0001108190 0001108196 0001108224 0001108230 0001108231 0001108234 0001108235 0001109204 0001115021 0001115025 0001115040 0001115041 0001115045 0001115046 0001138001 0001138002 0001108202 0001107062 0001108157 0001108169 0001108190 0001108196 0001108224 0001108230 0001108231 0001108234 0001108235 0001109204 0001115021 0001115025 0001115040 0001115041 0001115045 0001115046 0001138001 0001138002 0001108202Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 51.20 mm |
| Length (L.2) | 15.20 mm |
| No./Splines | 10 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 46 mm |
| Outside Diameter (O.D.2) | 29.60 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | BOSCH |
Reference Information
| 1006209634 | BOSCH |
| 1006209660 | BOSCH |
| 1006209779 | BOSCH |
| 1006209792 | BOSCH |
| 1006209983 | BOSCH |
| 1006209995 | BOSCH |
| 1006210134 | BOSCH |
| 1006210144 | BOSCH |
| 1006210224 | BOSCH |
| 1.01.0997.0 | ZEN |
| 1017038 | POWERMAX |
| 11-779 | STEMOT |
| 137888 | CARGO |
| 2149 | GHIBAUDI |
| 225462 | ERA |
| 234902 | CARGO |
| 52-42-36 | VISNOVA |
| 54-91101 | WAI / TRANSPO |
| 54-91101-1 | WAI / TRANSPO |
| CQ2010034 | CQ |
| DRV1123 | ELECTROLOG |
| SD-2124 | UNIPOINT |
| SDB1788 | KRAUF |
| SDB9788 | KRAUF |
| SDV38132 | WOODAUTO |
| UD03252SD | AS-PL |
Video/Publications
0001107062 0001108157 0001108169 0001108190 0001108196 0001108202 0001108224 0001108230 0001108231 0001108234 0001108235 0001109204 0001115021 0001115025 0001115040 0001115041 0001115045 0001115046 0001138001 0001138002View your shopping basket or Browse other items in Drives, Pinions and Clutches.
