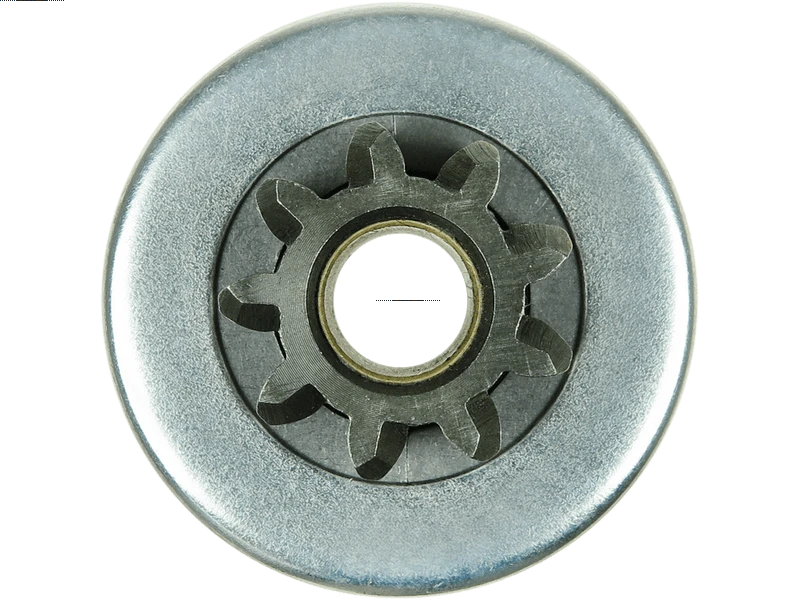

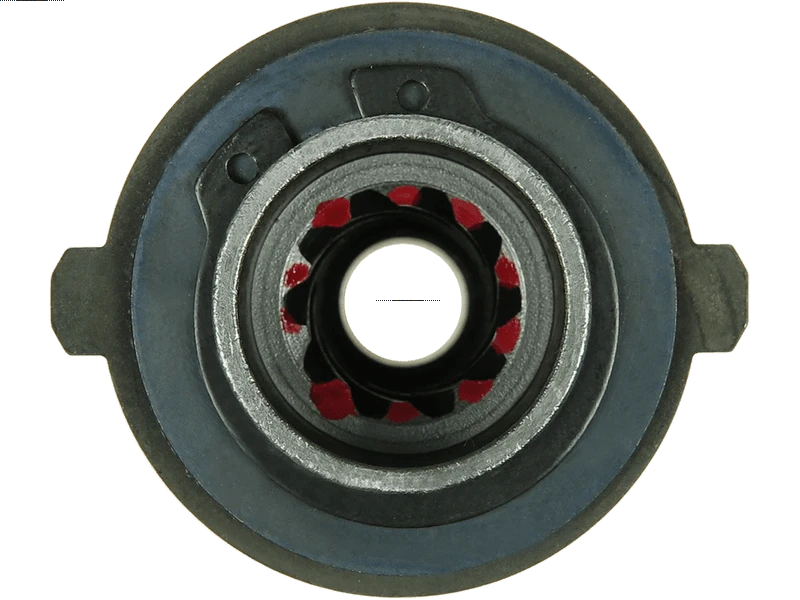

Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 37.26 including GST
NZ$ 32.40 excluding GST
UOM:
each
Product Code:
SD4021
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
063222035010 063222204010 63222035 63222040 63222204 63229035 63292035 063222035010 063222204010 63222035 63222040 63222204 63229035 63292035Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 61.70 mm |
| Length (L.2) | 16 mm |
| No./Splines | 10 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52.50 mm |
| Outside Diameter (O.D.2) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | MAGNETI MARELLI |
Reference Information
| 085540681010 | LUCAS |
| 1.01.1477.0 | ZEN |
| 1011640 | POWERMAX |
| 135117 | CARGO |
| 1889 | GHIBAUDI |
| 21-41-16 | VISNOVA |
| 225631 | ERA |
| 54-9304-1 | WAI / TRANSPO |
| 85540681 | MAGNETI MARELLI |
| 9946913 | FIAT |
| AM-42725 | AUTO MAGNETO |
| CQ2010701 | CQ |
| DRV4189 | ELECTROLOG |
| F032135117 | CARGO |
| SDL5117 | KRAUF |
| SDV37045 | WOODAUTO |
