Brand new AS-PL Starter motor yoke with magnets
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 43.73 including GST
NZ$ 38.03 excluding GST
UOM:
each
Product Code:
SF0047
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001107423 S0242 0001107401 0001107407 0001107417 0001107425 0001107431 0001107437 0001107443 0001107478 0001107402 0001107408 0001107418 0001107426 0001107432 0001107438 0001107446 0001107479 0001107403 0001107409 0001107421 0001107427 0001107433 0001107439 0001107447 0001107493 0001107404 0001107410 0001107422 0001107428 0001107434 0001107440 0001107448 0001107406 0001107415 0001107424 0001107430 0001107436 0001107442 0001107456 0001107405 0001107411 0001107429 0001107435 0001107441 0001107449 S0244 0001121412 0001107508 0001120406 0001120410 0001121402 0001121408 S0100 S0088 S0494 S0088PRSpecifications

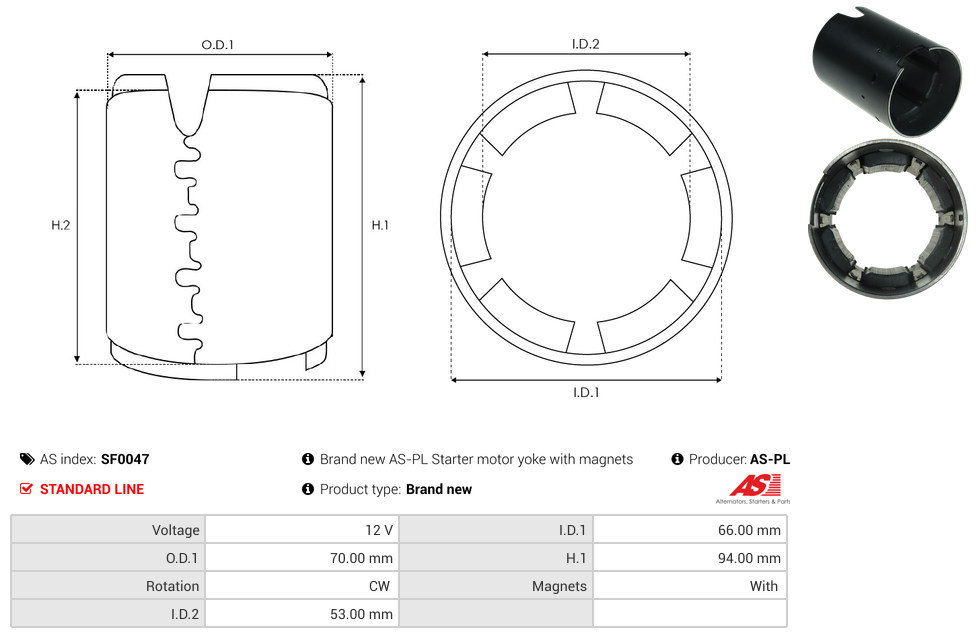

| Brush gear: | w/o |
| Height (H.1) | 94 mm |
| Inside Diameter (I.D.1) | 66 mm |
| Magnets | With |
| OEM Product | No |
| Outside Diameter (O.D.1) | 70 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Magnet Housing |
| Unit Type | BOSCH |
| Voltage | 12 V |
| 53 |
Reference Information
| 03G911115B | VW |
| 06B911115 | VW |
| 1005001812 | BOSCH |
| 1005001999 | BOSCH |
| 1017112 | POWERMAX |
| 233572 | CARGO |
| 28120OD130 | TOYOTA |
| 81017112 | POWERMAX |
| 9949613 | FIAT |
| BOS1005001999 | WOODAUTO |
| F032233572 | CARGO |
| FCS1087Y | ELECTROLOG |
| SFB3572 | KRAUF |
| UD41049SF | AS-PL |
Video/Publications
0001107424 0001107423 0001107422 0001107421 S0501S 0001107461 S0508 0001121408 0001107418 S0275 0001107417 S0884(SEG) 0001107415 0001107459 S0584(SEG) 0001121402 0001107456 S0681S 0001107411 S0171(SEG) 0001107495 S0501(SEG) 0001107493 S0494(SEG) S0227 0001107409 0001107408 0001107407 0001107406 S0100 S0584 S0884S 0001107405 0001107449 0001107404 0001107448 S0102 0001107525 0001107403 0001107447 0001107402 0001107446 0001107401 0001107522 0001107443 0001107442 S0290 0001107441 0001107440 S0171 S0490 S0508(SEG) S0572(SEG) S0379 S0088PR S0295 S0494 S0572 S0451 0001107439 0001107438 0001107437 0001107436 0001107435 0001107479 0001107434 0001107478 0001107433 0001107432 0001107431 S0121(SEG) 0001107430 S0490(SEG) S0290(SEG) S0529 0001107429 S0088 S0121 S0242 0001107428 0001107427 S0244 S01122(SEG) 0001107426 0001107425View your shopping basket or Browse other items in Starter Fields/ Magnet housings.
