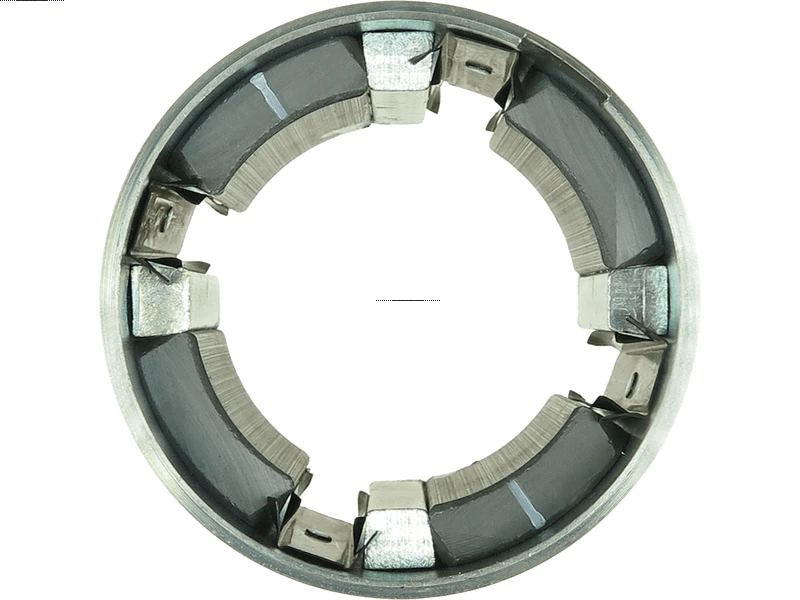

Brand new AS-PL Starter motor yoke with magnets
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 42.85 including GST
NZ$ 37.26 excluding GST
or four payments of $10.71
with
Learn More
each
SF1015S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
S1045 8000032 8000598 8000773 9000786 9000798 9000819 9000820 9000821 9000822 9000835 9000850 9000860 9000885 9000936 9000952 96843574Specifications

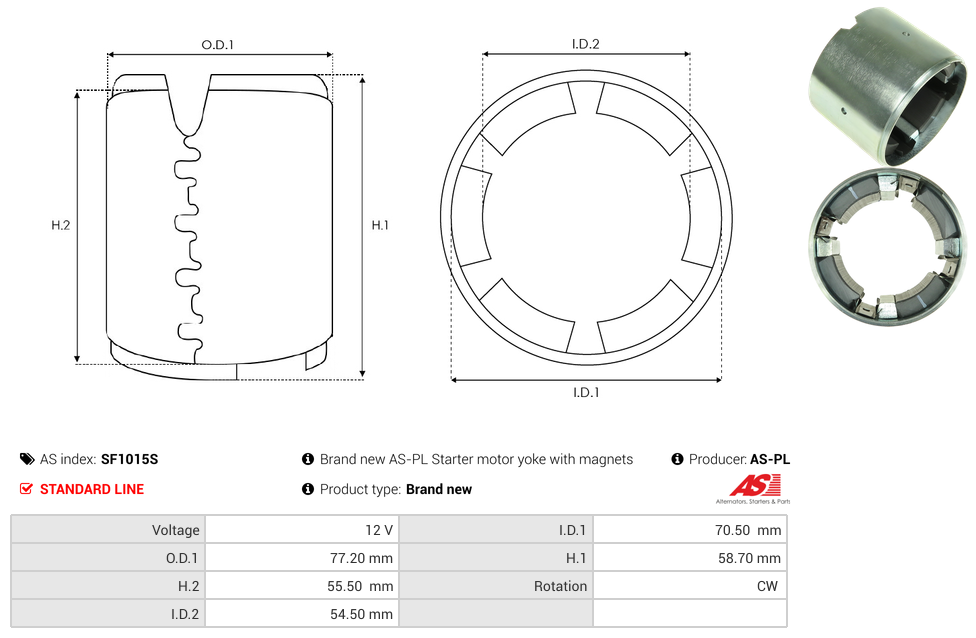

| Height (H.1) | 58.70 mm |
| Height (H.2) | 55.50 mm |
| Inside Diameter (I.D.1) | 70.50 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 77.20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Magnet Housing |
| Unit Type | DELCO |
| Voltage | 12 V |
| 54.50 |
Reference Information
| SFD1328 | KRAUF |
| UD43388SF | AS-PL |
