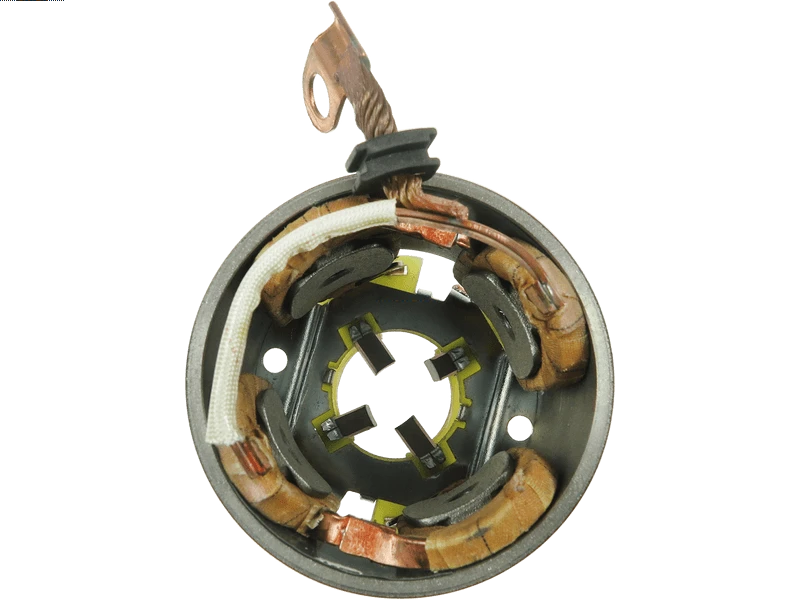

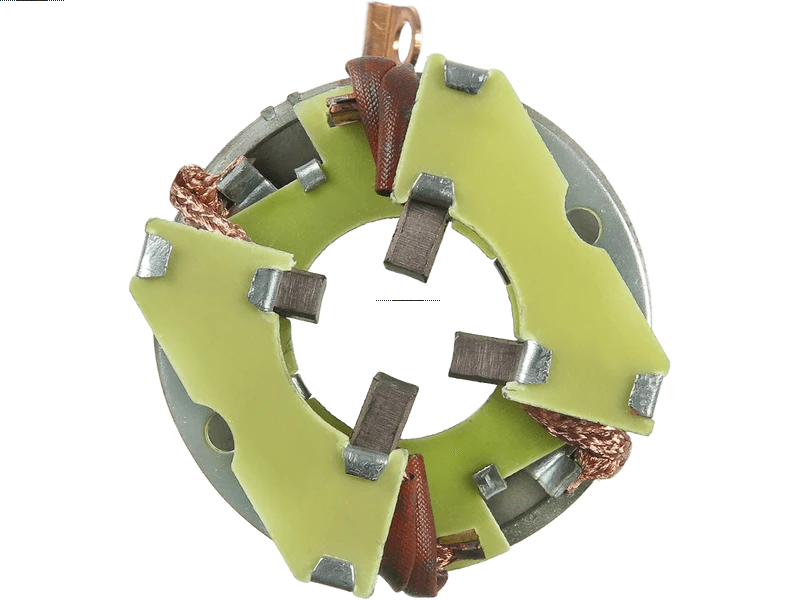

Brand new AS-PL Starter motor yoke with field coil and brush
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 144.29 including GST
NZ$ 125.47 excluding GST
or four payments of $36.07
with
Learn More
each
SF9014S
No stock in NZ currently
No stock in NZ currently
Associated Numbers
S9024 9142722 S9016 123708003Specifications
| Brush Holder Width (G.1) | 7.80 mm |
| Height (H.1) | 34 mm |
| Height (H.2) | 18.40 mm |
| Inside Diameter (I.D.1) | 38.80 mm |
| Matching Brush set: | SB9006 |
| OEM Product | No |
| Outside Diameter (O.D.1) | 90.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | With Brush Holder |
| Unit Type | MAGNETON |
Reference Information
| SF9014S | AS-PL |
Video/Publications
S9024 S9046 123708007 S9048 S9049 S9021 S9043 S9044 S9045 S9060 9142720 9142742 9142764 123708003 9142780 S9037 S9016 S9056 S9051 S9052 9142802 443115144723 9142805 9142743 9142765 9142700 9142722 9142602 9142745 9142801 S9018View your shopping basket or Browse other items in Starter Fields/ Magnet housings.
