Associated Numbers
0001177001 0001177008 0001177010 0001177011 0001177000 0001177002 0001177004 0001177012 0001179502 0001179516 0001177001 0001177008 0001177010 0001177011 0001177000 0001177002 0001177004 0001177012 0001179502 0001179516Specifications

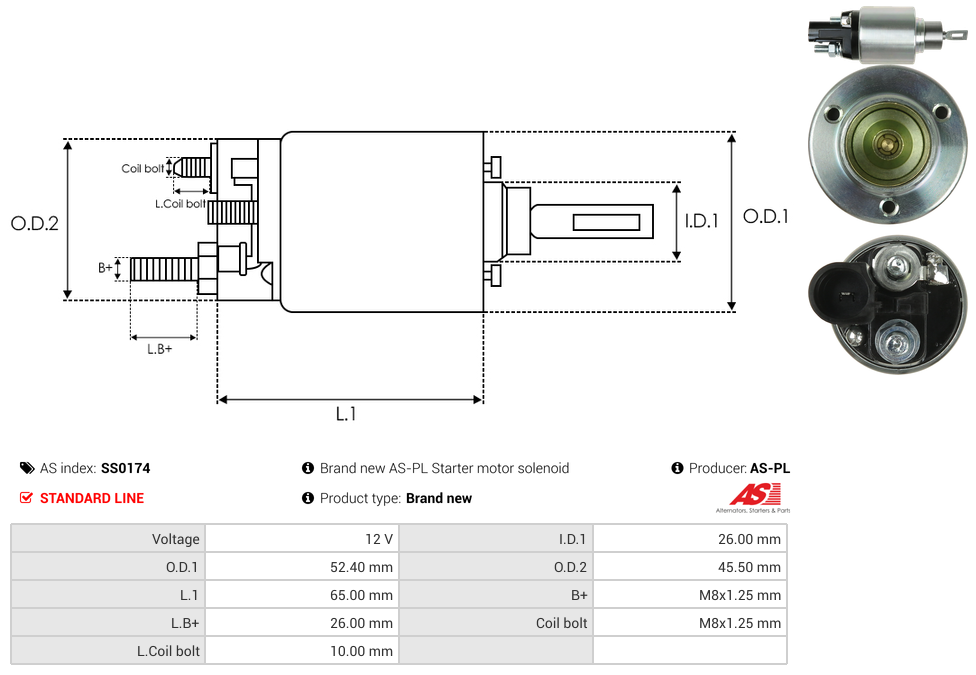

| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 6.5 mm |
| Inside Diameter (I.D.1) | 26 mm |
| L.B+ | 26 mm |
| Length (L.1) | 65 mm |
| Outside Diameter (O.D.1) | 52.4 mm |
| Outside Diameter (O.D.2) | 45.5 mm |
| Type | Solenoid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
054.000.764.010 1986SE1924 UD02495SS SSB5212 66-91247 66-91269 UD02491SS 054.000.764.016 SOL1177 02M911287F 054.000.764.280 02M911287G 02M911287J 2339305329 335097 335361 054.001.341.010 81018496 2339305211 E9065 SSB7001 2339305212Video/Publications
1177010 0001177011 UD02495SS 0001177012 0001179514 S0622S UD02491SS 0001179512 1179516 0001179518 0001179516 0001139018 1177012 1177011 0001177002 0001179500 054.000.764.010 0001177000 0001177001 0001179504 0001179503 0001177004 0001179502 0001177008 0001179505 2339305329 335097 0001177010 E9065 0001179530 66-91247 0001174605 2339305211 0001179522 1179502 0001179602 0001179523 0001138019 02M911287F 0001179604 02M911287J 0001179608 1177008 1177004 1177002 1177001 SSB7001 S0488 1177000Add Your Number
