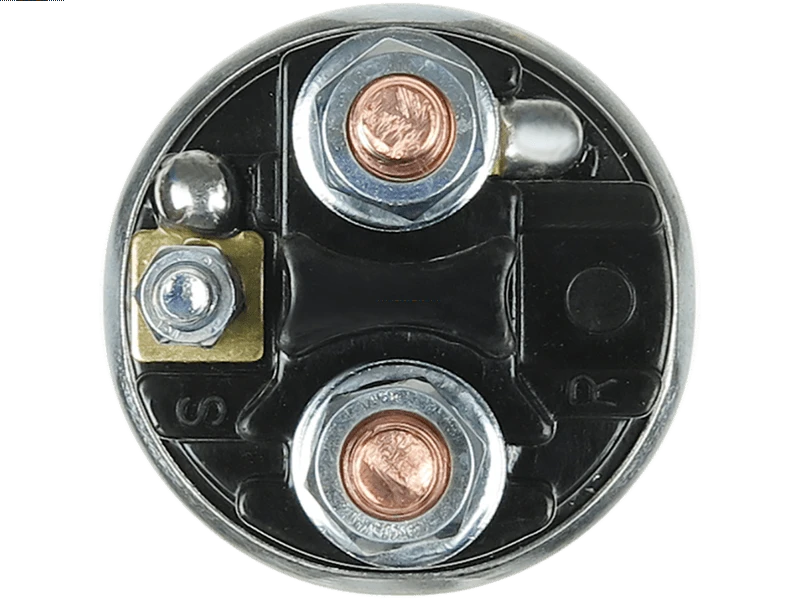

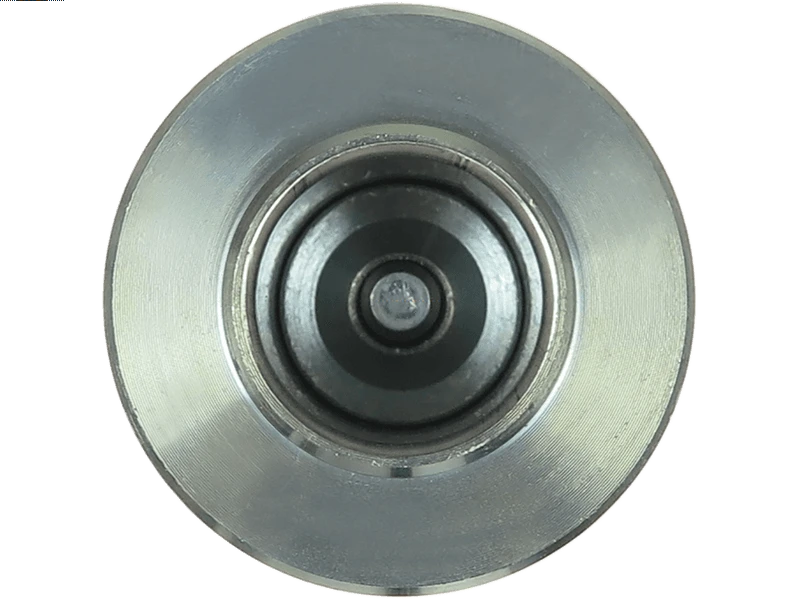

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 59.86 including GST
NZ$ 52.05 excluding GST
or four payments of $14.97
with
Learn More
each
SS1007
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
09000756 10455010 10455011 10455012 10455013 10455025 10455026 10455042 10455047 10455048 10455050 10455051 10455053 10455054 10455060 10455061 10455070 10455076 21020892 21020893 21021366 21021648 9000700 9000719 9000735 9000751 9000756 9000758 9000762 9000763 9000772 9000773 9000775 9000776 9000785 9000789 9000791 9000796 9000797 9000802 X16478 S1002 09000756 10455010 10455011 10455012 10455013 10455025 10455026 10455042 10455047 10455048 10455050 10455051 10455053 10455054 10455060 10455061 10455070 10455076 21020892 21020893 21021366 21021648 9000700 9000719 9000735 9000751 9000756 9000758 9000762 9000763 9000772 9000773 9000775 9000776 9000785 9000789 9000791 9000796 9000797 9000802 X16478 S1002Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 15.20 mm |
| Inside Diameter (I.D.1) | 24.20 mm |
| L.B+ | 17.80 mm |
| Length (L.1) | 75.40 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 51.50 mm |
| Outside Diameter (O.D.2) | 44.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | DELCO |
| Voltage | 12 V |
Reference Information
| 1015681 | POWERMAX |
| 10467421 | DELCO |
| 10468962 | DELCO |
| 10497275 | DELCO |
| 1114582 | DELCO |
| 227377 | ERA |
| 227821 | ERA |
| 227822 | ERA |
| 66-131 | WAI / TRANSPO |
| 66-131-1 | WAI / TRANSPO |
| CQ2030491 | CQ |
| D922A | DELCO |
| D936A | DELCO |
| SND12136 | WOODAUTO |
| SNLS-170 | UNIPOINT |
| SOL2002 | ELECTROLOG |
| SSD2944 | KRAUF |
| ZM861 | ZM |
Video/Publications
09000756 10455010 10455011 10455012 10455013 10455025 10455026 10455042 10455047 10455048 10455050 10455051 10455053 10455054 10455060 10455061 10455070 10455076 21020892 21020893 21021366 21021648 9000700 9000719 9000735 9000751 9000756 9000758 9000762 9000763 9000772 9000773 9000775 9000776 9000785 9000789 9000791 9000796 9000797 9000802 S1002 X16478View your shopping basket or Browse other items in Starter Solenoid.
