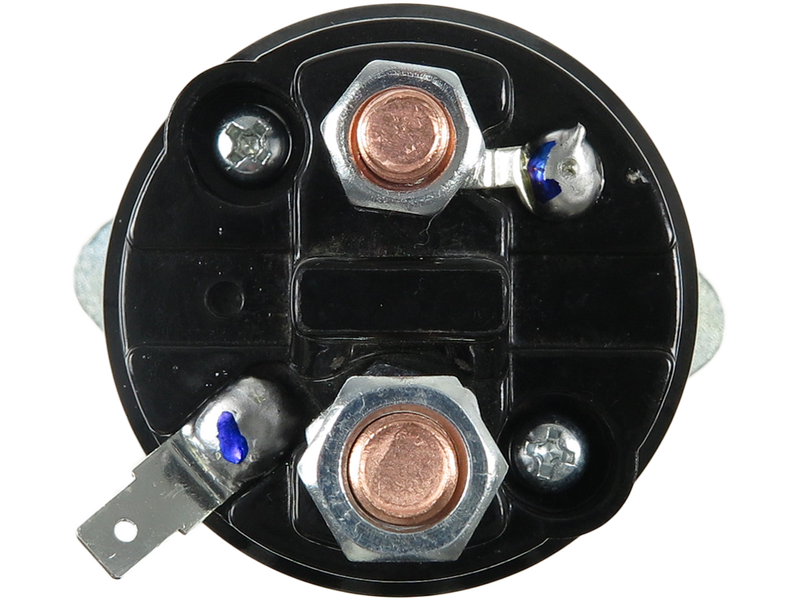

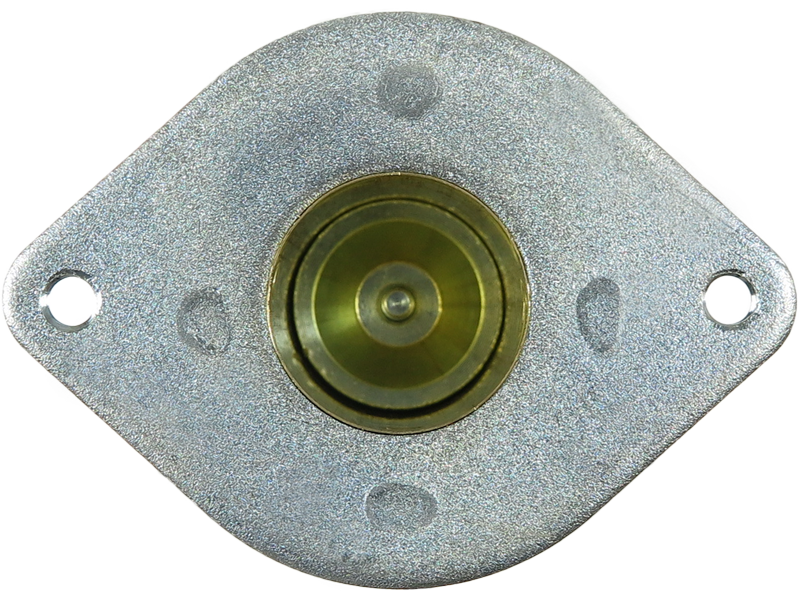

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 75.92 including GST
NZ$ 66.02 excluding GST
or four payments of $18.98
with
Learn More
each
SS4031
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
835FX11000BB 24534 26390 26390A 26390B 26390E 26394 26394A 26394D 27430 27430A 27430B 27440 27440A 27440B 27501 27501A 27501B 27501E 27505 27505A 27505D 27508 27508A 27508B 27508D 27534A 27534B 27542 27542A 27542D 27546 27546A 27546B 27556 27556A 27560 27560A 27560B 27567 27577 61924011 61924015 61924017 61924027 61924033 61924034 61924060 61924066Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 19.70 mm |
| Inside Diameter (I.D.1) | 26.20 mm |
| L.B+ | 20 mm |
| Length (L.1) | 84.70 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 54 mm |
| Outside Diameter (O.D.2) | 58.80 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | LUCAS |
| Voltage | 12 V |
Reference Information
| 054.000.580.106 | PSH |
| 054.000.580.590 | PSH |
| 1010748 | POWERMAX |
| 131785 | CARGO |
| 20305401BN | REAL |
| 20305401OE | REAL |
| 227558 | ERA |
| 4.6292.9 | IKA |
| 616 | ZM |
| 66-9205 | WAI / TRANSPO |
| 66-9205-1 | WAI / TRANSPO |
| 76994 | LUCAS |
| 77036 | LUCAS |
| 77140 | LUCAS |
| 77147 | LUCAS |
| 77149 | LUCAS |
| 77173 | LUCAS |
| 81010748 | POWERMAX |
| 940113050163 | MAGNETI MARELLI |
| AME0163 | MAGNETI MARELLI |
| AME0409 | MAGNETI MARELLI |
| CQ2030686 | LAUBER |
| CSO25104AS | CASCO |
| CSO25104GS | CASCO |
| E7515 | GHIBAUDI |
| ELE0095 | 3EFFE |
| F032131785 | CARGO |
| SND1419 | WOODAUTO |
| SOL4159 | ELECTROLOG |
| SSL0004 | LUCAS |
| SSL1785 | KRAUF |
| SSO25104.0 | SANDO |
| SSO25104.1 | SANDO |
| TOB182 | LUCAS |
| TPB117 | LUCAS |
| TPB120 | LUCAS |
| TPB121 | LUCAS |
| TPB133 | LUCAS |
| UD02990SS | AS-PL |
| WOOSND1419 | WOODAUTO |
| ZM616 | ZM |
Video/Publications
24534 26390 26390A 26390B 26390E 26394 26394A 26394D 27430 27430A 27430B 27440 27440A 27440B 27501 27501A 27501B 27501E 27505 27505A 27505D 27508 27508A 27508B 27508D 27534A 27534B 27542 27542A 27542D 27546 27546A 27546B 27556 27556A 27560 27560A 27560B 27567 27577 61924011 61924015 61924017 61924027 61924033 61924034 61924060 61924066 835FX11000BBView your shopping basket or Browse other items in Starter Solenoid.
