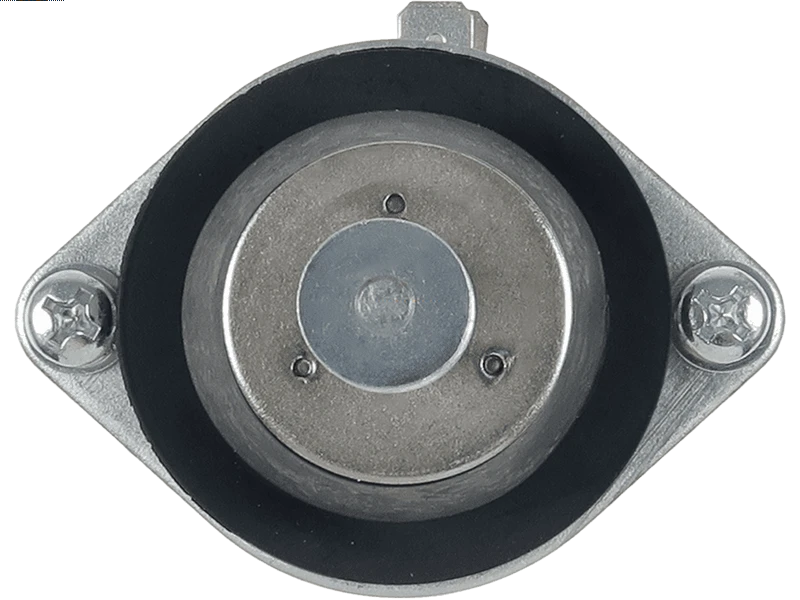

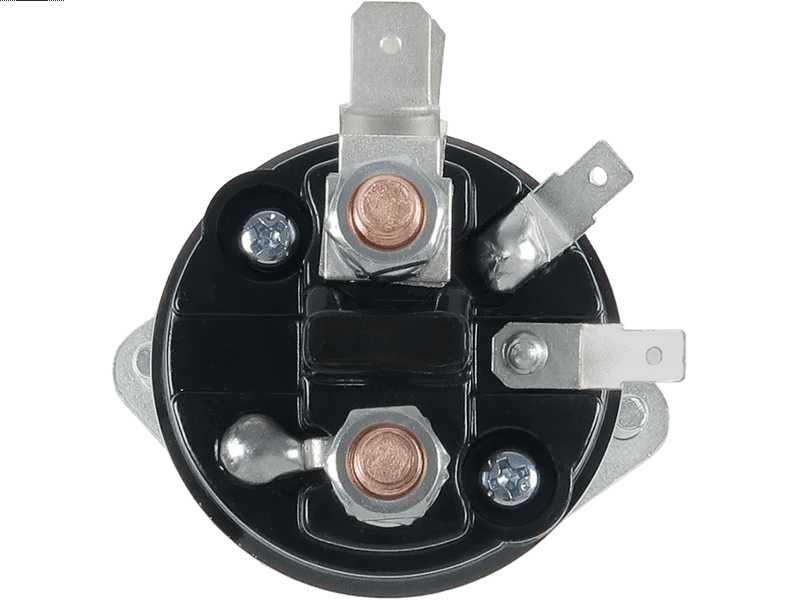

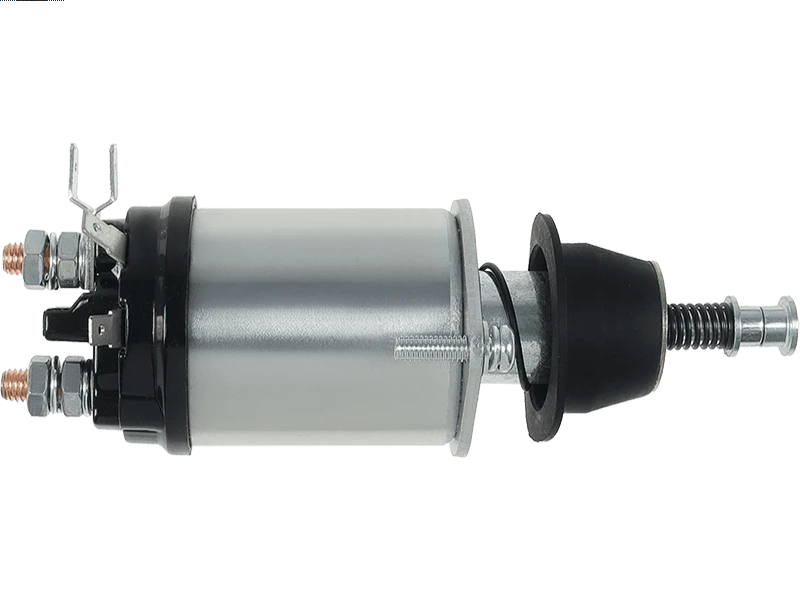

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 77.89 including GST
NZ$ 67.73 excluding GST
or four payments of $19.47
with
Learn More
each
SS4036
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
25616 25616A 25616J 25660 25660A 25660B 26269 26269H 26269L 26346 26346A 26346D 26346E 26346K 26381 26381A 26381D 26381E 26381F 26383 26383A 26383D 26396 26396A 26396B 27405 27405A 27405B 27406 27406A 27428 27428A 27428D 27428F 27457A 27457D 27457F 25616 25616A 25616J 25660 25660A 25660B 26269 26269H 26269L 26346 26346A 26346D 26346E 26346K 26381 26381A 26381D 26381E 26381F 26383 26383A 26383D 26396 26396A 26396B 27405 27405A 27405B 27406 27406A 27428 27428A 27428D 27428F 27457A 27457D 27457FSpecifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 18.40 mm |
| Inside Diameter (I.D.1) | 26.20 mm |
| L.B+ | 20.60 mm |
| Length (L.1) | 84.50 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 54.30 mm |
| Outside Diameter (O.D.2) | 59.30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Reference Information
| 134695 | CARGO |
| 76917 | LUCAS |
| 76962 | LUCAS |
| 76982 | LUCAS |
| 77110 | LUCAS |
| 77156 | LUCAS |
| 77161 | LUCAS |
| CQ2030496 | LAUBER |
| F032134695 | CARGO |
| SOL4015 | ELECTROLOG |
| TOB115 | LUCAS |
| TOB172 | LUCAS |
| TOB196 | LUCAS |
| TPB106 | LUCAS |
| UD10601SS | AS-PL |
Video/Publications
