Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 48.50 including GST
NZ$ 42.17 excluding GST
or four payments of $12.13
with
Learn More
each
SS9026
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
9141394 9141396 9141399 9141413 9141414 9141394 9141396 9141399 9141413 9141414Specifications

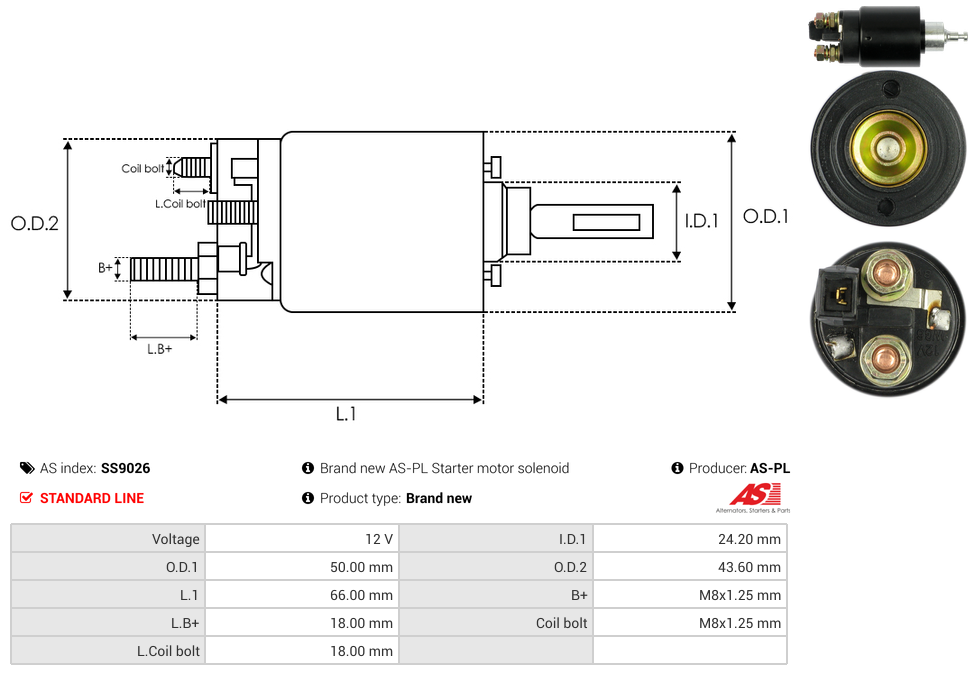

| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 18 mm |
| Inside Diameter (I.D.1) | 24.20 mm |
| L.B+ | 18 mm |
| Length (L.1) | 66 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 50 mm |
| Outside Diameter (O.D.2) | 43.60 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Reference Information
| 7153042 | MAGNETON |
| SND13004 | WOODAUTO |
| SOLX113 | ELECTROLOG |
| SSG5487 | KRAUF |
Video/Publications
9141394 9141396 9141399 9141413 9141414 S9058View your shopping basket or Browse other items in Starter Solenoid.
