Information
0124525215Associated Numbers
311-11566
Armature G Roy 11566
Atelier Dynamo A11566
Audi, Volkswagen 07K-903-023F, 07K-903-023FX
Autoelectro AEG1283
Bosch 0 124 525 215, 0 124 525 547
EGI A-11566
Lester 11566
Metron 11566
Mondial 60-265-550
Nastra A11566
Nastra New 8911566
Part # 11566
Powerite Automotive 11566
Precision Parts & Remanufacturing BOA438
Quality Rebuilders 11566
Techno CVC IMP-A11566
Zorko 11566
B 0124525547
BOSCH 0-124-525-215, 0-124-525-547
LESTER 11566
LUCAS ELECTRIC LRA04135
VOLKSWAGEN 07K-903-023F, 07K-903-023FX
0124525215 Bosch show
0124525547 Bosch show
07K903023F VW
07K903023FX VW
2115441402 DRI
287744 Elstock
305599140 PSH
40327 CEVAM
930945 EDR
DRA0945 Remy
LRA04135 Lucas

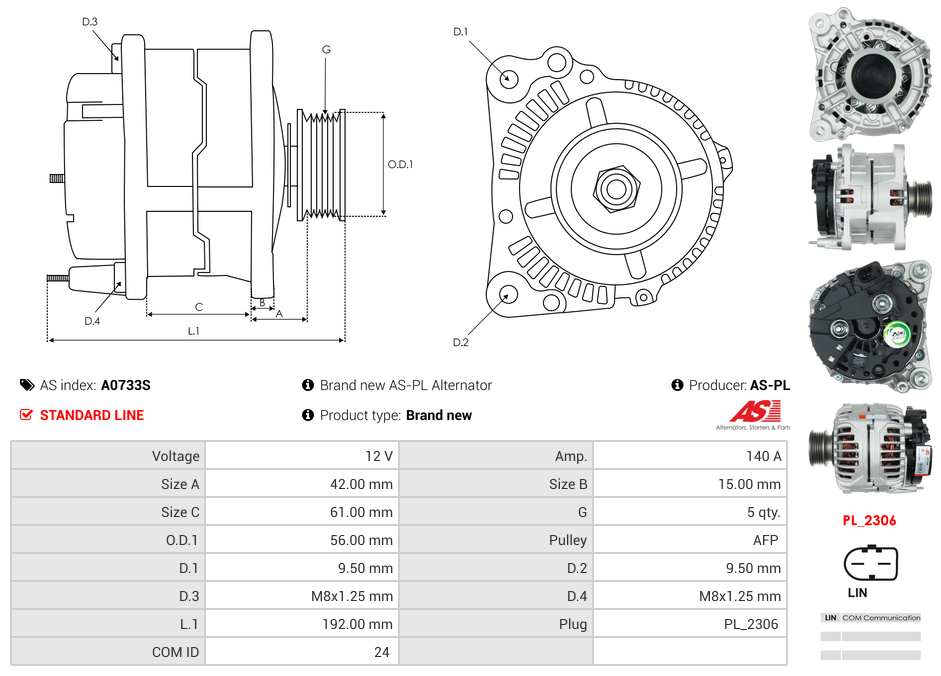

Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | Q3 RS 2.5 Quattro | [CTSA] | 10.2013-10.2018 |
| AUDI | RS3 2.5 Quattro Sportback | [CEPA] | 01.2011-12.2012 |
| AUDI | TT 2.5 RS Quattro | [CEPA] | 07.2009-06.2014 |
| AUDI | TT 2.5 RS Quattro | [CEPB] | 03.2012-06.2014 |
| AUDI | TT 2.5 RS Quattro | [CEPB] | 05.2011-06.2014 |
Reference Information
| 0124525215 | BOSCH |
| 0124525547 | BOSCH |
| 07K903023F | VW |
| 07K903023FX | VW |
| 2010143AOE | REAL |
| 2010A34.1 | SANDO |
| 28-7744 | ELSTOCK |
| 305.599.140 | PSH |
| 305.599.140.014 | PSH |
| 40327 | CEVAM |
| 442657 | LOGISTIK |
| 5510665 | MEAT & DORIA |
| 555093RI | KUHNER |
| 89215549 | POWERMAX |
| 90-15-6655 | WILSON |
| A12BH0861AS | SIDAT |
| A132.292 | PSH |
| A-6629 | DIXIE |
| ALB5547 | KRAUF |
| ALT10767 | WOODAUTO |
| ALT12A340 | SIOM |
| ALT1908 | ELECTROLOG |
| ALTJ081 | 3EFFE |
| BOS0124525547 | WOODAUTO |
| CAL10A34GS | CASCO |
| DA2055 | DELCO |
| DRA0945 | DELCO |
| LRA04135 | LUCAS |
| LRA4135 | LUCAS |
| PRAJ081 | 3EFFE |
| UD20690A | AS-PL |
| UNIT BOM 220-5655 | WAI / TRANSPO |
