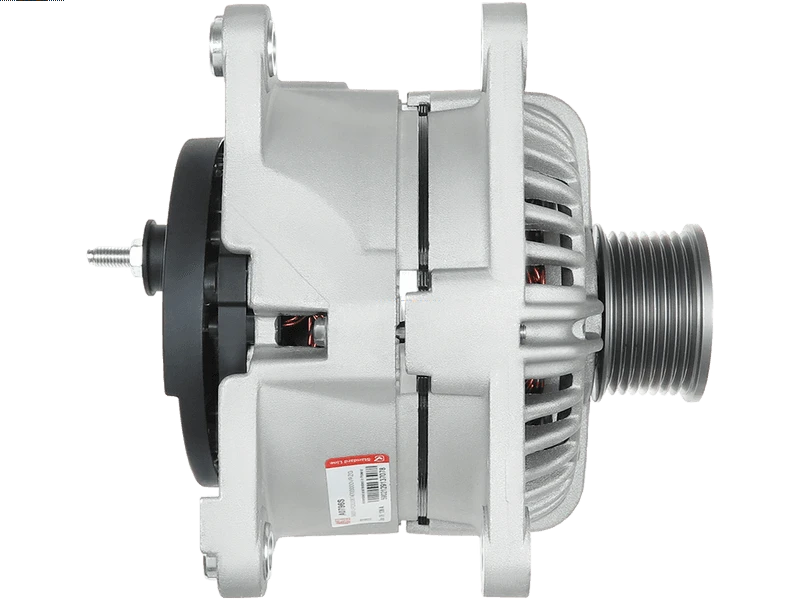

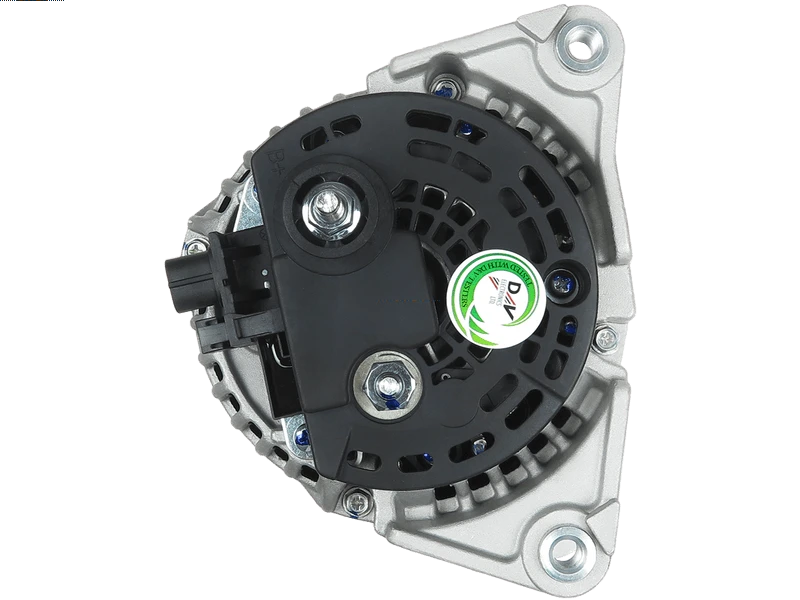

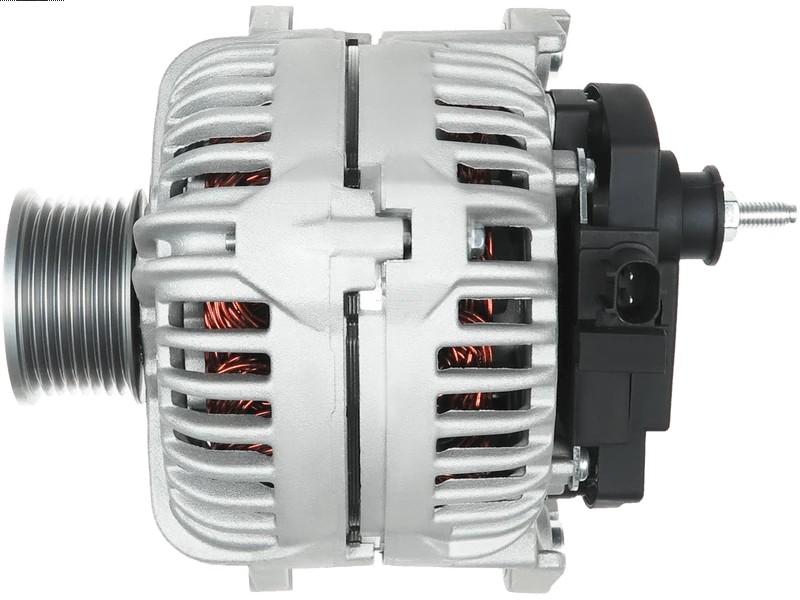

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 465.24 including GST
NZ$ 404.56 excluding GST
or four payments of $116.31
with
Learn More
each
A0796S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0124525105Specifications
| Amp | 136 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 219 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66 mm |
| OEM Product | No |
| Plug Code | PL_2802 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 57.50 mm |
| Pulley to Mount Distance (A) | 46.50 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DODGE | Ram 2500 5.9 | [(359)L6] | 01.2006-12.2010 |
| DODGE | Ram 3500 5.9 | [(359)L6] | 01.2006-12.2009 |
| DODGE | Ram 4000 5.9 | [(359)L6] | 01.2006-12.2006 |
Reference Information
| 0124525105 | BOSCH |
| 04801475AA | DODGE |
| 11235N | WAI / TRANSPO |
| 160-55139 | DIXIE |
| 220-30273 | ROBERT'S |
| 27-7858 | ELSTOCK |
| 554367RI | KUHNER |
| 835.937.136.010 | PSH |
| 835.937.136.210 | PSH |
| 90-15-6537 | WILSON |
| 90-15-6537N | WILSON |
| A-6532 | DIXIE |
| ALB5105 | KRAUF |
| LRA04249 | LUCAS |
| LRA4249 | LUCAS |
| UD20678A | AS-PL |
