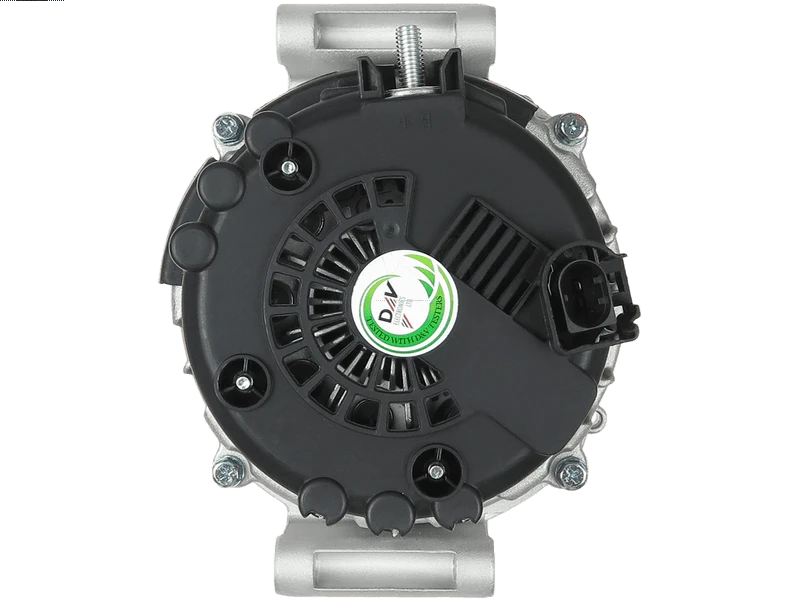

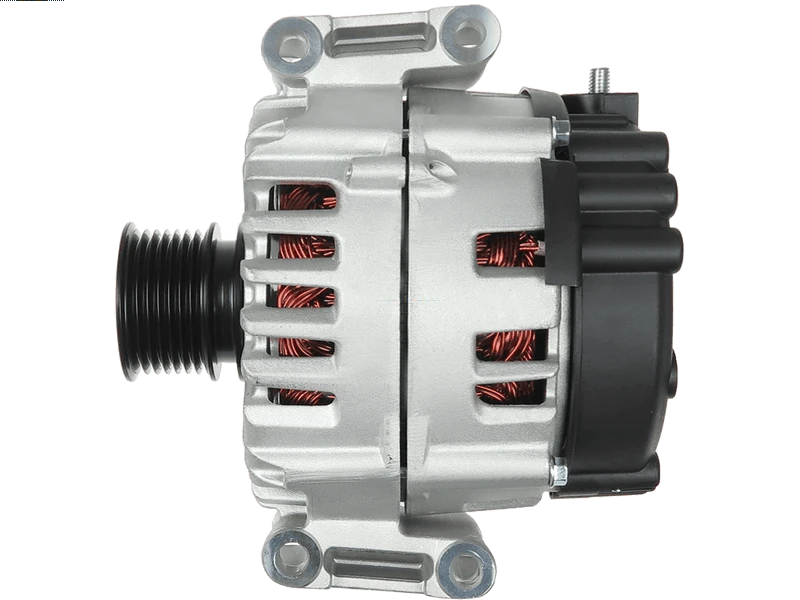

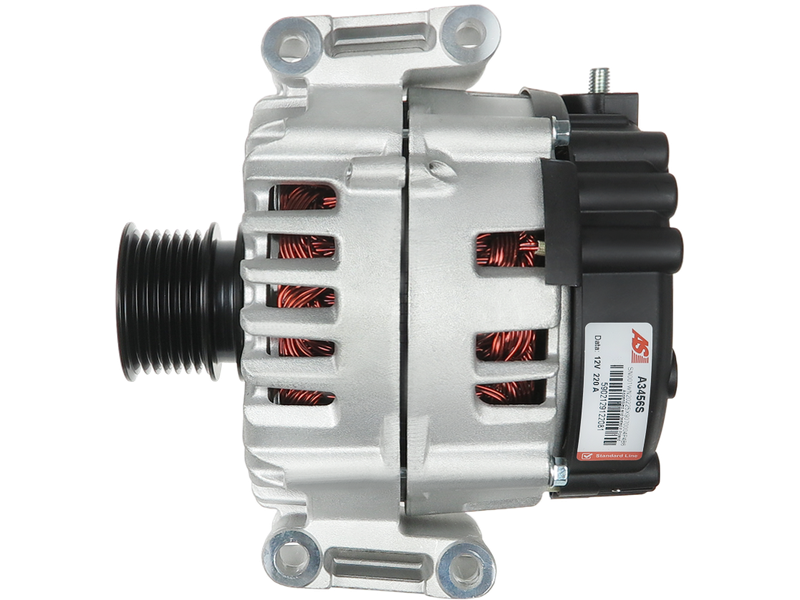

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 742.30 including GST
NZ$ 645.48 excluding GST
or four payments of $185.58
with
Learn More
each
AAM-S7003
A3456S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
FG23S048Specifications
| Amp | 220 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 8 mm |
| Diameter (D.4) | 8 mm |
| Length (L.1) | 187 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | SOLID |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | CLS350 3.0 CDi | [OM642.852] | 01.2011- |
| MERCEDES BENZ | CLS350 3.0 CDi | [OM642.853] | 01.2011- |
| MERCEDES BENZ | CLS350 3.0 CDi | [OM642.854] | 01.2011- |
| MERCEDES BENZ | CLS350 3.0 CDi 4-Matic | [OM642.854] | 01.2011- |
| MERCEDES BENZ | CLS350 3.0 D BlueTEC 4-matic | [OM642.858] | 01.2012- |
| MERCEDES BENZ | E300 3.0 CDi | [OM642.850] | 01.2010- |
| MERCEDES BENZ | E300 3.0 CDi | [OM642.852] | 01.2010- |
| MERCEDES BENZ | E300 3.0 CDi BlueTEC | [OM642.850] | 01.2009- |
| MERCEDES BENZ | E300 3.0 CDi BlueTEC | [OM642.852] | 01.2009- |
| MERCEDES BENZ | E350 3.0 CDi | [OM642.836] | 01.2009-12.2011 |
| MERCEDES BENZ | E350 3.0 CDi | [OM642.838] | 01.2011- |
| MERCEDES BENZ | E350 3.0 CDi | [OM642.852] | 01.2011- |
| MERCEDES BENZ | E350 3.0 CDi 4-Matic | [OM642.858] | 01.2011- |
| MERCEDES BENZ | E350 3.0 CDi BlueTEC | [OM642.838] | 01.2014- |
| MERCEDES BENZ | E350 3.0 D BlueTEC | [OM642.850] | 01.2009- |
| MERCEDES BENZ | E350 3.0 D BlueTEC | [OM642.852] | 01.2009- |
| MERCEDES BENZ | E350 3.0 D BlueTEC 4-Matic | [OM642.858] | 01.2012- |
| MERCEDES BENZ | GL350 3.0 BlueTECH 4-Matic | [OM642.826] | 01.2011- |
| MERCEDES BENZ | GL350 3.0 CDi BlueTEC 4-Matic | [OM642.826] | 01.2012- |
| MERCEDES BENZ | GLE350 3.0 d 4-Matic | [OM642.826] | 01.2015- |
| MERCEDES BENZ | GLS350 3.0 d 4-matic | [OM642.826] | 01.2015- |
| MERCEDES BENZ | ML350 3.0 CDi BlueTEC 4-Matic | [OM642.826] | 01.2011-12.2013 |
| MERCEDES BENZ | Sprinter 219 3.0 CDi | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 219 3.0 CDi | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 219 3.0 CDi | [OM642.993] | 01.2009- |
| MERCEDES BENZ | Sprinter 319 3.0 CDi | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 319 3.0 CDi | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 319 3.0 CDi | [OM642.993] | 01.2009- |
| MERCEDES BENZ | Sprinter 419 3.0 CDi | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 419 3.0 CDi | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec | [OM642.898] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec | [OM642.986] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec 4X4 | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec 4X4 | [OM642.986] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec 4X4 | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec 4X4 | [OM642.993] | 01.2009- |
Reference Information
STX110314R LRA03720 STX102237 442511 A0009063502 A00090635220080 DRA1768 9063522 A12VA0971AS 9067400 ALT14547 A000906740080 A12VA0971 000906740080 554175RIV 555.926.220 FGN23S048 ALT00071 00090674000080 555.926.220.004 55151246 STX110314 20179410OE 90-22-5709 CAL15014GS A0009067400 440361 A-9627 A0009063522 439770 ALV3048 ALT2300 11715N ALT121090 28-6831 554175RI A3456S 4440 UD17236A 2015014.1 209278 440463 LRA3720 A00090674000080 FG23S048 0009067400 89215960 ALTF236 0009063522Video/Publications
