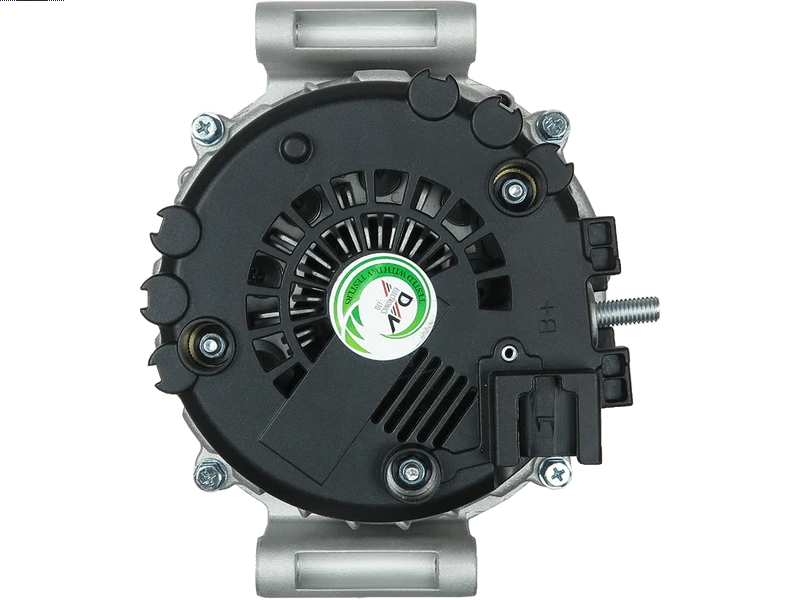

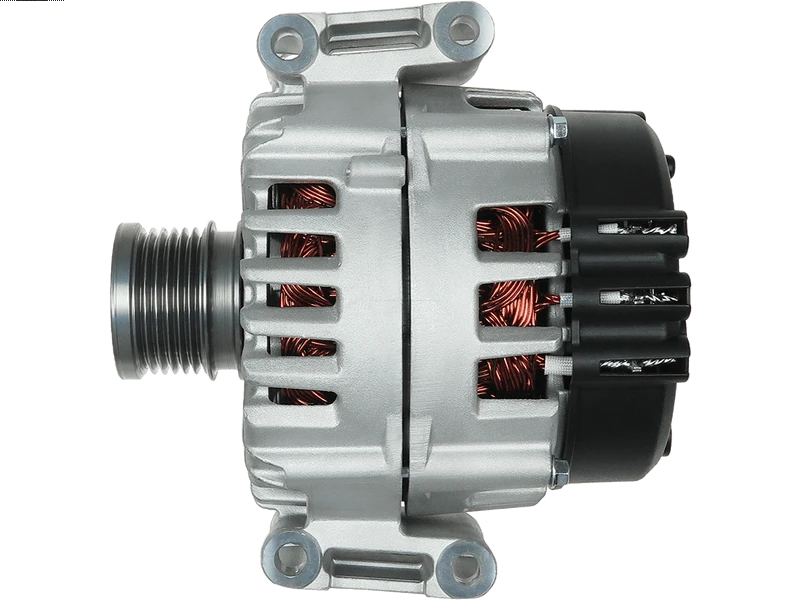

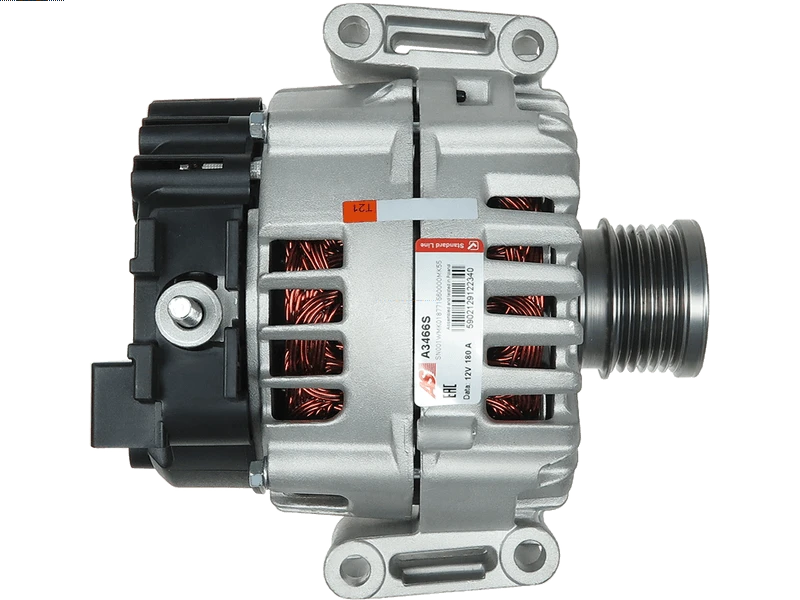

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 696.20 including GST
NZ$ 605.39 excluding GST
or four payments of $174.05
with
Learn More
each
A3466S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Information
FG18S047Specifications
| Amp | 180 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 8.50 mm |
| Diameter (D.4) | 8.50 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | E 250 2.2 CDi 4-Matic | [OM651.924] | 01.2009- |
| MERCEDES BENZ | E 250 2.2 CDi BlueTEC 4-Matic | [OM651.924] | 01.2009- |
| MERCEDES BENZ | GLK 220 2.2 CDi 4-Matic | [OM651.912] | 01.2008- |
| MERCEDES BENZ | GLK 250 2.2 CDi 4-Matic | [OM651.912] | 01.2009- |
| VOLVO | S60 3.0 T6 AWD | [B6304T5] | 01.2013- |
Reference Information
| 0141543902 | MERCEDES |
| 01415439020080 | MERCEDES |
| 0141543902080 | MERCEDES |
| 014154390280 | MERCEDES |
| 11738N | WAI / TRANSPO |
| 141543902 | MERCEDES |
| 2015564.1 | SANDO |
| 20179465OE | REAL |
| 209175 | ERA |
| 28-6581 | ELSTOCK |
| 439704 | VALEO |
| 440295 | VALEO |
| 442157 | LOGISTIK |
| 55151229 | MEAT & DORIA |
| 553550RIV | KUHNER |
| 555.592.180 | PSH |
| 555.592.180.004 | PSH |
| 555.592.180.008 | PSH |
| 555.592.180.346 | PSH |
| 57479 | EAI |
| 8EL012240-311 | HELLA |
| 90-22-5703 | WILSON |
| A0141543902 | MERCEDES |
| A01415439020080 | MERCEDES |
| A0141543902080 | MERCEDES |
| A014154390280 | MERCEDES |
| A12VA0952AS | SIDAT |
| A3466S | AS-PL |
| A-9655 | DIXIE |
| ALT00016 | ELECTROLOG |
| ALT14585 | WOODAUTO |
| ALT2262CP | ROLLCO |
| ALTL617 | 3EFFE |
| ALV8047 | KRAUF |
| ANM33287X | ANDEL |
| CAL15564GS | CASCO |
| DRA1067 | DELCO |
| FG18S047 | VALEO |
| FGN18S047 | VALEO |
| LRA03471 | LUCAS |
| LRA3471 | LUCAS |
| STX101750 | STARDAX |
| STX101750R | STARDAX |
| UD17218A | AS-PL |
