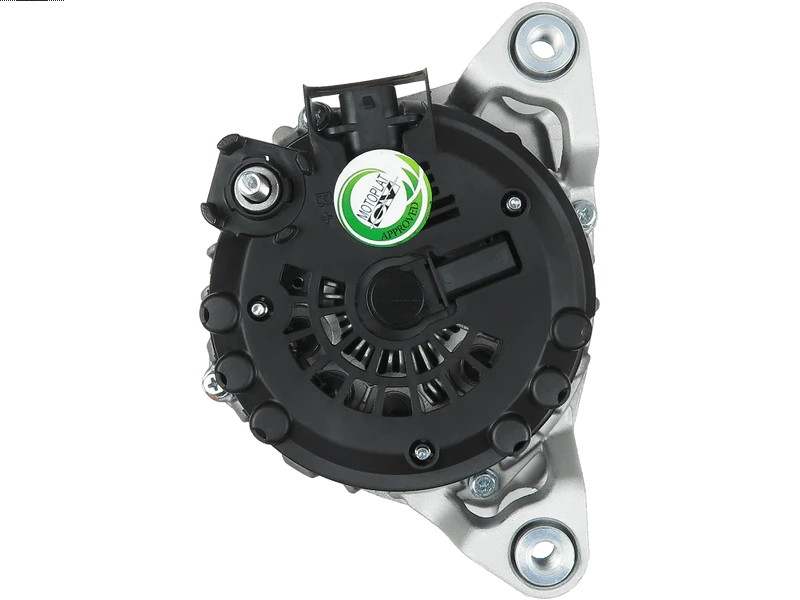

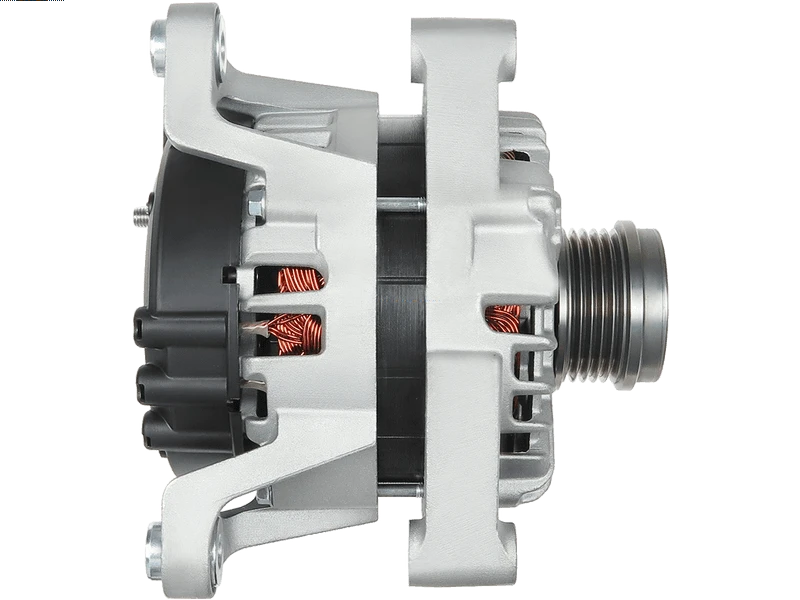

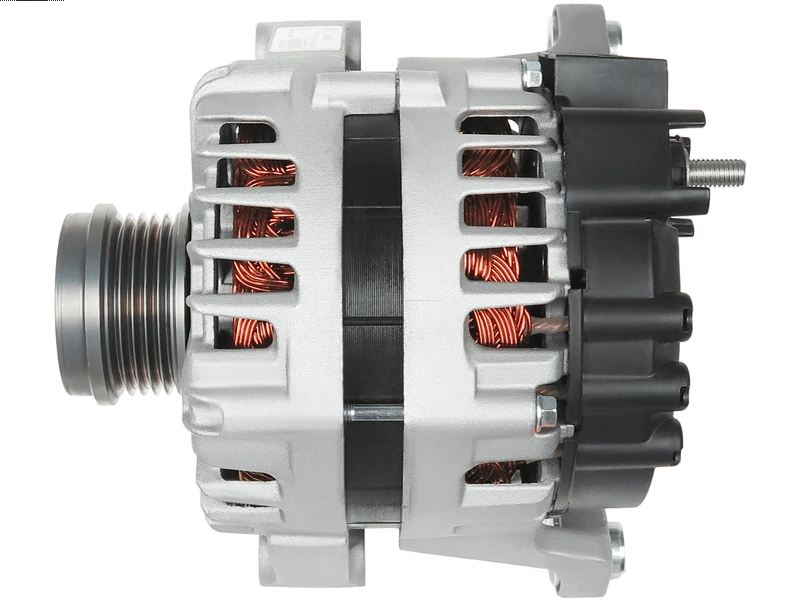

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 543.73 including GST
NZ$ 472.81 excluding GST
or four payments of $135.93
with
Learn More
each
A3488S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
FG12S048Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 33.50 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 59.50 mm |
| OEM Product | No |
| Plug Code | PL_2201 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 53.50 mm |
| Pulley to Mount Distance (A) | 53.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Cascada 1.4 | [A14NEL] | 04.2013-04.2018 |
| OPEL | Cascada 1.4 | [B14NEL] | 04.2013-04.2018 |
| OPEL | Cascada 1.4 Turbo | [A14NET] | 03.2013-04.2018 |
| OPEL | Cascada 1.4 Turbo | [B14NET] | 03.2013-04.2018 |
| OPEL | Meriva B 1.4 | [A14NEL] | 06.2010-03.2017 |
| OPEL | Meriva B 1.4 | [A14NET] | 06.2010-03.2017 |
| OPEL | Meriva B 1.4 | [A14XER] | 06.2010-03.2017 |
| OPEL | Meriva B 1.4 | [B14NEL] | 06.2010-03.2017 |
| OPEL | Meriva B 1.4 | [B14NET] | 06.2010-03.2017 |
| OPEL | Meriva B 1.4 | [B14XER] | 06.2010-03.2017 |
| OPEL | Meriva B 1.4 LPG | [A14NEL] | 06.2011-03.2017 |
| OPEL | Meriva B 1.4 LPG | [B14NEL] | 06.2011-03.2017 |
| OPEL | Zafira Tourer C 1.4 | [A14NEL] | 10.2011- |
| OPEL | Zafira Tourer C 1.4 | [A14NET] | 10.2011- |
| OPEL | Zafira Tourer C 1.4 | [B14NEL] | 10.2011- |
| OPEL | Zafira Tourer C 1.4 | [B14NET] | 10.2011- |
| OPEL | Zafira Tourer C 1.4 LPG | [A14NET] | 10.2011- |
| OPEL | Zafira Tourer C 1.4 LPG | [B14NET] | 10.2011- |
Reference Information
| 11654N | WAI / TRANSPO |
| 1202245 | OPEL |
| 1202350 | OPEL |
| 1204438 | OPEL |
| 135.577.120 | PSH |
| 135.577.120.462 | PSH |
| 13581891 | OPEL |
| 13588290 | OPEL |
| 13589290 | VAUXHALL |
| 13597227 | OPEL |
| 2015568.1 | SANDO |
| 20179865OE | REAL |
| 209089 | ERA |
| 2616737A | VALEO |
| 28-6723 | ELSTOCK |
| 4223 | CEVAM |
| 439805 | VALEO |
| 440459 | VALEO |
| 441995 | LOGISTIK |
| 55151130 | MEAT & DORIA |
| 554293RI | KUHNER |
| 554293RIV | KUHNER |
| 57688 | EAI |
| 89215392 | POWERMAX |
| 8EL012240-001 | HELLA |
| 90-22-5668 | WILSON |
| 9215392 | POWERMAX |
| 95520019 | OPEL |
| 95523602 | OPEL |
| 95939944 | OPEL |
| A12VA0645 | SIDAT |
| A12VA0645A2 | SIDAT |
| A-9570 | DIXIE |
| ADP | GM |
| AF7 | GM |
| ALT0108 | ELECTROLOG |
| ALT14465 | WOODAUTO |
| ALT2314CP | ROLLCO |
| ALTE288 | 3EFFE |
| ALV2245 | KRAUF |
| AMR | GM |
| CAL15568GS | CASCO |
| DA2348 | DELCO |
| DRA1238 | DELCO |
| FG12S048 | VALEO |
| FG12S054 | VALEO |
| FG12S065 | VALEO |
| FGN12S065 | VALEO |
| LRA03613 | LUCAS |
| LRA3613 | LUCAS |
| STX110169 | STARDAX |
| STX110169R | STARDAX |
| STX110348 | STARDAX |
| STX110348R | STARDAX |
| UD17158A | AS-PL |
| VAL439805 | WOODAUTO |
