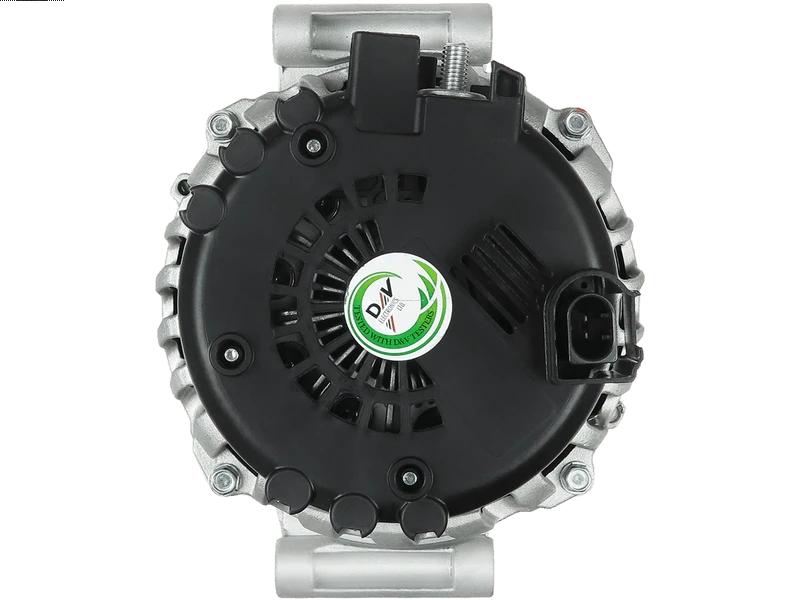

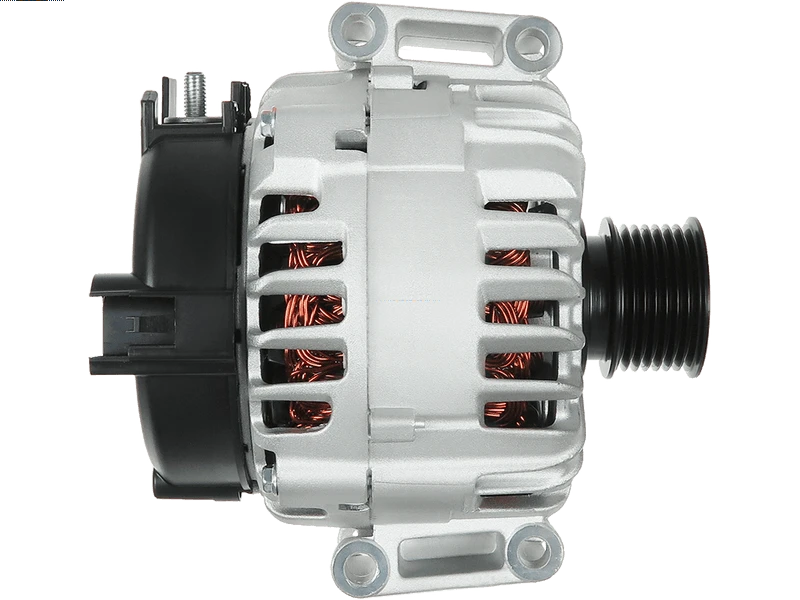

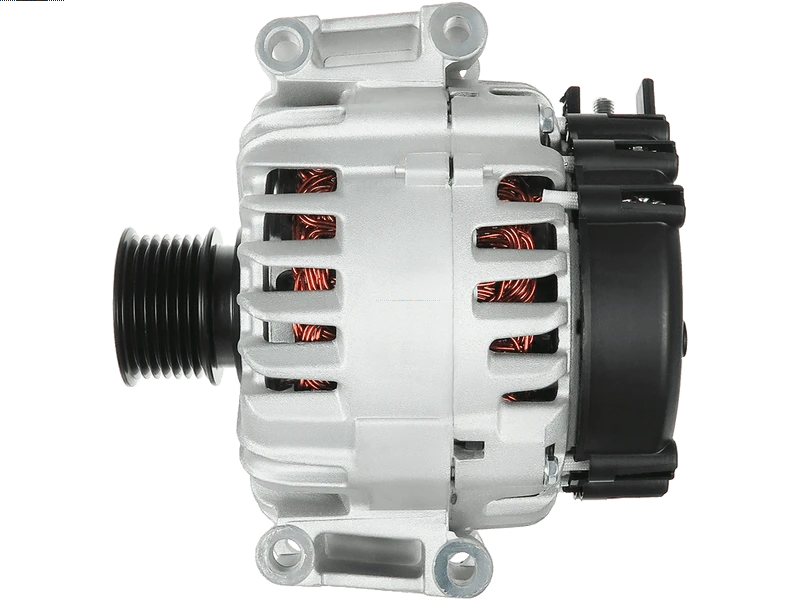

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 904.99 including GST
NZ$ 786.95 excluding GST
or four payments of $226.25
with
Learn More
each
A3489S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
TG23C035Specifications
| Amp | 220 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 8.50 mm |
| Diameter (D.4) | 8.50 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |

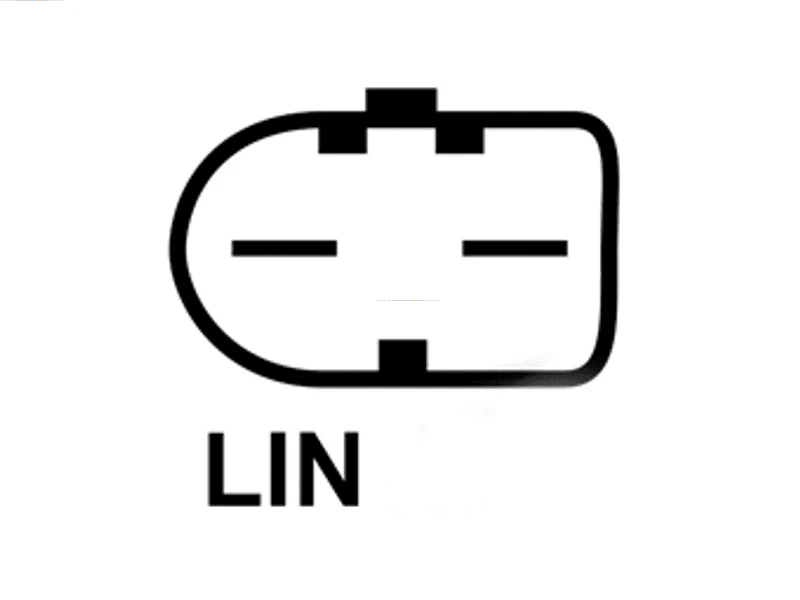

| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 31.50 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | CLS350 3.0 CDi | [OM642.852] | 01.2011- |
| MERCEDES BENZ | CLS350 3.0 CDi | [OM642.853] | 01.2011- |
| MERCEDES BENZ | CLS350 3.0 CDi | [OM642.854] | 01.2011- |
| MERCEDES BENZ | CLS350 3.0 CDi 4-Matic | [OM642.854] | 01.2011- |
| MERCEDES BENZ | CLS350 3.0 D BlueTEC 4-Matic | [OM642.858] | 01.2012- |
| MERCEDES BENZ | E300 3.0 CDi | [OM642.850] | 01.2010- |
| MERCEDES BENZ | E300 3.0 CDi | [OM642.852] | 01.2010- |
| MERCEDES BENZ | E300 3.0 CDi BlueTEC | [OM642.850] | 01.2009- |
| MERCEDES BENZ | E300 3.0 CDi BlueTEC | [OM642.852] | 01.2009- |
| MERCEDES BENZ | E350 3.0 CDi | [OM642.836] | 01.2009-12.2011 |
| MERCEDES BENZ | E350 3.0 CDi | [OM642.838] | 01.2011- |
| MERCEDES BENZ | E350 3.0 CDi | [OM642.852] | 01.2011- |
| MERCEDES BENZ | E350 3.0 CDi 4-Matic | [OM642.858] | 01.2011- |
| MERCEDES BENZ | E350 3.0 CDi BlueTEC | [OM642.838] | 01.2014- |
| MERCEDES BENZ | E350 3.0 D BlueTEC | [OM642.850] | 01.2009- |
| MERCEDES BENZ | E350 3.0 D BlueTEC | [OM642.852] | 01.2009- |
| MERCEDES BENZ | E350 3.0 D BlueTEC 4-Matic | [OM642.858] | 01.2012- |
| MERCEDES BENZ | GL350 3.0 BlueTECH 4-Matic | [OM642.826] | 01.2011- |
| MERCEDES BENZ | GL350 3.0 CDi BlueTEC 4-Matic | [OM642.826] | 01.2012- |
| MERCEDES BENZ | GLE350 3.0 d 4-Matic | [OM642.826] | 01.2015- |
| MERCEDES BENZ | GLS350 3.0 d 4-Matic | [OM642.826] | 01.2015- |
| MERCEDES BENZ | ML350 3.0 CDi BlueTEC 4-Matic | [OM642.826] | 01.2011-12.2013 |
| MERCEDES BENZ | Sprinter 219 3.0 CDi | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 219 3.0 CDi | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 219 3.0 CDi | [OM642.993] | 01.2009- |
| MERCEDES BENZ | Sprinter 319 3.0 CDi | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 319 3.0 CDi | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 319 3.0 CDi | [OM642.993] | 01.2009- |
| MERCEDES BENZ | Sprinter 419 3.0 CDi | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 419 3.0 CDi | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec | [OM642.898] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec | [OM642.986] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec 4x4 | [OM642.896] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec 4x4 | [OM642.986] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec 4x4 | [OM642.992] | 01.2009- |
| MERCEDES BENZ | Sprinter 519 3.0 CDi BlueTec 4x4 | [OM642.993] | 01.2009- |
Reference Information
| 0009063522 | MERCEDES |
| 12090601 | EUROTEC |
| 2015562.1 | SANDO |
| 20179265OE | REAL |
| 209278 | ERA |
| 439809 | VALEO |
| 553780RIV | KUHNER |
| 555.915.220 | PSH |
| 555.915.220.004 | PSH |
| 9063522 | MERCEDES |
| 9090761 | FRIESEN |
| A0009063522 | MERCEDES |
| A00090635220080 | MERCEDES |
| A12VA0967AS | SIDAT |
| A133.764 | PSH |
| A147.217 | PSH |
| ALT00235 | ELECTROLOG |
| ALTS644 | 3EFFE |
| CAL15562GS | CASCO |
| DA2880 | DELCO |
| DRA1770 | DELCO |
| STX102237 | STARDAX |
| STX110314 | STARDAX |
| STX110314R | STARDAX |
| TG23C035 | VALEO |
| UD17175A | AS-PL |
| VAL439809 | WOODAUTO |
