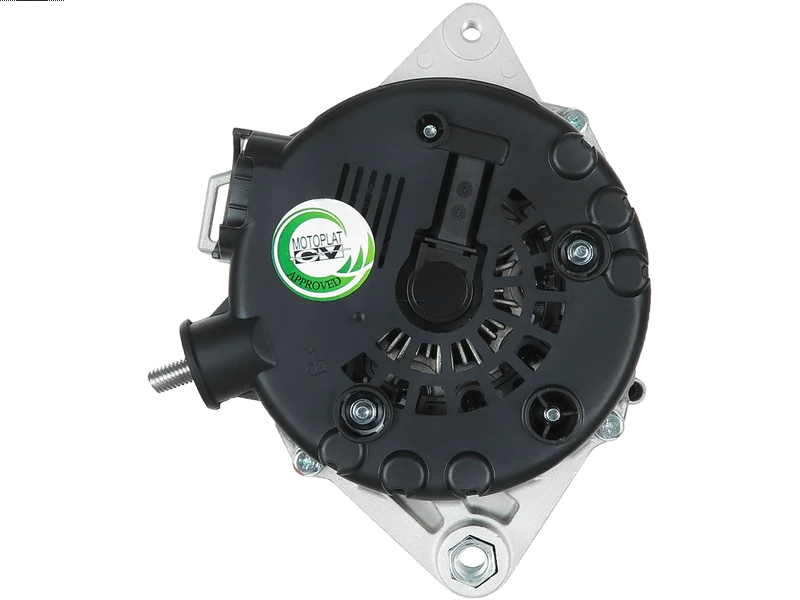

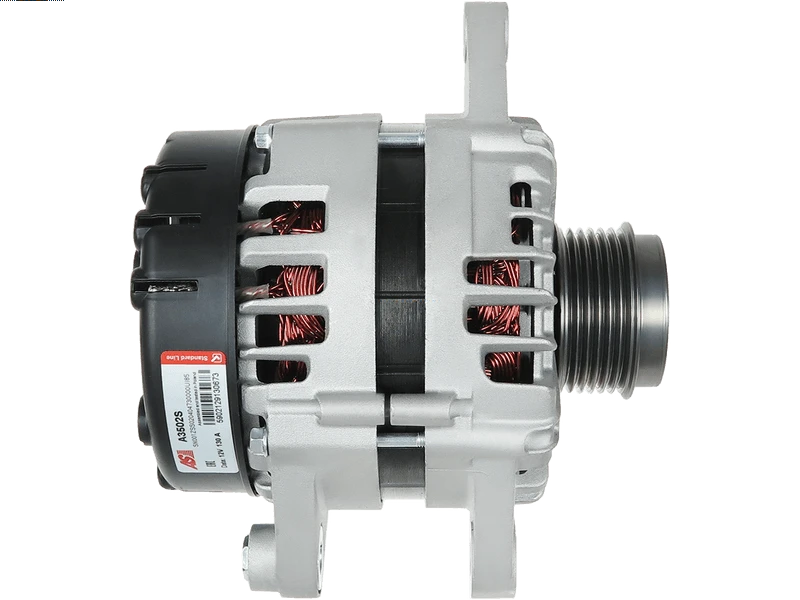

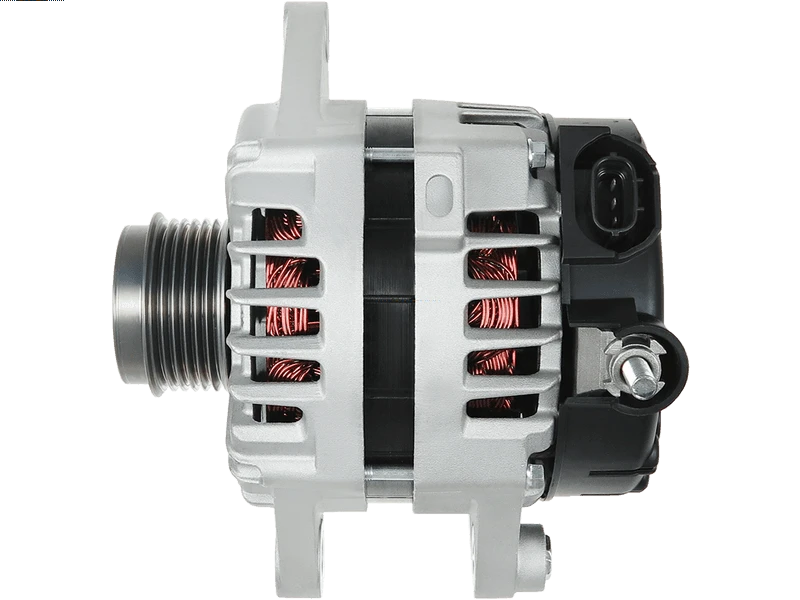

A3502S - Brand new AS-PL Alternator

Specifications

Amp	130 A
Bottom Mounting Foot Width (B)	15 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	11 mm
Diameter (D.3)	M10x1.25 mm
Grooves	6 qty
Length (L.1)	175 mm
Mount Inside Length or Pad Mount C-C (C)	51 mm
OEM Product	No
Outside Diameter (O.D.1)	58 mm
Plug Code	PL_3307
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	35 mm
Pulley Type	CLUTCH
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	i30 1.6 GDi	[G4FD]	01.2014-
HYUNDAI	i30 1.6 T-GDi	[G4FJ]	01.2014-
HYUNDAI	Kona 1.6 T-GDi	[G4FJ]	01.2017-
KIA	Soul 1.6 T-GDi	[G4FJ]	01.2016-

Reference Information

2622503 55151145 37300-2B970 DRA1919 40344 21153N 2032197.1 ALA3784 20193791OE 209326 J5110571 A12VA0687 28-7768 DA3029 A-9686 A0002622503 90-22-5737 BN373002B960 CAL32197GS ALD3784 37300-2B960 555363RIV UD18526A LRA4159 A12VA0687A2 ALT01168 LRA04159 155.922.130

Video/Publications

155.922.130 20193791OE 2032197.1 209326 21153N 2622503 28-7768 37300-2B960 40344 555363RIV 90-22-5737 A-9686 A0002622503 ALA3784 ALD3784 BN373002B960 CAL32197GS DA3029 DRA1919 J5110571 LRA04159 LRA4159 UD18526A
