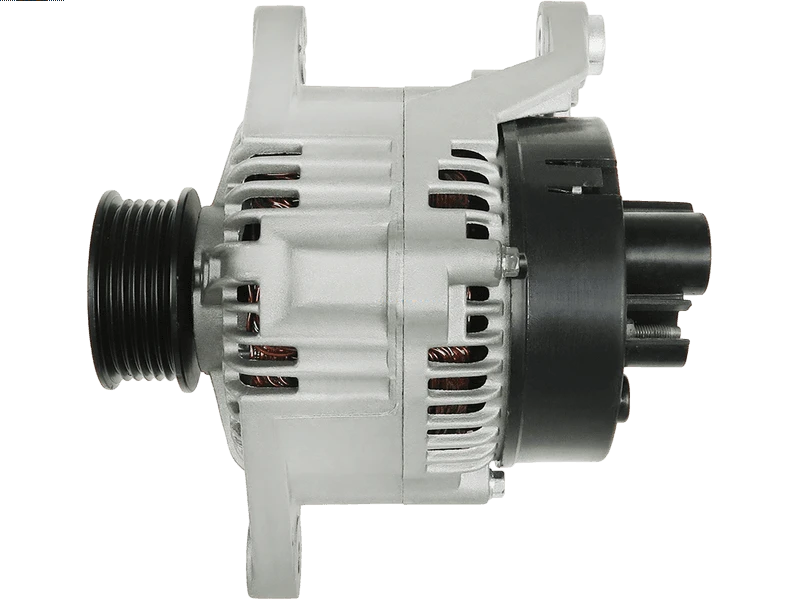

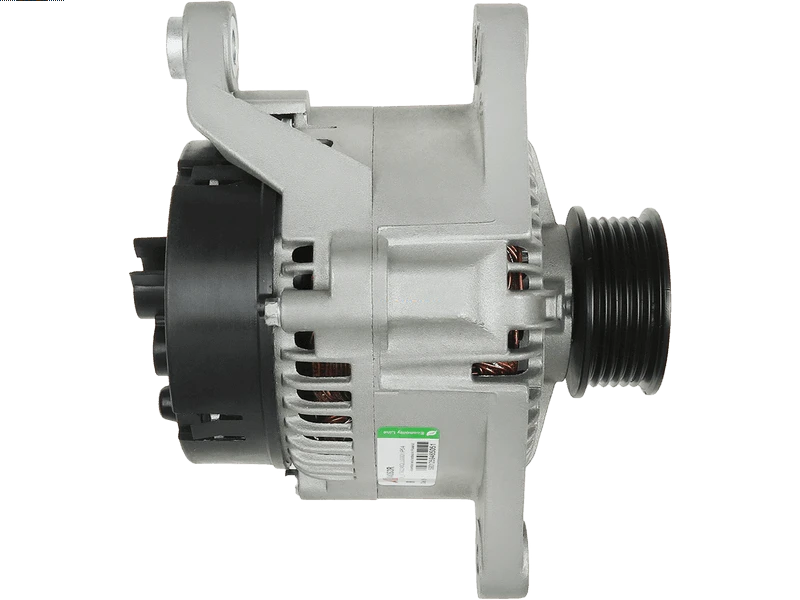

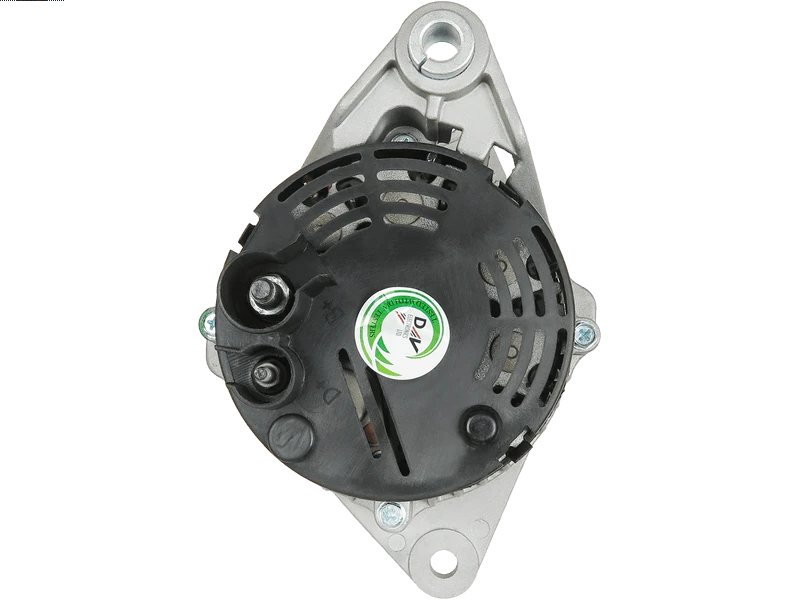

Remanufactured AS-PL Alternator
ECONOMY LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 350.66 including GST
NZ$ 304.92 excluding GST
or four payments of $87.67
with
Learn More
each
A4053R
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Economy Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 41.50 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumpy 1.6 i | [1580SPI] | 10.1995- |
| FIAT | Scudo 1.6 | [220A2.000] | 02.1996- |
Reference Information
| 112385 | CARGO |
| 20104241OE | REAL |
| 2030142.1 | SANDO |
| 210215 | ERA |
| 28-3722 | ELSTOCK |
| 301565RI | KUHNER |
| 46430111 | FIAT |
| 5705R9 | PEUGEOT |
| 63321291 | MAGNETI MARELLI |
| 63321620 | MAGNETI MARELLI |
| 8EL737829-001 | HELLA |
| 943321620 | MAGNETI MARELLI |
| ALT12061 | WOODAUTO |
| ALT321420 | SIOM |
| ALTF226 | 3EFFE |
| CA1565IR | HC PARTS |
| CAL30142GS | CASCO |
| DRA3424 | DELCO |
| F032112385 | CARGO |
| LRA01864 | LUCAS |
| LRA1864 | LUCAS |
Video/Publications
A4053RView your shopping basket or Browse other items in Alternators.
