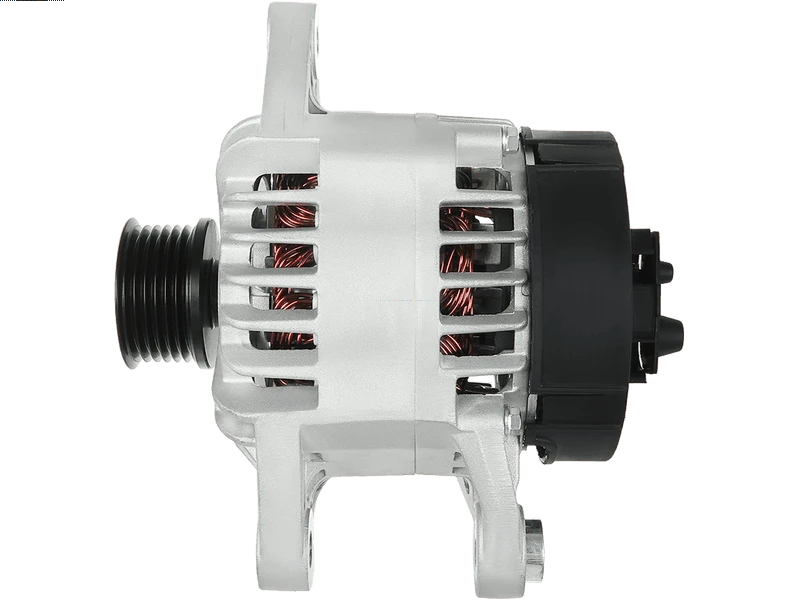

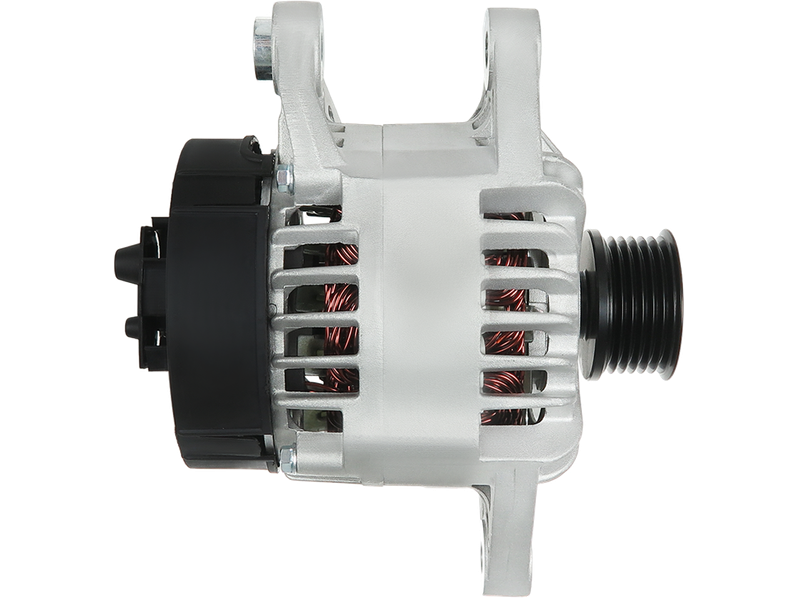

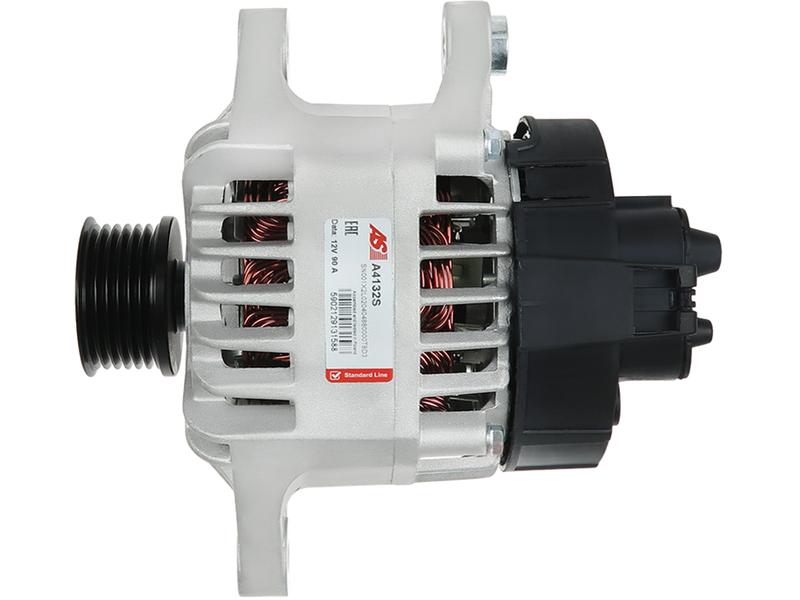

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 352.60 including GST
NZ$ 306.61 excluding GST
or four payments of $88.15
with
Learn More
each
A4132S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
63321836Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 202.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | Alfa 147 2.0 16V | [AR32310] | 01.2000- |
| ALFA ROMEO | Alfa 156 2.0 16V | [932A2000] | 01.2002-12.2005 |
| ALFA ROMEO | Alfa 156 2.0 16V | [937A1000] | 01.2002-12.2005 |
| ALFA ROMEO | Alfa 166 2.0 16V | [AR36301] | 01.2003-12.2007 |
| ALFA ROMEO | Alfa GT 1.8 | [AR32205] | 01.2003- |
| ALFA ROMEO | Alfa GT 2.0 JTS | [932A2000] | 01.2003-12.2010 |
| ALFA ROMEO | Alfa GT 2.0 JTS | [937A1000] | 01.2003-12.2010 |
| ALFA ROMEO | Alfa GTV 2.0 JTS | [937A1000] | 01.2003-12.2005 |
| ALFA ROMEO | Alfa Spider 2.0 JTS | [937A1000] | 01.2003-12.2006 |
| FIAT | Punto 1.8 130 HGT | [183A1.000] | 01.1999-12.2003 |
| FIAT | Punto 1.8 130 HGT | [188A6.000] | 01.1999-12.2003 |
Reference Information
| 0124325060 | BOSCH |
| 063321836010 | MAGNETI MARELLI |
| 0986046090 | BOSCH |
| 0986048030 | BOSCH |
| 105.508.090 | PSH |
| 105.508.090.346 | PSH |
| 105.508.090.461 | PSH |
| 113536 | CARGO |
| 12046090 | EUROTEC |
| 2010104.0 | SANDO |
| 2010104.1 | SANDO |
| 20101401BN | REAL |
| 20101401OE | REAL |
| 20101714OE | REAL |
| 2010417.1 | SANDO |
| 210884 | ERA |
| 210884A | ERA |
| 23137R | WAI / TRANSPO |
| 28-4639 | ELSTOCK |
| 301743RI | KUHNER |
| 301743RIM | KUHNER |
| 4004 | CEVAM |
| 441890 | LOGISTIK |
| 46430528 | FIAT |
| 46782219 | FIAT |
| 46813062 | FIAT |
| 51734827 | FIAT |
| 51742335 | FIAT |
| 51859052 | FIAT |
| 51859642 | FIAT |
| 57127 | EAI |
| 60812989 | FIAT |
| 60817038 | FIAT |
| 60817038 | SCANIA |
| 63321836 | MAGNETI MARELLI |
| 71780133 | FIAT |
| 89212159 | POWERMAX |
| 8EL012429-051 | HELLA |
| 8EL738100-001 | HELLA |
| 9046090 | FRIESEN |
| 944390460900 | MAGNETI MARELLI |
| A129.896 | PSH |
| A12BH0341A2 | SIDAT |
| AG0210 | GHIBAUDI |
| ALE1743 | KRAUF |
| ALE8743 | KRAUF |
| ALT12089 | WOODAUTO |
| ALT9013 | ELECTROLOG |
| ALTL270 | 3EFFE |
| CA1159IR | HC PARTS |
| CA1743IR | HC PARTS |
| CAL10104AS | CASCO |
| CAL10104GS | CASCO |
| CAL10417GS | CASCO |
| CGB-84639 | AINDE |
| DB7200 | DELCO |
| DRB6090 | DELCO |
| F032113536 | CARGO |
| LRA02180 | LUCAS |
| LRA2180 | LUCAS |
| MAN1121 | MAGNETI MARELLI |
| MRA46090 | MAGNETI MARELLI |
| RAA27101 | DELCO |
| STX100138 | STARDAX |
| STX100138R | STARDAX |
| STX100264 | STARDAX |
| STX100264R | STARDAX |
| STX101845 | STARDAX |
| UD20821A | AS-PL |
