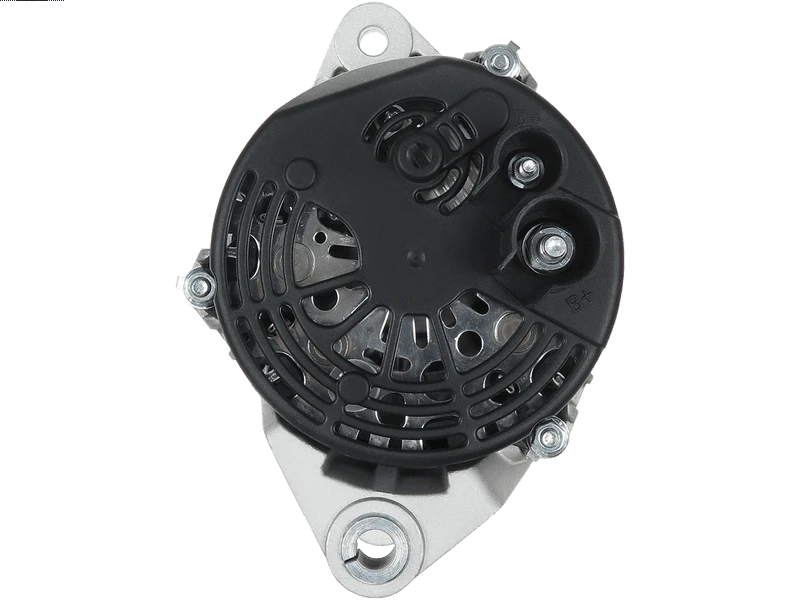

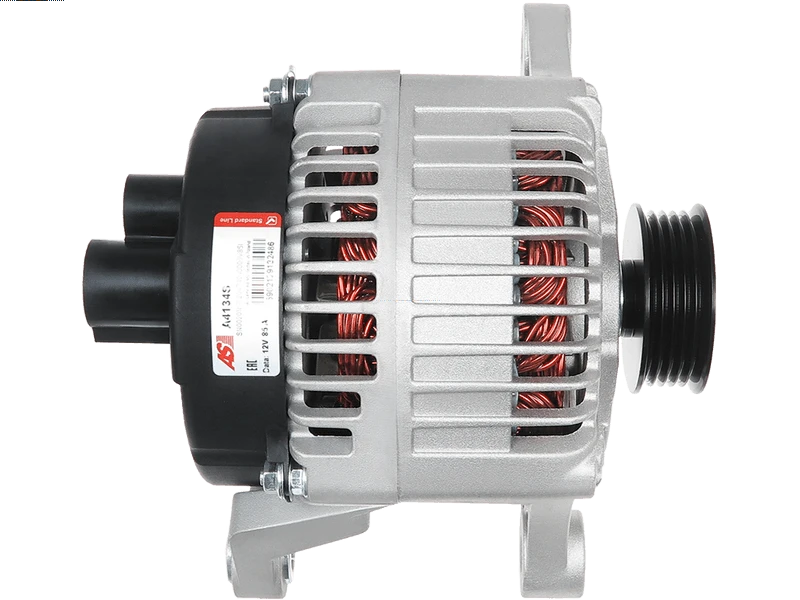

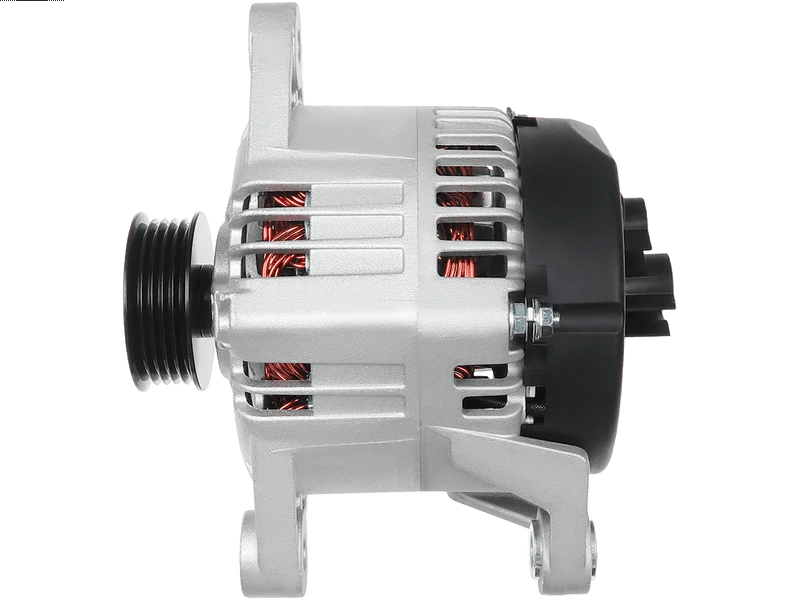

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 452.13 including GST
NZ$ 393.16 excluding GST
or four payments of $113.03
with
Learn More
each
A4134S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
63321461Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 21.50 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 198.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Ducato 1.9 D | 01.1987-12.1990 | |
| FIAT | Ducato 1.9 D | 01.1988-12.1990 | |
| FIAT | Ducato 1.9 D | 01.1990-12.1994 | |
| FIAT | Ducato 1.9 D | 01.1994-12.2002 | |
| FIAT | Ducato 1.9 D | 01.1998-12.2002 | |
| FIAT | Ducato 1.9 D Combinato | 01.1995-12.2002 | |
| FIAT | Ducato 1.9 TD | 01.1989-12.1990 | |
| FIAT | Ducato 1.9 TD | 01.1989-12.1994 | |
| FIAT | Ducato 1.9 TD | 01.1990-12.1994 | |
| FIAT | Ducato 1.9 TD | 01.1994-12.2002 | |
| FIAT | Ducato 1.9 TD | 01.1998-12.2002 | |
| FIAT | Ducato 1.9 TD CAT | 01.1994-12.2002 | |
| FIAT | Ducato 1.9 TD Combinato | 01.1994-12.2002 | |
| FIAT | Ducato 1.9 TD Panorama | 01.1994-12.2002 | |
| FIAT | Scudo 1.6 | 01.1996-12.2006 |
Reference Information
| 20104342BN | REAL |
| 2030243.0 | SANDO |
| 210760 | ERA |
| 23288R | WAI / TRANSPO |
| 28-4769 | ELSTOCK |
| 301437RI | KUHNER |
| 32321391 | HERTH+BUSS |
| 437780 | VALEO |
| 46430112 | FIAT |
| 46434931 | FIAT |
| 46472226 | FIAT |
| 505.548.085 | PSH |
| 57057T | PEUGEOT |
| 63320305 | MAGNETI MARELLI |
| 63321229 | MAGNETI MARELLI |
| 63321237 | MAGNETI MARELLI |
| 63321331 | MAGNETI MARELLI |
| 63321391 | MAGNETI MARELLI |
| 63321405 | MAGNETI MARELLI |
| 63321461 | MAGNETI MARELLI |
| 89213632 | POWERMAX |
| 8EL737632-001 | HELLA |
| 9090486 | FRIESEN |
| ALT12115 | WOODAUTO |
| ALT2240 | SIOM |
| ALT2440 | SIOM |
| ALT9000 | ELECTROLOG |
| ALTF042 | 3EFFE |
| ALTL808 | 3EFFE |
| CA1437IR | HC PARTS |
| CAL30243AS | CASCO |
| CGB-84769 | AINDE |
| DRA3937 | DELCO |
| LRA02288 | LUCAS |
| LRA2288 | LUCAS |
| STX101458 | STARDAX |
| UD20955A | AS-PL |
