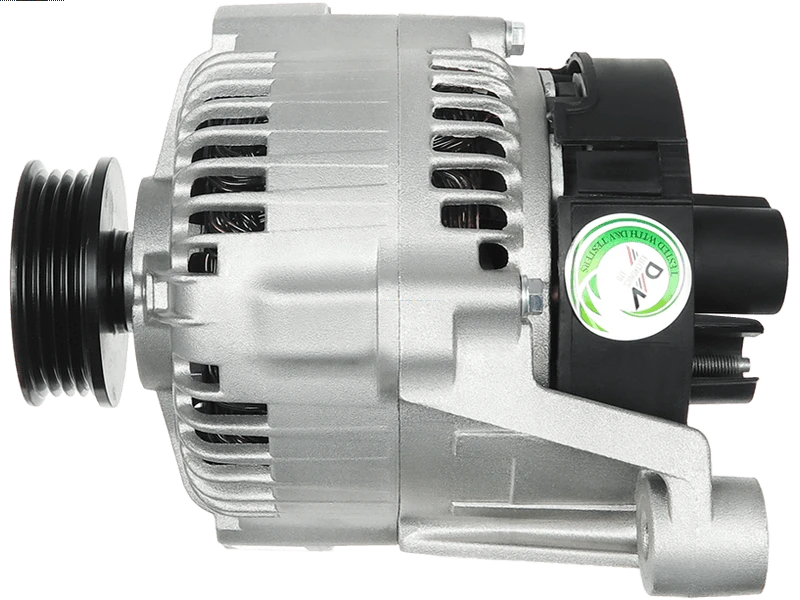

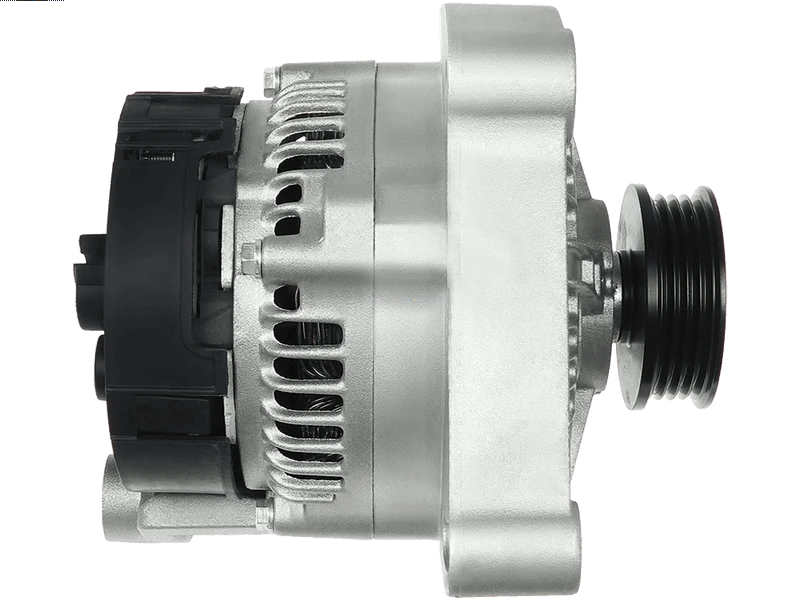

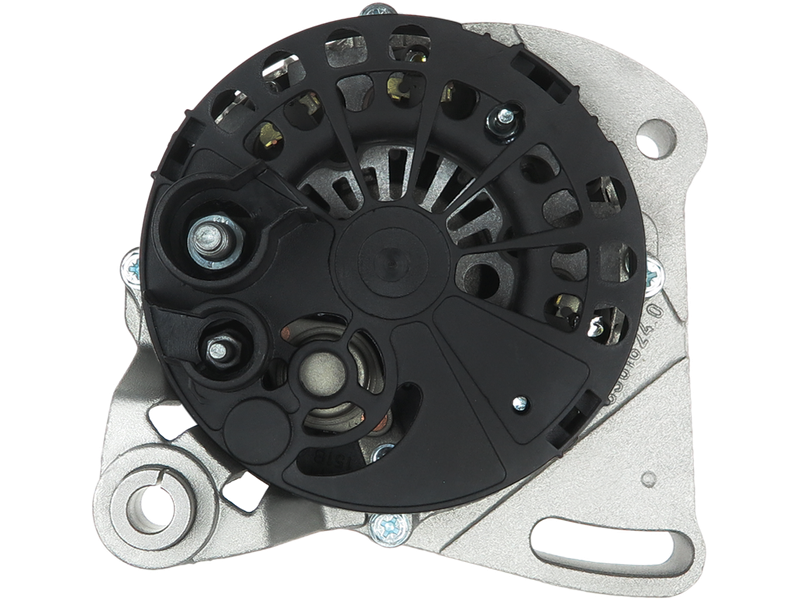

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 285.22 including GST
NZ$ 248.02 excluding GST
or four payments of $71.31
with
Learn More
each
A4136PR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 32 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 202 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 69 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Doblo 1.2 | [223A5.000] | 03.2001-01.2004 |
| FIAT | Palio 1.2 | [178B5.000] | 04.1996-02.2004 |
| FIAT | Palio 1.2 | [178B7.045] | 07.1997-08.2002 |
| FIAT | Palio 1.2 | [178C4.066] | 07.1997-08.2002 |
| FIAT | Palio 1.2 | [178E2.000] | 06.1999-10.2000 |
| FIAT | Palio 1.2 | [188A4.000] | 07.1997-08.2002 |
| FIAT | Punto 1.2 | [176A8.000] | 10.1993-09.1999 |
Reference Information
| 115672 | CARGO |
| 20104881OE | REAL |
| 2030188.1 | SANDO |
| 28-3708 | ELSTOCK |
| 46407649 | PEUGEOT |
| 46430525 | PEUGEOT |
| 46758242 | FIAT |
| 46769376 | PEUGEOT |
| 505.513.085.050 | PSH |
| 51700670 | FIAT |
| 553971RI | KUHNER |
| 5895037 | PEUGEOT |
| 63321292 | MAGNETI MARELLI |
| 63321601 | MAGNETI MARELLI |
| 63321790 | MAGNETI MARELLI |
| 71780099 | FIAT |
| 76769376 | FIAT |
| 89215322 | POWERMAX |
| ALE8901 | KRAUF |
| ALT4216 | WOODAUTO |
| ALTF434 | 3EFFE |
| CA2063IR | HC PARTS |
| CAL30188GS | CASCO |
| CGB-83708 | AINDE |
| DA1898 | DELCO |
| DRA0788 | DELCO |
| F032115672 | CARGO |
| LRA02757 | LUCAS |
| LRA2757 | LUCAS |
| MAN797 | MAGNETI MARELLI |
| PRAF434 | 3EFFE |
| STX100032 | STARDAX |
| STX100032R | STARDAX |
| STX101675 | STARDAX |
Video/Publications
