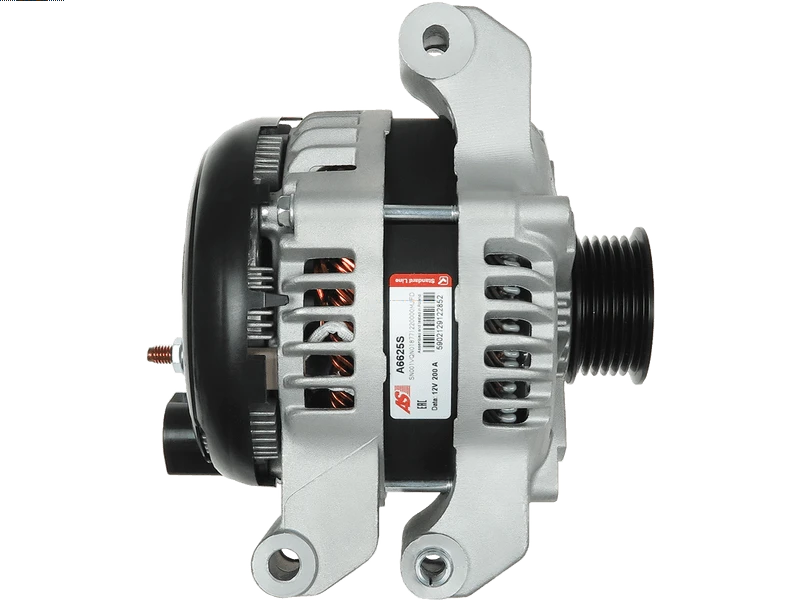

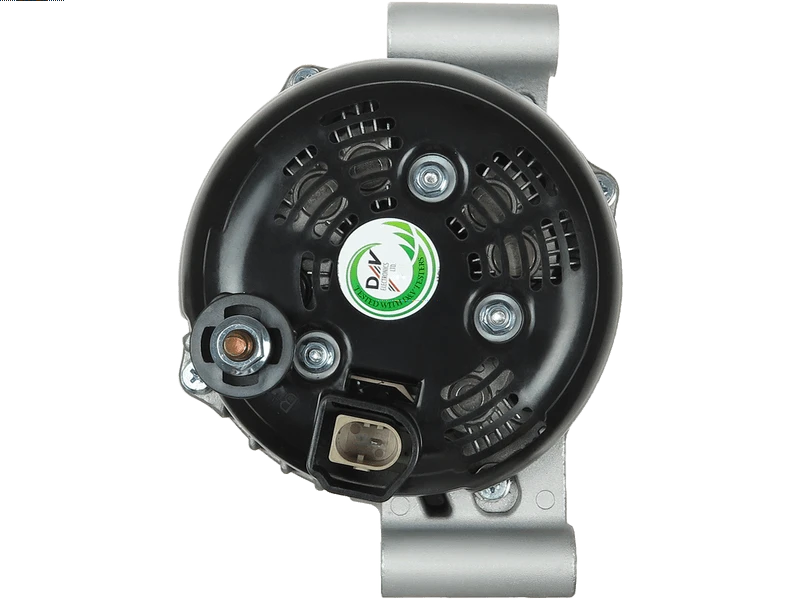

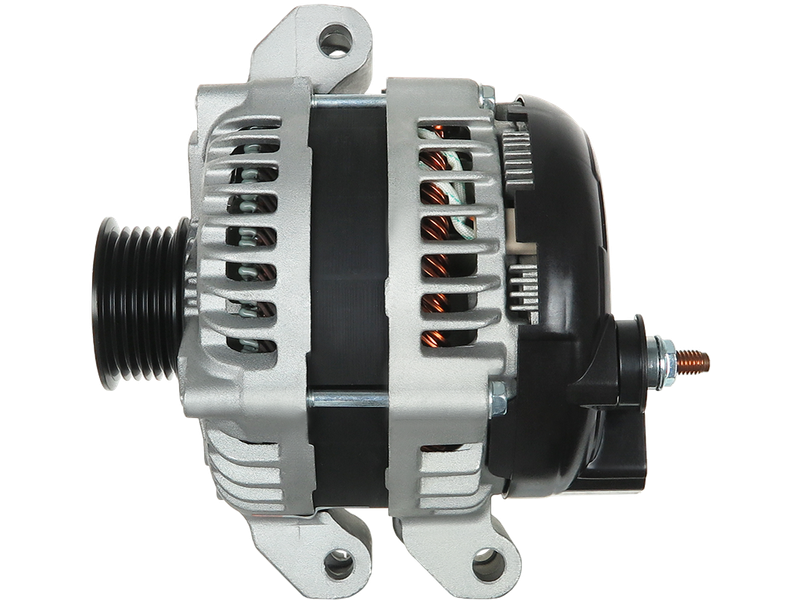

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 764.97 including GST
NZ$ 665.19 excluding GST
or four payments of $191.24
with
Learn More
each
A6625S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
104210-6370Associated Numbers
104210-6370
104210-6370
283531
28353124485
|
1042106370 |
Denso |
|---|---|
|
28353124485 |
Maserati |
|
505550200 |
PSH |
|
A133487 |
Short code |
|
A156988 |
Short code |
|
A161883 |
Short code |
|
A6625S |
AS-PL |

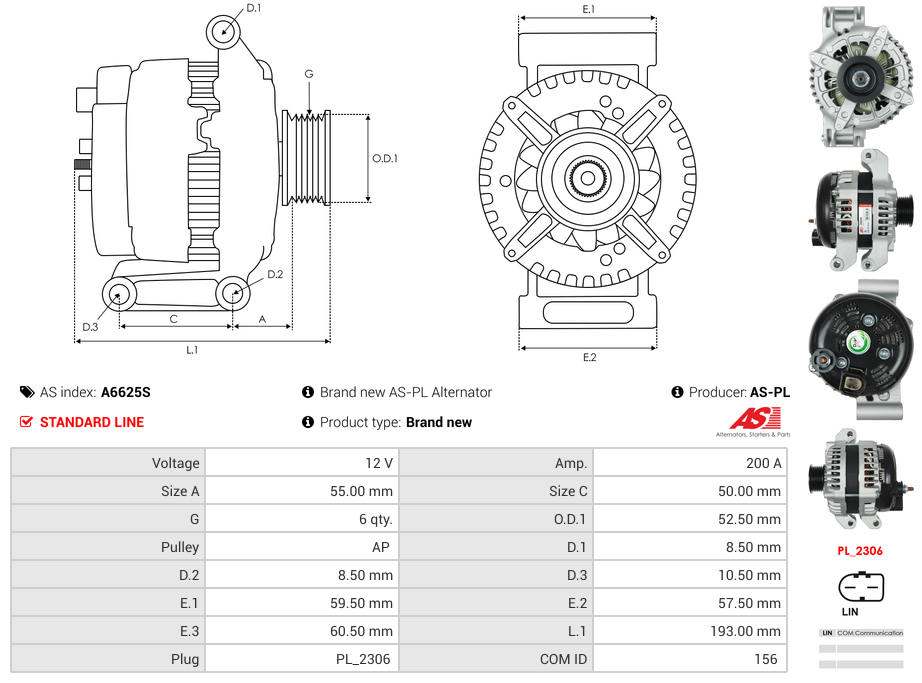

Specifications
| Amp | 200 A |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 50 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 59.50 mm |
| Pad mount thickness (E.2) | 57.50 mm |
| Pad mount thickness (E.3) | 60.50 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52.50 mm |
| Pulley to Mount Distance (A) | 55 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASERATI | Quattroporte 3.0 S Q4 V6 Turbocharged | [GASDOHC] | 01.2014- |
| MASERATI | Quattroporte 3.0 S Q4 V6 Turbocharged | [GASDOHC] | 01.2015- |
| MASERATI | Quattroporte 3.0 S Q4 V6 Turbocharged | [GASDOHC] | 01.2016- |
| MASERATI | Quattroporte 3.0 S V6 Turbocharged | [GASDOHC] | 01.2014- |
| MASERATI | Quattroporte 3.0 S V6 Turbocharged | [GASDOHC] | 01.2016- |
| MASERATI | Quattroporte 3.8 GTS V8 Turbocharged | [GASDOHC] | 01.2014- |
| MASERATI | Quattroporte 3.8 GTS V8 Turbocharged | [GASDOHC] | 01.2015- |
| MASERATI | Quattroporte 3.8 GTS V8 Turbocharged | [GASDOHC] | 01.2016- |
| MASERATI | Quattroporte 4.7 Sport GT S V8 Naturally Aspirated | [GASDOHC] | 01.2013- |
| MASERATI | Quattroporte 4.7 S V8 Naturally Aspirated | [GASDOHC] | 01.2013- |
Reference Information
| 104210-6370 | DENSO |
| 2013264A | REAL |
| 2040A46 | SANDO |
| 28353124485 | DENSO |
| A6625S | AS-PL |
| CAL40A46 | CASCO |
| UD17120A | AS-PL |
