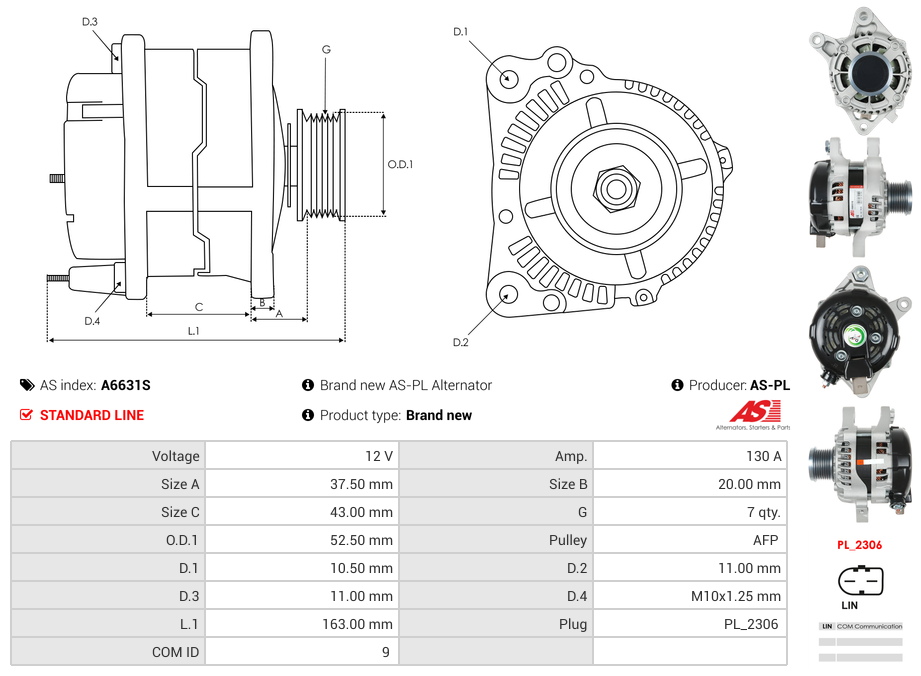

Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 11 mm |
| Diameter (D.4) | M10x1.25 mm |
| Grooves | 7 qty |
| Length (L.1) | 163 mm |
| Mount Inside Length or Pad Mount C-C (C) | 43 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52.5 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 37.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Hiace 2.7 | [2TRFE] | 01.2014- |
Reference Information
27060-75510 ALN2144 104211-3800 UD14844AVideo/Publications
104211-3800 27060-75510 ALN2144 UD14844AAdd Your Number
