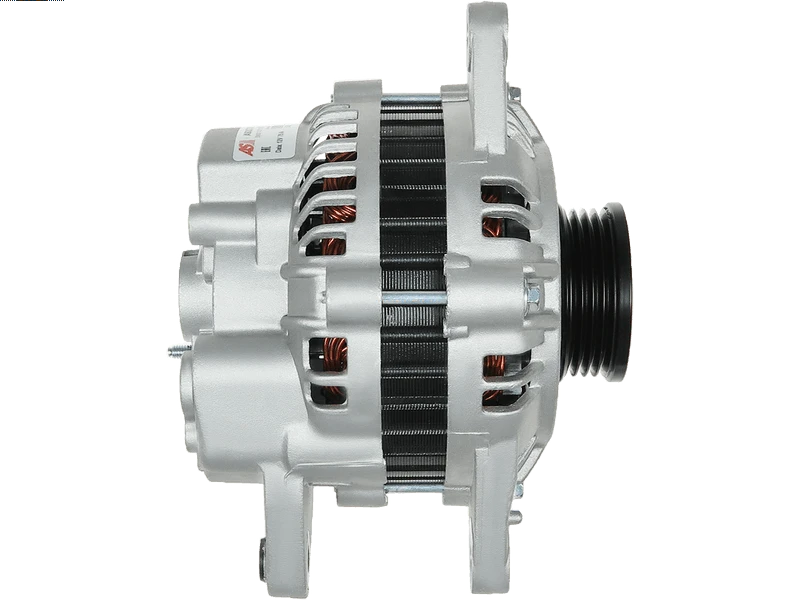

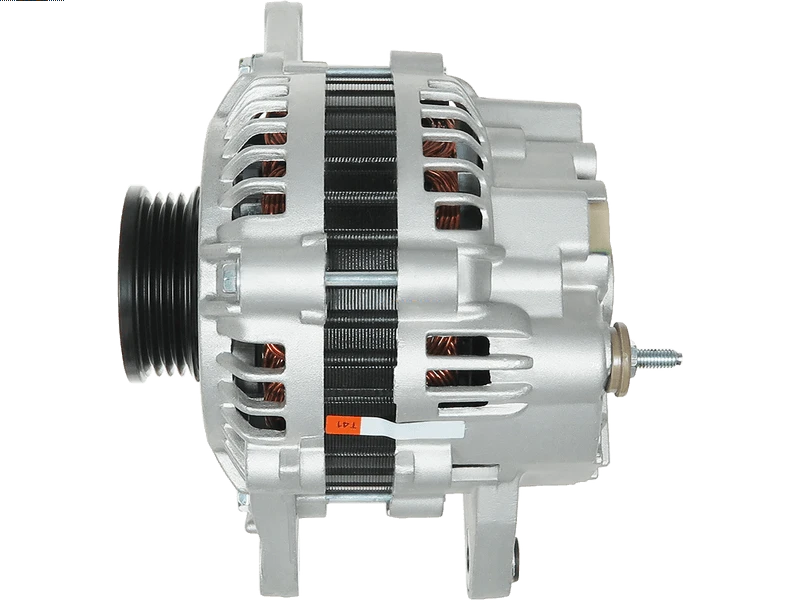

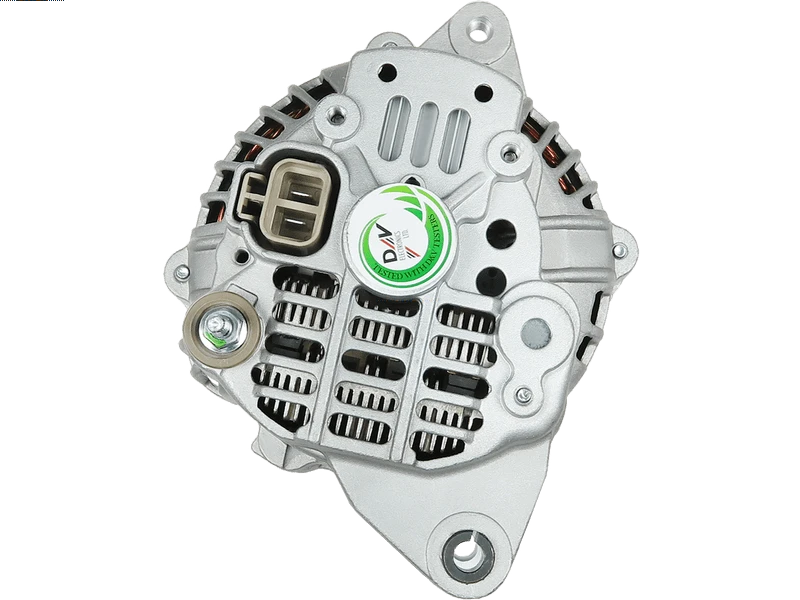

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HYUNDAI / KIA
Price:
NZ$ 299.67 including GST
NZ$ 260.58 excluding GST
or four payments of $74.92
with
Learn More
each
A9307S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
37300-22011Specifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 164 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | Solid |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Accent 1.3 | [G4E-A] | 01.2000- |
| HYUNDAI | Accent 1.3 | [G4EH] | 08.2002- |
| HYUNDAI | Accent 1.3 | [G4EH] | 10.1994-01.2000 |
| HYUNDAI | Accent 1.5 | [G4EB] | 01.2000-11.2005 |
| HYUNDAI | Accent 1.5 | [G4EC-G] | 09.2000-11.2005 |
| HYUNDAI | Accent 1.5 | [G4EK] | 01.1998-01.2001 |
| HYUNDAI | Accent 1.5 | [G4EK] | 01.2002-01.2002 |
| HYUNDAI | Accent 1.5 | [G4EK] | 10.1994-01.2000 |
| HYUNDAI | Accent 1.5 | [G4EK] | 10.1994-07.1999 |
| HYUNDAI | Accent 1.5 | 01.1995-01.1996 | |
| HYUNDAI | Accent 1.5 GL | 01.1995-01.1995 | |
| HYUNDAI | Accent 1.5 GL | 01.1997-01.1997 | |
| HYUNDAI | Accent 1.5 GS | 01.1997-01.1997 | |
| HYUNDAI | Accent 1.5 GT | 01.1996-01.1997 | |
| HYUNDAI | Accent 1.5 L | 01.1995-01.1997 | |
| HYUNDAI | Accent 1.6 | 01.2001-01.2001 | |
| HYUNDAI | Accent 1.6 | 01.2002-01.2002 | |
| HYUNDAI | Elantra 1.6 | [G4ED-G] | 05.2003- |
| HYUNDAI | Elantra 1.6 | [G4ED-G] | 06.2000- |
| HYUNDAI | Elantra 1.8 | [G4BB] | 06.2000- |
| HYUNDAI | Elantra 2.0 | [G4GC] | 06.2000-07.2006 |
| HYUNDAI | Elantra 2.0 | [G4GC] | 10.2003-07.2006 |
| HYUNDAI | Elantra 2.0 | [G4GC-G] | 06.2000- |
| HYUNDAI | Elantra 2.0 | [G4GC-G] | 06.2000-07.2006 |
| HYUNDAI | Elantra 2.0 GLS | [G4CP] | 01.2002-01.2002 |
| HYUNDAI | Elantra 2.0 GT | [G4CP] | 01.2002- |
| HYUNDAI | Excel 1.3 | [G4DG] | 01.1990-01.1995 |
| HYUNDAI | Excel 1.5 | 01.1991-01.1994 | |
| HYUNDAI | Excel 1.5 CX | 01.1993-01.1994 | |
| HYUNDAI | Excel 1.5 CXL | 01.1992-01.1994 | |
| HYUNDAI | Excel 1.5 GL | 01.1990-01.1994 | |
| HYUNDAI | Excel 1.5 GLS | 01.1990-01.1991 | |
| HYUNDAI | Excel 1.5 GS | 01.1992-01.1994 | |
| HYUNDAI | Excel 1.5 L | 01.1991-01.1992 | |
| HYUNDAI | Lantra 1.5 | [G4EK] | 04.1997- |
| HYUNDAI | Lantra 1.5 | [G4EK] | 12.1996-09.2000 |
| HYUNDAI | Lantra 1.6 | [4G61] | 02.1996- |
| HYUNDAI | Lantra 1.6 | [4G61] | 11.1995-09.2000 |
| HYUNDAI | Lantra 1.6 | [G4GR] | 02.1996- |
| HYUNDAI | Lantra 1.6 | [G4GR] | 11.1995-09.2000 |
| HYUNDAI | Lantra 1.8 | [G4GM] | 02.1996- |
| HYUNDAI | Lantra 1.8 | [G4GM] | 11.1995-09.2000 |
| HYUNDAI | Lantra 2.0 | [G4GF] | 08.1996-09.2000 |
| HYUNDAI | Lantra 2.0 | [G4GF] | 12.1996- |
| HYUNDAI | Matrix 1.8 | [G4GB-G] | 06.2001- |
| HYUNDAI | Scoupe 1.5 | [G4EK-TC] | 04.1991-05.1996 |
| HYUNDAI | Scoupe 1.5 | 01.1993-01.1995 | |
| HYUNDAI | Scoupe 1.5 LS | 01.1993-01.1993 | |
| HYUNDAI | Scoupe 1.5 LS | 01.1994-01.1995 | |
| PROTON | Persona 315 1.5 GLi | [4G15M] | 03.1996- |
| PROTON | Persona 315 1.5 GLSi | [G15B] | 09.1996- |
| PROTON | Persona 316 1.6 | [4G92] | 03.1996- |
| PROTON | Persona 316 1.6 GLXi | [4G92] | 03.1996- |
| PROTON | Persona 415 1.5 | [4G15] | 01.1994- |
| PROTON | Persona 416 1.6 | [4G92] | 12.1995- |
| PROTON | Persona 416 1.6 GLXi | [4G92] | 01.1994- |
Reference Information
| 002-C964 | ASHIKA |
| 0986042871 | BOSCH |
| 111309 | CARGO |
| 13701N | WAI / TRANSPO |
| 13701R | WAI / TRANSPO |
| 155.518.080 | PSH |
| 155.518.080.460 | PSH |
| 20193201OE | REAL |
| 20193201RE | REAL |
| 2032102.1 | SANDO |
| 210282 | ERA |
| 28-1955 | ELSTOCK |
| 2C964 | JAPKO |
| 3730022010 | HYUNDAI / KIA |
| 37300-22011 | HYUNDAI / KIA |
| 37300-22020 | HYUNDAI / KIA |
| 37300-22023 | HYUNDAI / KIA |
| 3730022600 | HYUNDAI / KIA |
| 37300-22600 | HYUNDAI / KIA |
| 3730022650SJ | HYUNDAI / KIA |
| 40879RI | KUHNER |
| 437336 | VALEO |
| 439346 | VALEO |
| 445928 | LOGISTIK |
| 600207 | VALEO |
| 89213014 | POWERMAX |
| 8EL011711-461 | HELLA |
| 90-31-7013 | WILSON |
| 90-31-7013N | WILSON |
| A12MH1207A2 | SIDAT |
| A12VA1208A2 | SIDAT |
| A2T39991 | MITSUBISHI |
| A2T39991A | MITSUBISHI |
| A-8394 | DIXIE |
| A9307S | AS-PL |
| AB175019 | MANDO |
| AB175054 | MANDO |
| AG0358 | GHIBAUDI |
| ALA0879 | KRAUF |
| ALC964 | JAPANPARTS |
| ALT268 | ROLLCO |
| ALT6180 | SIOM |
| ALT8704 | ELECTROLOG |
| ALTF081 | 3EFFE |
| ALTS771 | 3EFFE |
| ANM35685X | ANDEL |
| CAL32102GS | CASCO |
| CGB-13439 | AINDE |
| DRA3438 | DELCO |
| F032111309 | CARGO |
| J5110500 | HERTH+BUSS |
| JA879IR | HC PARTS |
| LRB00230 | LUCAS |
| LRB230 | LUCAS |
| STX100169 | STARDAX |
| STX100169R | STARDAX |
| STX100200 | STARDAX |
| TA000A35201 | VALEO |
| UD20825A | AS-PL |
Video/Publications
A9307SRelated Items
