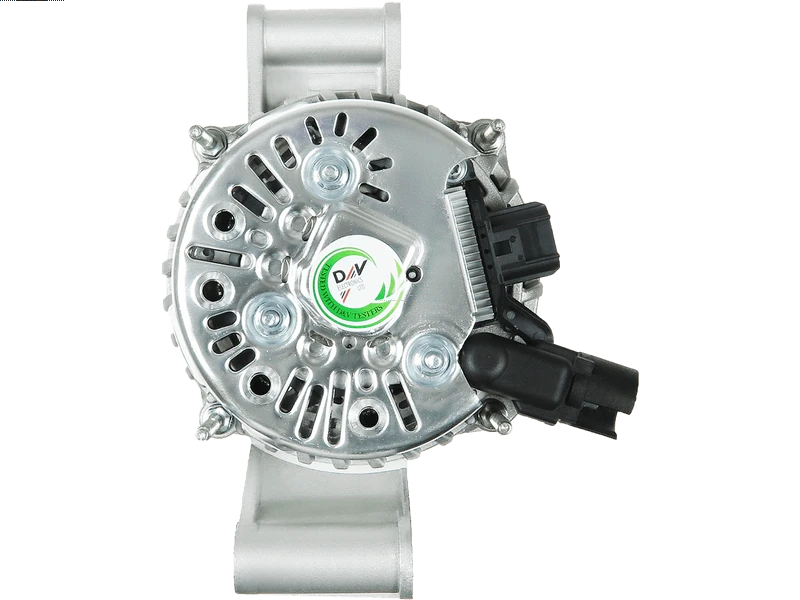

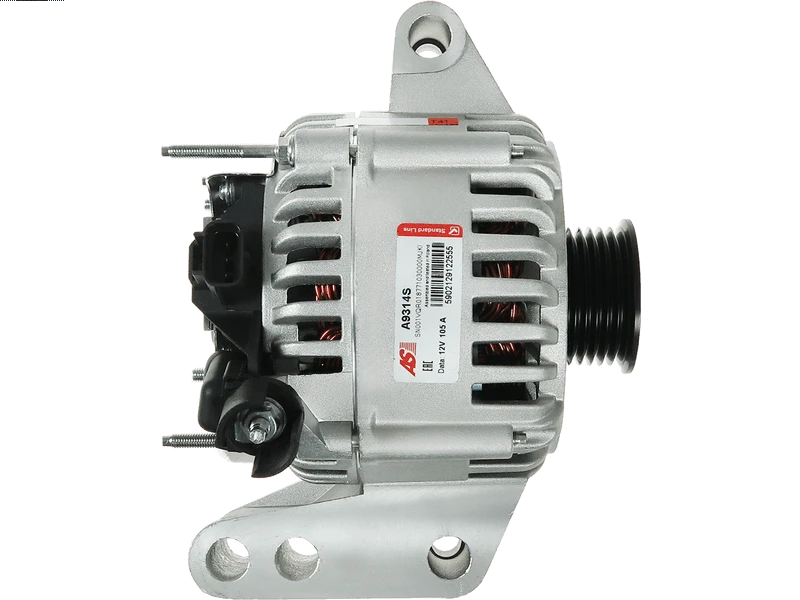

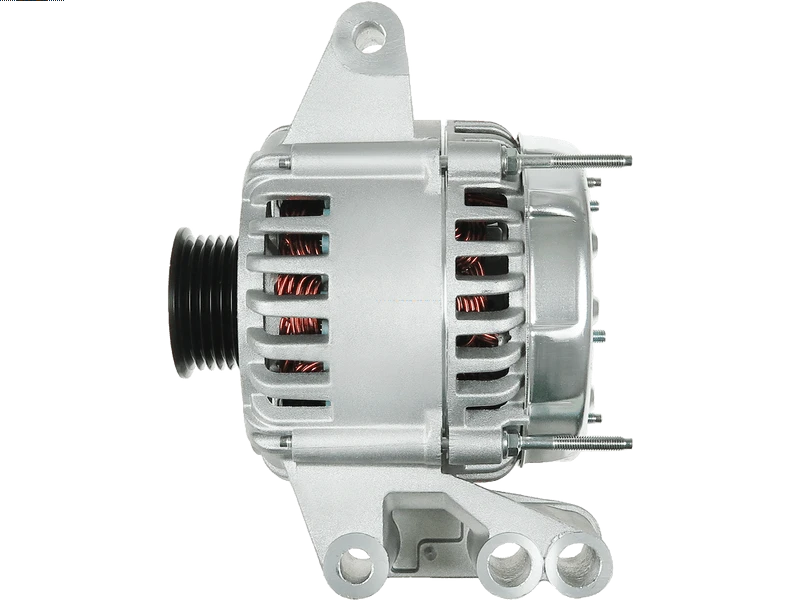

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 474.74 including GST
NZ$ 412.82 excluding GST
or four payments of $118.69
with
Learn More
each
A9314S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
1343649Specifications
| Amp | 105 A |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 14 mm |
| Diameter (D.4) | 14 mm |
| Length (L.1) | 155 mm |
| Mount Inside Length or Pad Mount C-C (C) | 74 mm |
| OEM Product | No |
| Pad mount thickness (E.2) | 55 mm |
| Pad mount thickness (E.3) | 55 mm |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 53 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | Solid |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Fiesta 2.0 | [N4JB] | 01.2004- |
Reference Information
| 1022772 | FORD |
| 1033781 | FORD |
| 1343649 | FORD |
| 1348870 | FORD |
| 1464787 | FORD |
| 1478324 | FORD |
| 2014106.1 | SANDO |
| 20150601OE | REAL |
| 210361 | ERA |
| 27-5541 | ELSTOCK |
| 40551 | CEVAM |
| 442049 | LOGISTIK |
| 553091RIV | KUHNER |
| 595.554.104 | PSH |
| 595.554.104.020 | PSH |
| 5S6Y10300AA | FORD |
| 5S6Y10300AB | FORD |
| 5S6Y10300AC | FORD |
| 5S6Y10300AD | FORD |
| 5S6YAA | FORD |
| 5S6YAB | FORD |
| 5S6YAC | FORD |
| 5S6YAD | FORD |
| 8533N | WAI / TRANSPO |
| 89215437 | POWERMAX |
| A9314S | AS-PL |
| AG1199 | GHIBAUDI |
| ALT161060 | SIOM |
| ALT21807 | WOODAUTO |
| ALT382 | ROLLCO |
| ALT8978 | ELECTROLOG |
| ALV3649 | KRAUF |
| ANM32242X | ANDEL |
| CA2134IR | HC PARTS |
| CAL14106GS | CASCO |
| DRA0022 | DELCO |
| LRA02926 | LUCAS |
| LRA2926 | LUCAS |
| STX101717 | STARDAX |
| UD17124A | AS-PL |
