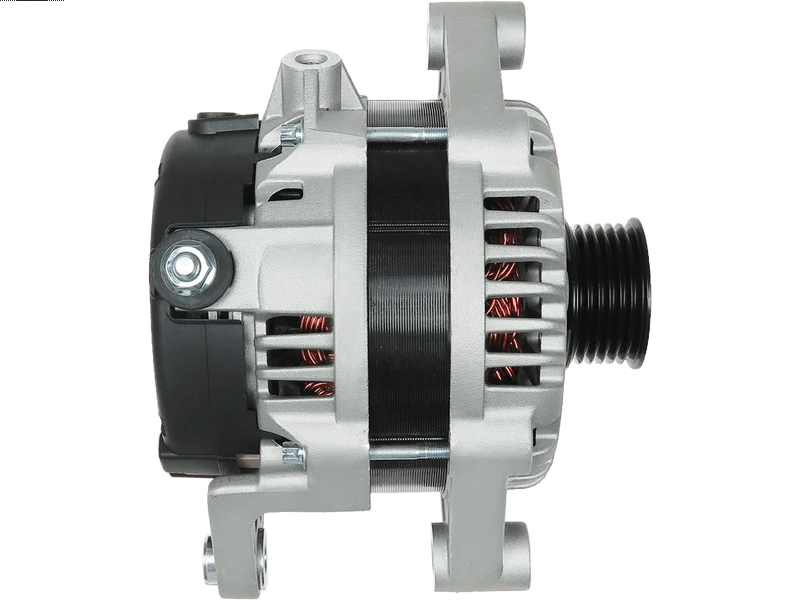

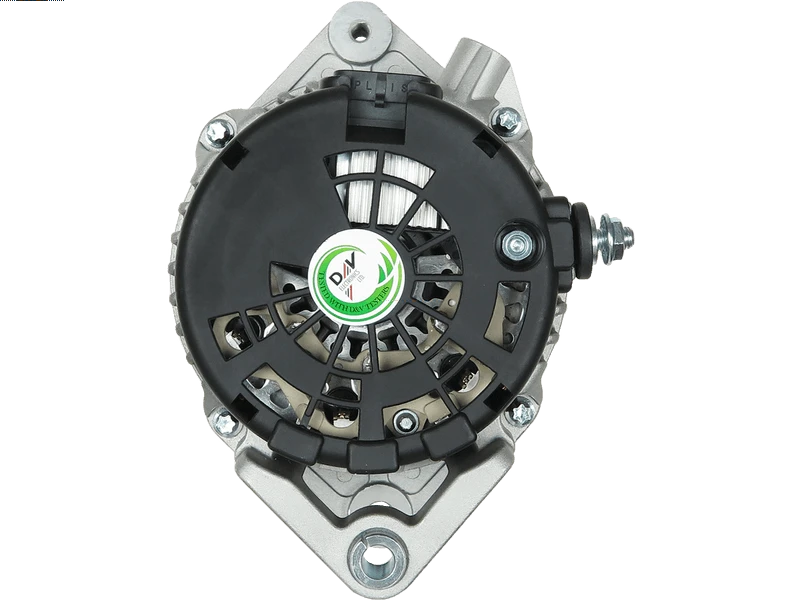

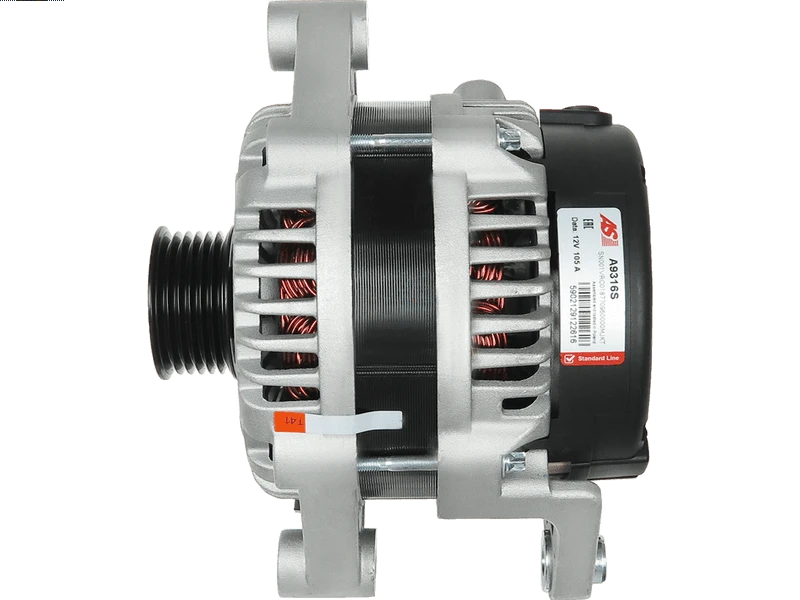

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DAEWOO
Price:
NZ$ 513.46 including GST
NZ$ 446.49 excluding GST
or four payments of $128.37
with
Learn More
each
A9316S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
31400-85Z00Specifications
| Amp | 105 A |
| Bottom Mounting Foot Width (B) | 33.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 59 mm |
| OEM Product | No |
| Plug Code | PL_4305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 51.50 mm |
| Pulley Type | Solid |
| Unit Type | DAEWOO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Optra 2.0 | 01.2004-12.2010 | |
| SUZUKI | Forenza 2.0 | 01.2004-12.2008 | |
| SUZUKI | Reno 2.0 | 01.2005-12.2008 |
Reference Information
| 20160711OE | REAL |
| 2046117.1 | SANDO |
| 235.516.105 | PSH |
| 31307 | RELIANCE |
| 31400-85Z00 | SUZUKI |
| 3140085Z00000 | SUZUKI |
| 31400-85Z01 | SUZUKI |
| 3140085Z01000 | SUZUKI |
| 3140085Z02 | SUZUKI |
| 8484N | WAI / TRANSPO |
| 8484R | WAI / TRANSPO |
| 90-01-4562 | WILSON |
| 90-01-4562N | WILSON |
| 96408588 | DELCO |
| 96838369 | CHEVROLET |
| 96989020 | CHEVROLET |
| A-1750 | DIXIE |
| ALD8484 | KRAUF |
| ALT481170 | SIOM |
| CAL46117AS | CASCO |
| UD17145A | AS-PL |
Video/Publications
A9316SRelated Items
