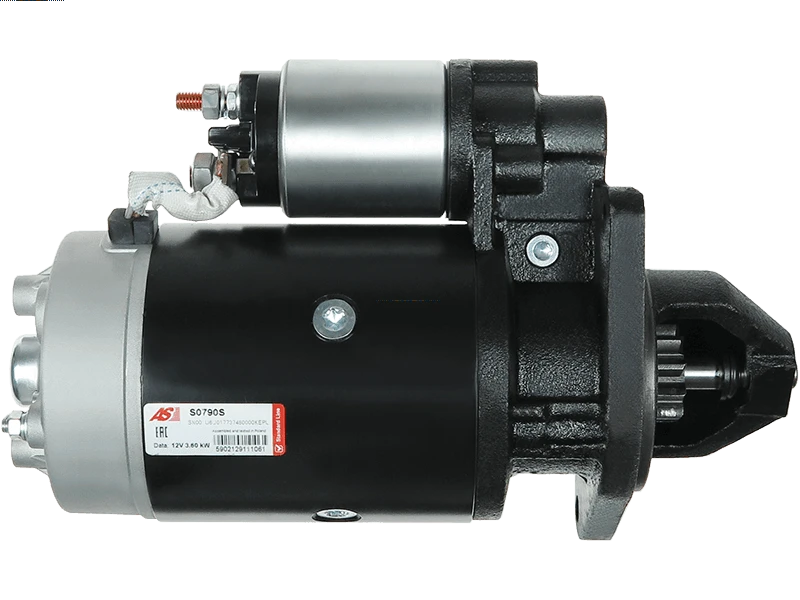

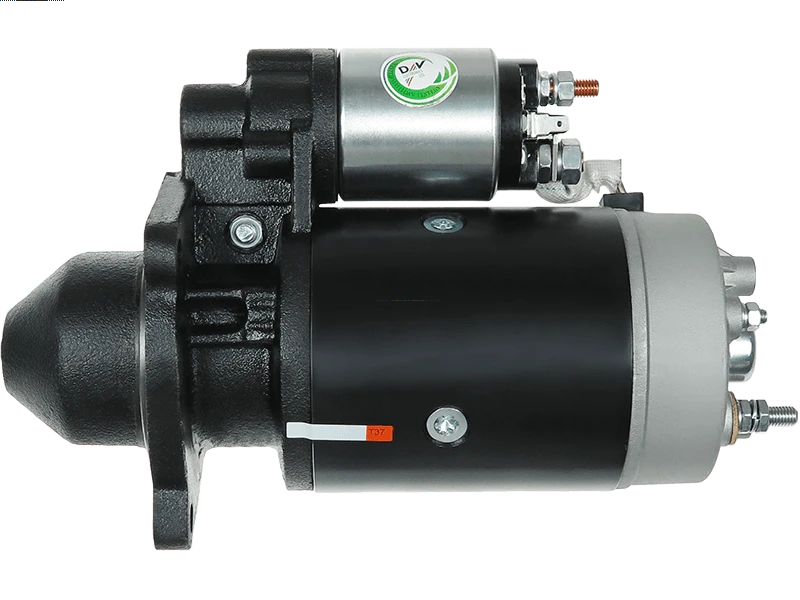

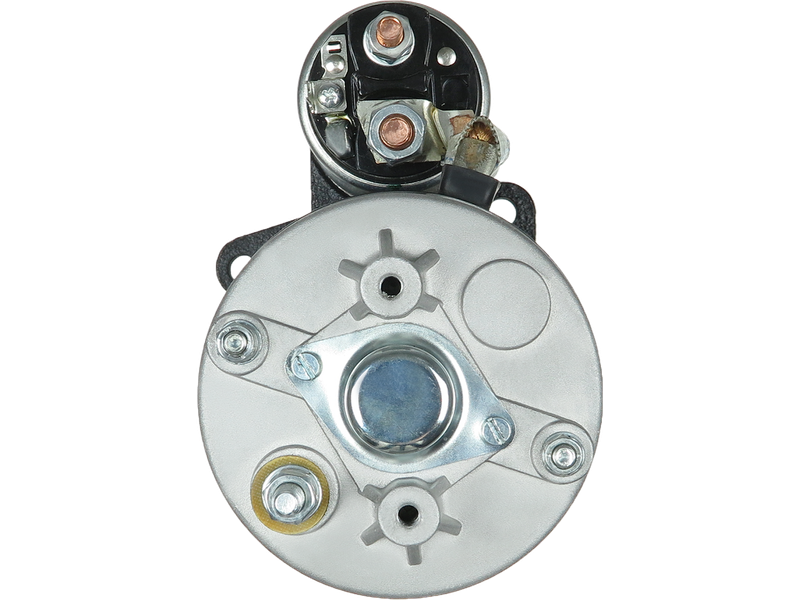

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 452.08 including GST
NZ$ 393.11 excluding GST
or four payments of $113.02
with
Learn More
each
S0790S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001369201Specifications
| Kilowatt | 3.6 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 146 mm |
| Mount Hole Center - Center (O.3) | 103 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NEW HOLLAND | 8160 | [TC456] | 01.1996-12.1999 |
| NEW HOLLAND | 8260 | [TD456] | 01.1996-12.1999 |
| NEW HOLLAND | 8360 | [WL456] | 01.1996-12.1999 |
| NEW HOLLAND | 8560 | [WM456] | 01.1996-12.1999 |
| NEW HOLLAND | M100 | [TC456] | 01.1996-12.1999 |
| NEW HOLLAND | M115 | [TD456] | 01.1996-12.1999 |
| NEW HOLLAND | M135 | [WD456] | 01.1996-12.1999 |
| NEW HOLLAND | M160 | [WM456] | 01.1996-12.1999 |
Reference Information
| 0001369200 | BOSCH |
| 0001369201 | BOSCH |
| 11.130.659 | ISKRA / LETRIKA |
| 113968 | CARGO |
| 120-30142 | ROBERT'S |
| 18034N | WAI / TRANSPO |
| 20401043BN | REAL |
| 25-2448 | ELSTOCK |
| 260-69109 | DIXIE |
| 331975 | LOGISTIK |
| 590.532.103.010 | PSH |
| 6010340.0 | SANDO |
| 72735896 | MAHLE |
| 81868126 | FORD |
| 82005343 | NEW HOLLAND |
| 82013923 | NEW HOLLAND |
| 86513093 | FORD |
| 91-15-7065 | WILSON |
| AZJ3212 | ISKRA / LETRIKA |
| CGB-52448 | AINDE |
| CST10340AS | CASCO |
| F032113968 | CARGO |
| F0NN7H022BA | FORD |
| F1NN11000AA | FORD |
| IS0659 | ISKRA / LETRIKA |
| LRS01498 | LUCAS |
| LRS1498 | LUCAS |
| MAHMS268 | WOODAUTO |
| MAV123400A | SIOM |
| MS268 | MAHLE |
| STR10099 | ELECTROLOG |
| STR50774 | WOODAUTO |
| STR79042 | ELECTROLOG |
| UD16608S | AS-PL |
