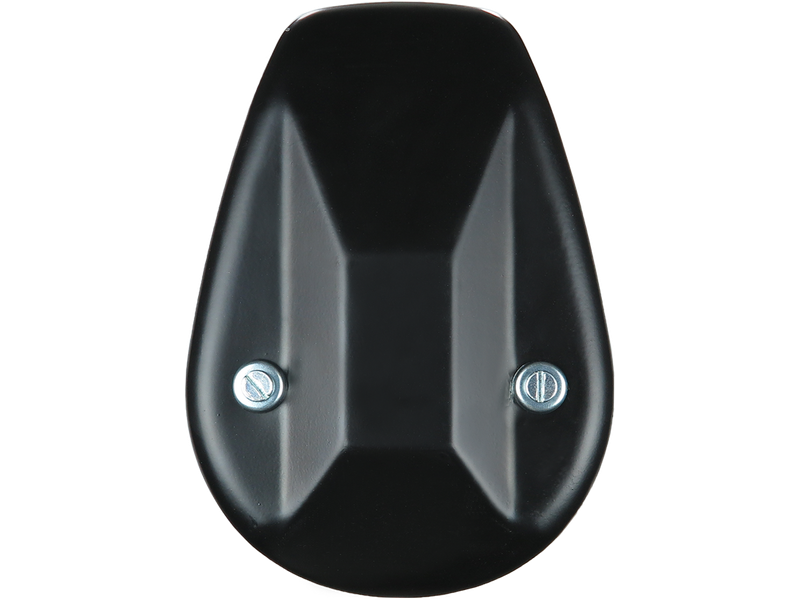

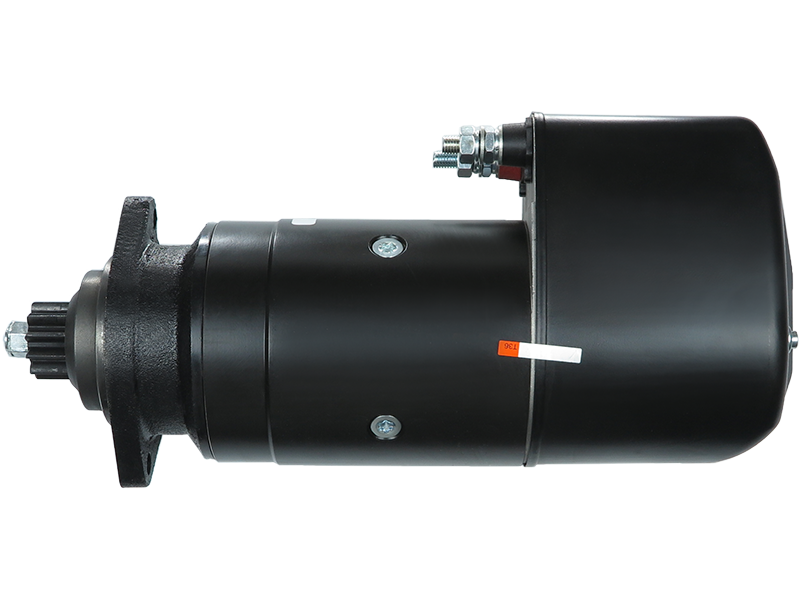

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 819.67 including GST
NZ$ 712.76 excluding GST
or four payments of $204.92
with
Learn More
each
S0862S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001417060Specifications
| Kilowatt | 6.60 kW |
| Length (L.1) | 406 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DEUTZ | Engine | [F8L413] | |
| DEUTZ | Engine 9.6 | [F6L413] | 01.1973-12.1975 |
Reference Information
| 0001411029 | BOSCH |
| 0001417024 | BOSCH |
| 0001417060 | BOSCH |
| 0001417124 | BOSCH |
| 01173432 | DEUTZ |
| 01174647 | DEUTZ |
| 11090075 | EUROTEC |
| 11.139.088 | ISKRA / LETRIKA |
| 11.139.539 | ISKRA / LETRIKA |
| 1174645 | DAF |
| 120-40129 | ROBERT'S |
| 19024064 | DELCO |
| 19024168 | DELCO |
| 20401797BN | REAL |
| 330296 | LOGISTIK |
| 331833 | LOGISTIK |
| 561.206.113 | PSH |
| 6010797.0 | SANDO |
| 6290051 | LIEBHERR |
| 72492688 | MAHLE |
| 88213630 | POWERMAX |
| 91-15-7070 | WILSON |
| AZK5440 | ISKRA / LETRIKA |
| AZK5580 | ISKRA / LETRIKA |
| B941506 | CASE |
| CST10797AS | CASCO |
| IS9079 | ISKRA / LETRIKA |
| MAV127970A | SIOM |
| MS530 | MAHLE |
| MS 530 | MAHLE |
| S0862S | AS-PL |
| S133.951 | PSH |
| STB2499 | KRAUF |
| STR10114 | ELECTROLOG |
| STR1322 | ELECTROLOG |
| STR50199 | WOODAUTO |
| STR79519 | ELECTROLOG |
| STR79520 | ELECTROLOG |
| STRS903 | 3EFFE |
| UD16641S | AS-PL |
