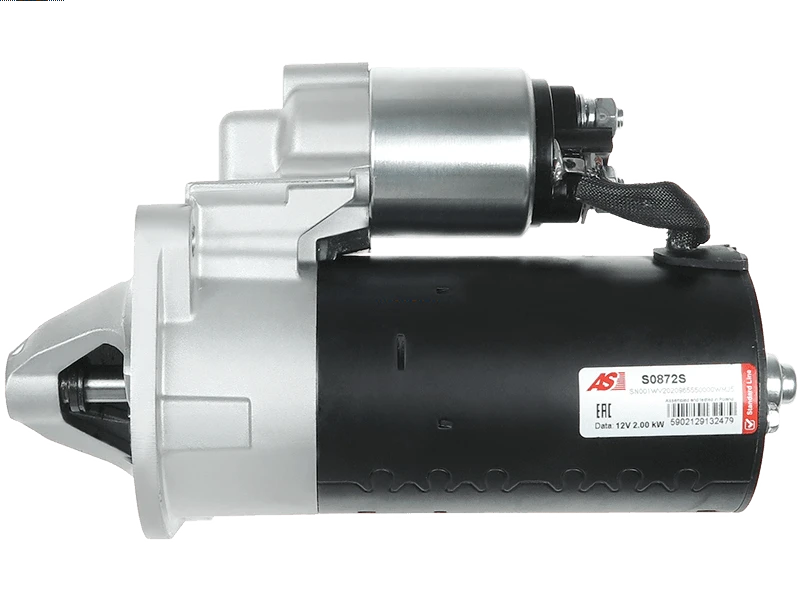

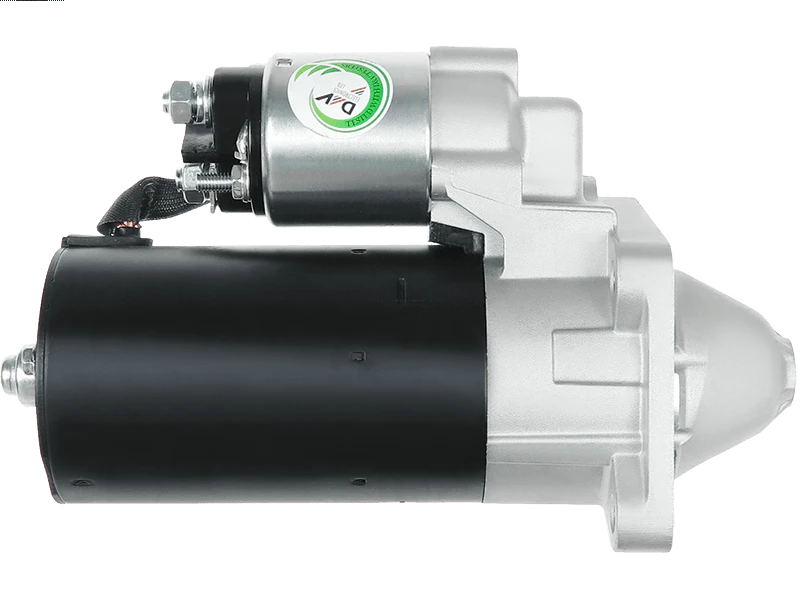

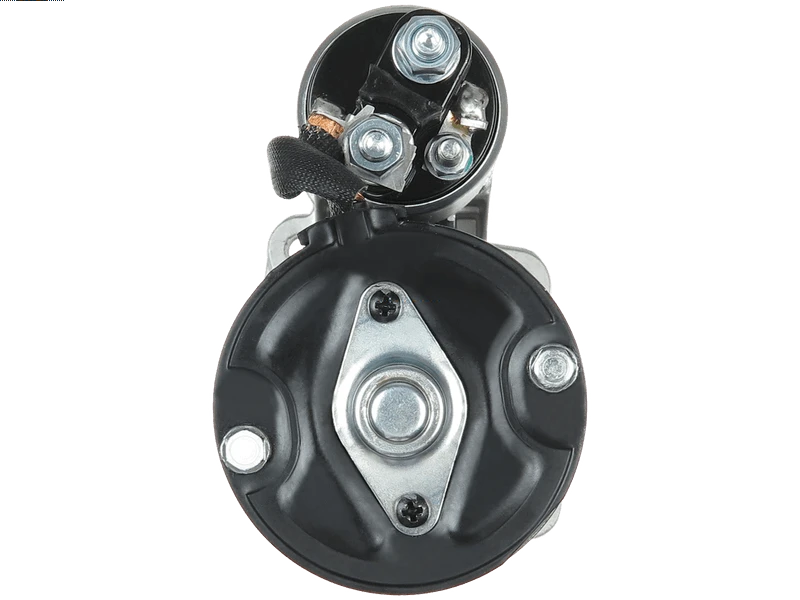

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 255.12 including GST
NZ$ 221.84 excluding GST
or four payments of $63.78
with
Learn More
each
S9071
S0872S
2
Information
0001109204Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 240 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Center - Center (O.2) | 67 mm |
| Mount Hole Center - Center (O.3) | 65 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | C-Max 1.8 TDCi | [KKDA] | 02.2007- |
| FORD | C-Max 1.8 TDCi | [KKDA] | 02.2007-09.2010 |
| FORD | C-Max 1.8 TDCi | [KKDB] | 02.2007-09.2010 |
| FORD | Focus 1.8 TDCi | [KKDA] | 01.2005-09.2012 |
| FORD | Focus 1.8 TDCi | [KKDA] | 04.2005-01.2008 |
| FORD | Focus 1.8 TDCi | [KKDA] | 04.2005-09.2012 |
| FORD | Focus 1.8 TDCi | [KKDA] | 07.2004-09.2012 |
| FORD | Focus 1.8 TDCi C-Max | [KKDA] | 01.2005-03.2007 |
| FORD | Focus 1.8 TDCi C-Max | [KKDA] | 04.2005-03.2007 |
| FORD | Focus 1.8 TDCi C-Max | [KKDB] | 01.2005-03.2007 |
| FORD | Galaxy 1.8 TDCi | [FFWA] | 03.2006- |
| FORD | Galaxy 1.8 TDCi | [FFWA] | 05.2006-06.2015 |
| FORD | Galaxy 1.8 TDCi | [QYWA] | 05.2006- |
| FORD | Galaxy 1.8 TDCi | [QYWA] | 05.2006-06.2015 |
| FORD | Mondeo 1.8 TDCi | [FFBA] | 03.2007- |
| FORD | Mondeo 1.8 TDCi | [FFBA] | 03.2007-01.2015 |
| FORD | Mondeo 1.8 TDCi | [FFBA] | 03.2007-12.2012 |
| FORD | Mondeo 1.8 TDCi | [KHBA] | 06.2007- |
| FORD | Mondeo 1.8 TDCi | [KHBA] | 06.2007-01.2015 |
| FORD | Mondeo 1.8 TDCi | [KHBA] | 06.2007-12.2012 |
| FORD | Mondeo 1.8 TDCi | [QYBA] | 03.2007- |
| FORD | Mondeo 1.8 TDCi | [QYBA] | 06.2007- |
| FORD | Mondeo 1.8 TDCi | [QYBA] | 06.2007-01.2015 |
| FORD | Mondeo 1.8 TDCi | [QYBA] | 06.2007-12.2012 |
| FORD | S-Max 1.8 TDCi | [FFWA] | 01.2007- |
| FORD | S-Max 1.8 TDCi | [QYWA] | 05.2006- |
| FORD | S-Max 1.8 TDCi | [QYWA] | 05.2006-12.2014 |
Reference Information
| 0001109204 | BOSCH |
| 0001109240 | BOSCH |
| 0001109340 | BOSCH |
| 0001109341 | BOSCH |
| 0001109389 | BOSCH |
| 0001109390 | BOSCH |
| 0001109523 | BOSCH |
| 0986021820 | BOSCH |
| 101408 | KUHNER |
| 101408B | KUHNER |
| 101408V | KUHNER |
| 10439771 | ALANKO |
| 11021820 | EUROTEC |
| 114092 | CARGO |
| 12091 | EAI |
| 12130206 | AES |
| 12130304 | AES |
| 1253808 | FORD |
| 1387092 | FORD |
| 1480550 | FORD |
| 1564725 | FORD |
| 1671579 | FORD |
| 1728770 | FORD |
| 1756792 | FORD |
| 1756794 | FORD |
| 1986S01038 | BOSCH |
| 20-100-01044 | VISTEON |
| 20401913OE | REAL |
| 20450421BN | REAL |
| 20450421OE | REAL |
| 220415 | ERA |
| 220415A | ERA |
| 220416 | ERA |
| 22.1408 | CQ |
| 25-3420 | ELSTOCK |
| 25-4239 | ELSTOCK |
| 3125 | CEVAM |
| 32513N | WAI / TRANSPO |
| 32513R | WAI / TRANSPO |
| 332103 | LOGISTIK |
| 42109204 | HERTH+BUSS |
| 438412 | VALEO |
| 458449 | VALEO |
| 458636 | VALEO |
| 4M5T-11000-KA | FORD |
| 4M5T-11000-KB | FORD |
| 4M5T-11000-KC | FORD |
| 4M5T-11000-KD | FORD |
| 4M5T-11000-KE | FORD |
| 4M5TKC | FORD |
| 4M5TKD | FORD |
| 4M5TKE | FORD |
| 5014254 | MEAT & DORIA |
| 590.549.093.010 | PSH |
| 590.549.093.018 | PSH |
| 590.549.093.020 | PSH |
| 590.549.093.028 | PSH |
| 590.549.093.210 | PSH |
| 590.549.093.215 | PSH |
| 590.549.093.230 | PSH |
| 590.549.093.235 | PSH |
| 590.549.093.280 | PSH |
| 590.549.093.341 | PSH |
| 590.549.093.440 | PSH |
| 590.549.093.460 | PSH |
| 6010319.1 | SANDO |
| 6014124.0 | SANDO |
| 6014124.1 | SANDO |
| 6G9N-11000-EA | FORD |
| 6G9N-11000-EB | FORD |
| 6G9N-11000-EC | FORD |
| 6G9NEA | FORD |
| 6G9NEB | FORD |
| 6G9NEC | FORD |
| 726100 | VALEO |
| 726195 | VALEO |
| 8080252 | FRIESEN |
| 8212262 | POWERMAX |
| 88212262 | POWERMAX |
| 8EA012526-131 | HELLA |
| 8EA738258-511 | HELLA |
| 944280802520 | MAGNETI MARELLI |
| 9872 | CEVAM |
| A21820 | ATL AUTOTECHNIK |
| AC-CBS1408 | ACAUTO |
| AEU1408 | AUTOELECTRO |
| AI-80038 | AINDE |
| ANM24040X | ANDEL |
| AZMT-53-010-1024 | A.Z. MEISTERTEILE |
| BOS0001109389 | WOODAUTO |
| BST2121 | BORG & BECK |
| CS1408 | HC PARTS |
| CST10319GS | CASCO |
| CST14124AS | CASCO |
| CST14124GS | CASCO |
| DRT1820 | DELCO |
| EZ0358 | ELTA AUTOMOTIVE |
| F032114092 | CARGO |
| F042S0H090 | BOSCH |
| GS109389-A | GPARTS |
| GS109389B-R | GPARTS |
| HCS1408 | HC PARTS |
| LRS02249 | LUCAS |
| LRS02567 | LUCAS |
| LRS2249 | LUCAS |
| LRS2567 | LUCAS |
| MAV123190 | SIOM |
| MSN8098 | MAGNETI MARELLI |
| PRSS244 | 3EFFE |
| RE4M5T-11000-KE | FORD |
| RE6GN9-11000-EC | FORD |
| RNL109204 | RNL |
| RNL4M5TKB | RNL |
| RNL4M5TKBT | RNL |
| S0872S | AS-PL |
| S100220 | BTS TURBO |
| S100252 | BTS TURBO |
| S101212 | BTS TURBO |
| S101876 | BTS TURBO |
| S12VS0155 | SIDAT |
| S12VS0155A2 | SIDAT |
| S134.472 | PSH |
| S144.575 | PSH |
| SBO319 | AUTOTEAM |
| SEG0001109389 | WOODAUTO |
| SFO124 | AUTOTEAM |
| SFO124A | AUTOTEAM |
| SG0794 | GHIBAUDI |
| SR0816X | BOSCH |
| SS109389-A | GPARTS |
| SS109389B-R | GPARTS |
| SS276 | SOVEREIGN |
| STA0427R | BOVEZ |
| STF1408 | KRAUF |
| STM512 | ROLLCO |
| STR1948 | ELECTROLOG |
| STR50283 | WOODAUTO |
| STR61819 | WOODAUTO |
| STR89007 | ELECTROLOG |
| STRH090 | UNIPOINT |
| STRS244 | 3EFFE |
| STX200106 | STARDAX |
| STX200106R | STARDAX |
| UD17267S | AS-PL |
| WOOSTR50283 | WOODAUTO |
| WOOSTR61819 | WOODAUTO |
