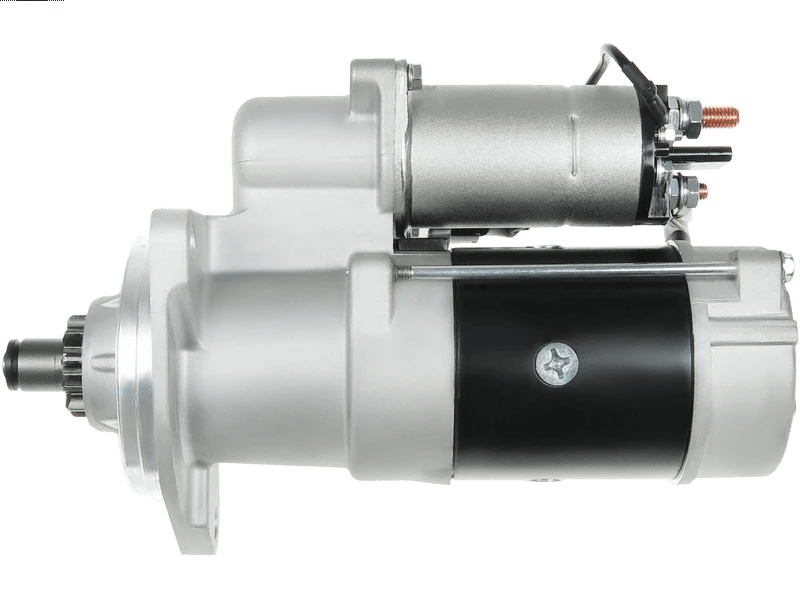

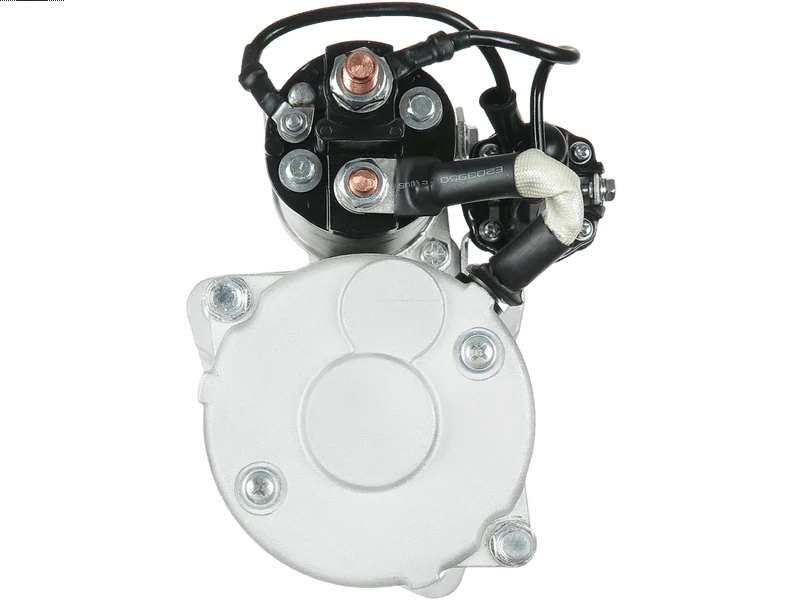

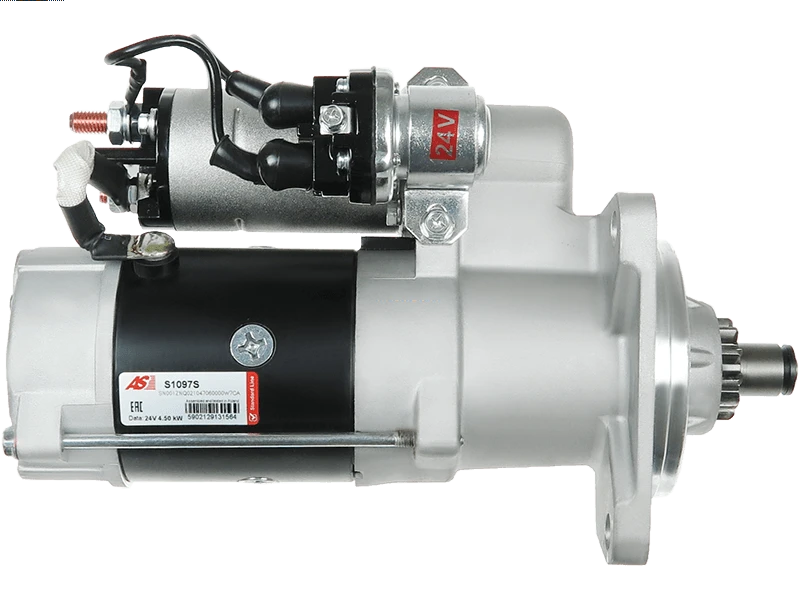

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 619.28 including GST
NZ$ 538.50 excluding GST
or four payments of $154.82
with
Learn More
each
S1097S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8200475Associated Numbers
vxs930
Specifications
| Kilowatt | 4.50 kW |
| Length (L.1) | 306 mm |
| Mount Hole Center - Center (O.1) | 111 mm |
| Mount Hole Center - Center (O.2) | 135 mm |
| Mount Hole Center - Center (O.3) | 111 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| Mount Hole Diameter (C.3) | 13 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CRAWLER | D355S-5 | ||
| CRAWLER | DH220-5 | ||
| CRAWLER | DX150 | ||
| CRAWLER | Solar 140LC-V | ||
| CRAWLER | Solar 175LC-V | ||
| CRAWLER | Solar 225LC-V | ||
| CRAWLER | Solar 255LC-V | ||
| DOOSAN | 200-V | ||
| DOOSAN | 250-V YT | ||
| DOOSAN | DH215-9 | ||
| DOOSAN | DX140W TIER-II | ||
| DOOSAN | DX225 | ||
| DOOSAN | Kraan | ||
| DOOSAN | Solar 140W-V | ||
| DOOSAN | Solar 160W-V | ||
| DOOSAN | Solar 180W-V | ||
| DOOSAN | Solar 210W-V |
Reference Information
| 140-29126 | ROBERT'S |
| 19080032 | DELCO |
| 200-25201 | DIXIE |
| 20460106BN | REAL |
| 20460106OE | REAL |
| 231.004.113 | PSH |
| 254761 | KUHNER |
| 254761D | KUHNER |
| 254761V | KUHNER |
| 300516-00003 | DAEWOO |
| 300516-00015 | DAEWOO |
| 300516-00041 | DAEWOO |
| 300516-00041A | DAEWOO |
| 6046601.0 | SANDO |
| 6046601.1 | SANDO |
| 65.26201-7063 | DOOSAN |
| 65.26201-7076 | DOOSAN |
| 65.26201-7076A | DOOSAN |
| 65.26201-7077 | DOOSAN |
| 65.26201-7077A | DOOSAN |
| 65.26201-7077B | DOOSAN |
| 65.26201-7077D | DAEWOO |
| 8200475 | DELCO |
| 8200734 | DELCO |
| 8200777 | DELCO |
| CST46601AS | CASCO |
| CST46601GS | CASCO |
| DRS0632 | DELCO |
| DRS0632N | DELCO |
| DS1742 | DELCO |
| S1097S | AS-PL |
| S-80294 | DIXIE |
| STA0013 | KRAUF |
| STA5013 | KRAUF |
| STD0013 | KRAUF |
| STD5013 | KRAUF |
| STD7013 | KRAUF |
| STM0013 | KRAUF |
| STR2197 | ELECTROLOG |
| STR2717 | ELECTROLOG |
| STR80199 | WOODAUTO |
| UD18485S | AS-PL |
Video/Publications
