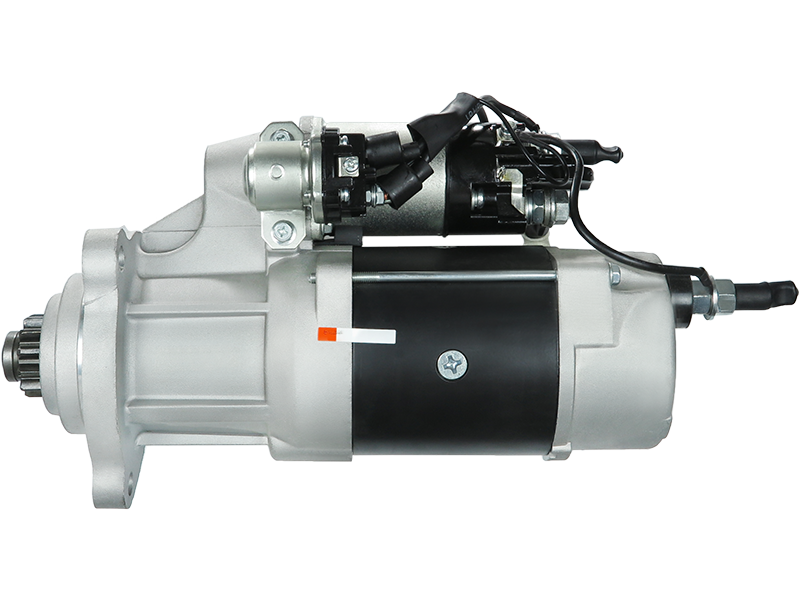

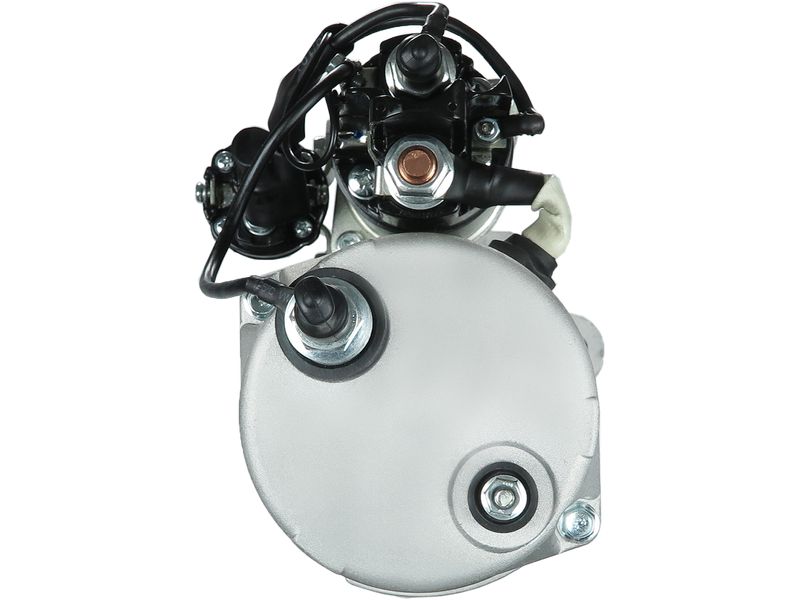

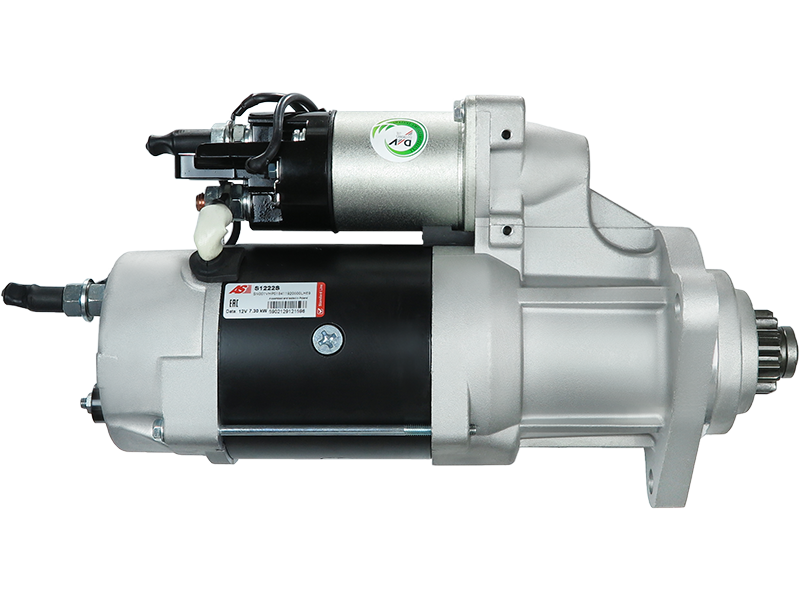

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 852.94 including GST
NZ$ 741.69 excluding GST
or four payments of $213.24
with
Learn More
each
S1222S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
8200085Specifications
| Kilowatt | 7.30 kW |
| Length (L.1) | 418 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KALMAR | Ottawa 8.9 4X2 | 01.2012-12.2016 | |
| KENWORTH | T400 8.9 | 01.2009-12.2017 | |
| KENWORTH | T400 8.9 | 01.2011-12.2017 | |
| KENWORTH | T440 8.9 | 01.2011-12.2017 | |
| KENWORTH | T600 8.9 | 01.2002-12.2007 | |
| KENWORTH | T800 8.9 | 01.2002-12.2014 | |
| KENWORTH | W900 8.9 | 01.2002-12.2016 | |
| KENWORTH | W900 8.9 | 01.2010-12.2016 | |
| MACK | GU4 8.9 Models | 01.2012-12.2016 | |
| MACK | GU5 8.9 Models | 01.2012-12.2016 | |
| MACK | LEU 8.9 Models | 01.2011-12.2016 | |
| MACK | MRU 8.9 Models | 01.2010-12.2017 | |
| MACK | Pinnacle 8.9 | 01.2012-12.2016 | |
| TIGERCAT | H822 | 01.2003-12.2008 | |
| TIGERCAT | H822 8.3 | 01.2003-12.2008 | |
| TIGERCAT | H830 | 01.2003-12.2008 | |
| WILLMAR | 8650 8.3 Eagle | 01.2004-12.2006 |
Reference Information
| 140-39124 | ROBERT'S |
| 19011513 | DELCO |
| 201-39107 | DIXIE |
| 3102766 | CUMMINS |
| 3102919 | CUMMINS |
| 3675298RX | CUMMINS |
| 5284104 | CUMMINS |
| 6908N | WAI / TRANSPO |
| 6908R | WAI / TRANSPO |
| 8200085 | DELCO |
| 91-01-4625 | WILSON |
| 91-01-4625N | WILSON |
| REM8200085 | WOODAUTO |
| STR80009 | WOODAUTO |
| STR80196 | WOODAUTO |
| STRF278 | 3EFFE |
| STRJ394 | 3EFFE |
| TS-1750 | DIXIE |
| UD17075S | AS-PL |
