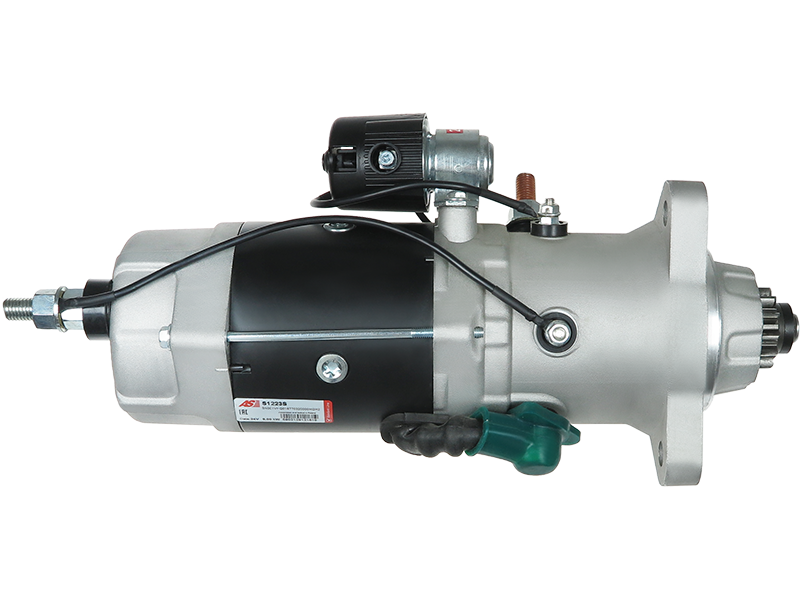

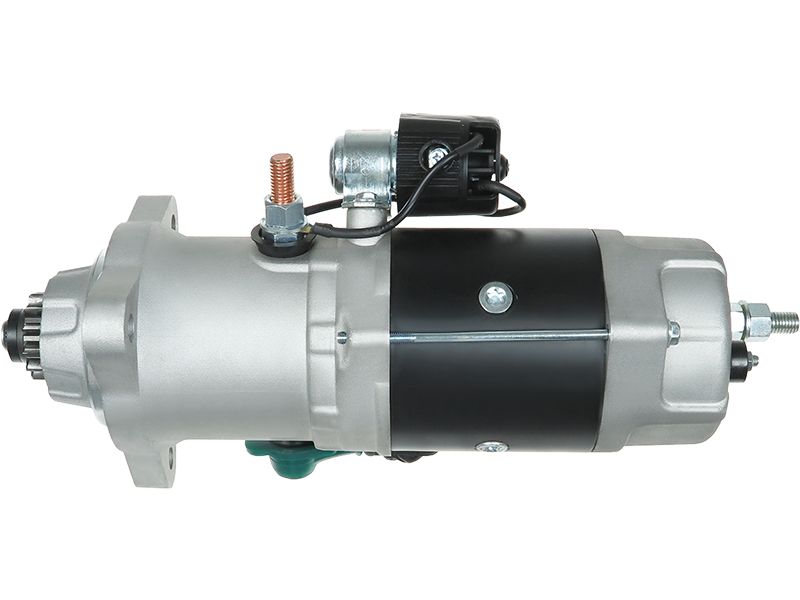

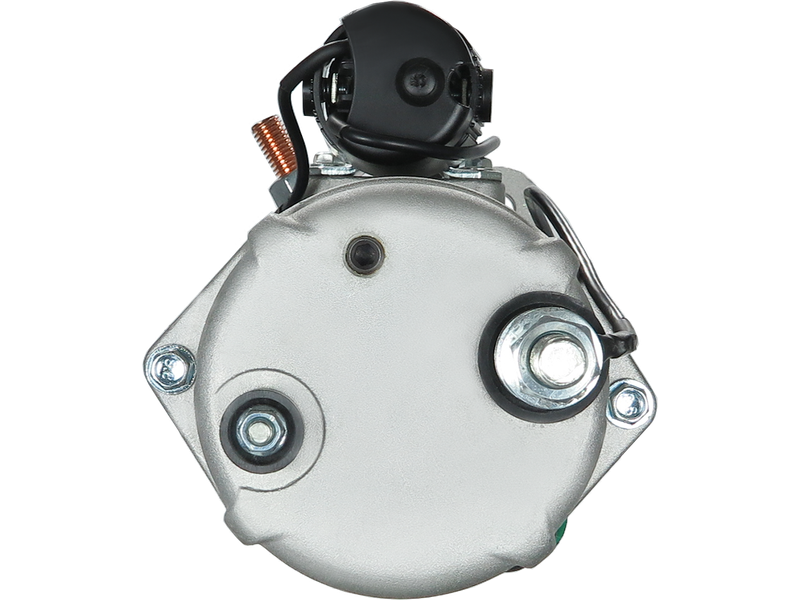

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 3,009.93 including GST
NZ$ 2,617.33 excluding GST
or four payments of $752.48
with
Learn More
each
S1223S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
8200762Specifications
| Kilowatt | 9 kW |
| Length (L.1) | 421 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 2384C | [C6.6] | |
| CATERPILLAR | 2484C | [C6.6] | |
| CATERPILLAR | 320E | [C6.6] | 01.2012-12.2016 |
| CATERPILLAR | 320EL | [C6.6] | 01.2012-12.2016 |
| CATERPILLAR | 320ELN | [C6.6] | 01.2012-12.2016 |
| CATERPILLAR | 320ESA | [C6.6] | 01.2012-12.2016 |
| CATERPILLAR | 323E | [C6.6] | 01.2009-12.2015 |
| CATERPILLAR | 323EL | [C6.6] | 01.2009-12.2015 |
| CATERPILLAR | 323ELN | [C6.6] | 01.2009-12.2015 |
| CATERPILLAR | 323ESA | [C6.6] | 01.2009-12.2015 |
| CATERPILLAR | 329E | [C7.1] | 01.2012-12.2015 |
| CATERPILLAR | 329EL | [C7.1] | 01.2012-12.2015 |
| CATERPILLAR | 329ELN | [C7.1] | 01.2011-12.2014 |
| CATERPILLAR | 559C | [C6.6] | |
| CATERPILLAR | 579C | [C6.6] | |
| CATERPILLAR | 599C | [C6.6] | |
| CATERPILLAR | 950K | [C7.1] | 01.2012-12.2015 |
| CATERPILLAR | 950M | [C7.1] | 01.2015-12.2016 |
| CATERPILLAR | 962K | [C7.1] | 01.2012-12.2015 |
| CATERPILLAR | 962M | [C7.1] | 01.2015-12.2016 |
| CATERPILLAR | AP1000E | [C7.1] | 01.2012-12.2016 |
| CATERPILLAR | AP1055E | [C7.1] | 01.2012-12.2016 |
| CATERPILLAR | BG1000E | [C7.1] | 01.2013-12.2014 |
| CATERPILLAR | BG1055E | [C7.1] | 01.2012-12.2014 |
Reference Information
| 140-39200 | ROBERT'S |
| 20409626BN | REAL |
| 20409626OE | REAL |
| 349-9075 | CATERPILLAR |
| 349-9077 | CATERPILLAR |
| 6060626.0 | SANDO |
| 6060626.1 | SANDO |
| 8200762 | DELCO |
| CST60626AS | CASCO |
| CST60626GS | CASCO |
| REM8200762 | WOODAUTO |
| S1223S | AS-PL |
| STD8262 | KRAUF |
| TS-1867 | DIXIE |
| UD17076S | AS-PL |
