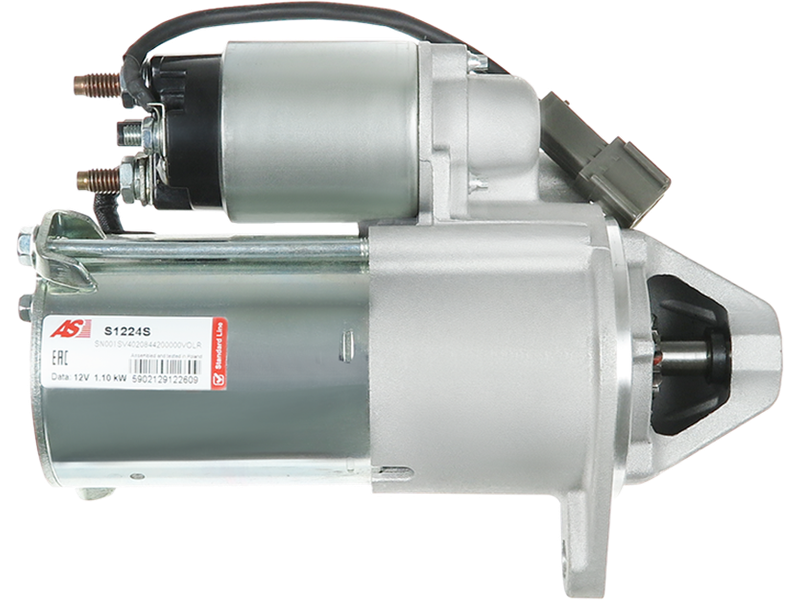

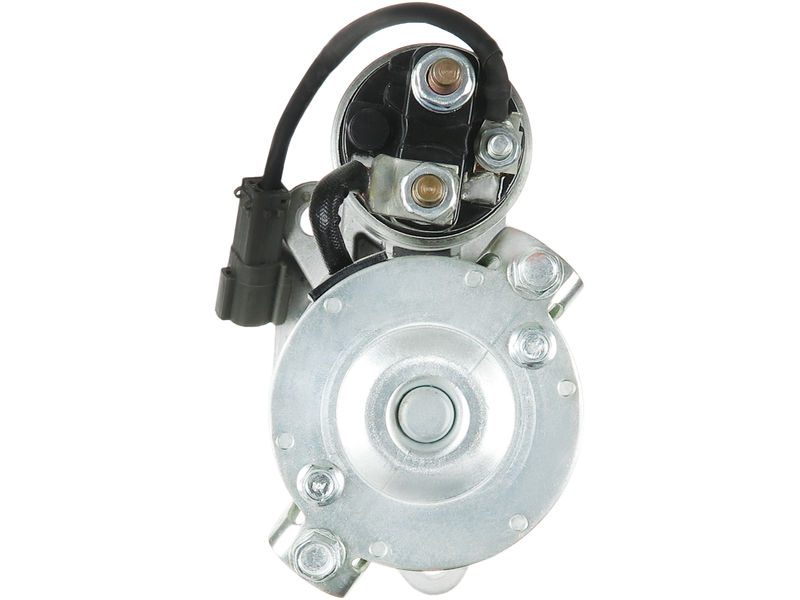

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 240.40 including GST
NZ$ 209.04 excluding GST
or four payments of $60.10
with
Learn More
each
S1224S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
96450663Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Captiva 2.4 | [Z24SED] | 01.2006- |
| CHEVROLET | Captiva 2.4 4WD | [Z24SED] | 01.2006- |
| CHEVROLET | Epica 2.0 | [L88] | 01.2005-12.2006 |
| CHEVROLET | Evanda 2.0 | [L88] | 01.2002-12.2005 |
| CHEVROLET | Rezzo 2.0i | [X20SED] | 01.2005-12.2008 |
| CHEVROLET | Tacuma 2.0i | [X20SED] | 01.2005-12.2008 |
| DAEWOO | Evanda 2.0 | [X20SED] | 01.2002-12.2004 |
| DAEWOO | Leganza 2.0 | [X20SED] | 01.1997-12.2002 |
| DAEWOO | Leganza 2.2 16V | [T22SED] | 01.1999-12.2002 |
| DAEWOO | Nubira 2.0 | [X20SED] | 01.1999-12.2002 |
| DAEWOO | Nubira 2.0 16V | [C20SED] | 01.1999-12.2003 |
| DAEWOO | Nubira 2.0 16V | [X20SED] | 01.1997-12.2003 |
| DAEWOO | Nubira 2.0 CDX | [T20SED] | 01.2002-12.2003 |
| DAEWOO | Rezzo 1.8i | [A18DMS] | 01.2000-12.2005 |
| DAEWOO | Rezzo 2.0i | [X20SED] | 01.2000-12.2005 |
| DAEWOO | Tacuma 1.8i | [A18DMS] | 01.2000-12.2005 |
| DAEWOO | Tacuma 2.0 | [X20SED] | 01.2000-12.2005 |
| OPEL | Antara 2.4 | [Z24XED] | 01.2006- |
| OPEL | Antara 2.4 4WD | [Z24XE] | 01.2007- |
| OPEL | Antara 2.4 4WD | [Z24XED] | 01.2007- |
| VAUXHALL | Antara 2.4 | [Z24XE] | 01.2006-12.2015 |
| VAUXHALL | Antara 2.4 | [Z24XED] | 01.2006- |
| VAUXHALL | Antara 2.4 4WD | [Z24XED] | 01.2006- |
| VAUXHALL | Antara 2.4 LPG 4x4 | [Z24XE] | 01.2006- |
Reference Information
| 0001107118 | BOSCH |
| 063522612010 | MAGNETI MARELLI |
| 063720879010 | MAGNETI MARELLI |
| 09119798 | OPEL |
| 09200961 | HOLDEN |
| 09200961 | OPEL |
| 09512270 | OPEL |
| 0986017920 | BOSCH |
| 10515815 | VAUXHALL |
| 10515815 | OPEL |
| 10879 | KUHNER |
| 11040662 | EUROTEC |
| 111848 | CARGO |
| 1202029 | OPEL |
| 1202140 | OPEL |
| 1202145 | OPEL |
| 1202158 | OPEL |
| 1202159 | OPEL |
| 130.518.092 | PSH |
| 20460201BN | REAL |
| 20460201OE | REAL |
| 20460201RE | REAL |
| 220119 | ERA |
| 24422272 | OPEL |
| 25-3031 | ELSTOCK |
| 25-3384 | ELSTOCK |
| 3668 | CEVAM |
| 42017920 | HERTH+BUSS |
| 458184 | VALEO |
| 4805518 | OPEL |
| 55351638 | OPEL |
| 6046102.0 | SANDO |
| 6046102.1 | SANDO |
| 6046102.4 | SANDO |
| 6202008 | OPEL |
| 6202053 | OPEL |
| 6202057 | OPEL |
| 6202066 | OPEL |
| 63522612 | MAGNETI MARELLI |
| 6750N | WAI / TRANSPO |
| 6750R | WAI / TRANSPO |
| 8000221 | DELCO |
| 8080068 | FRIESEN |
| 88212596 | POWERMAX |
| 8EA012526-831 | HELLA |
| 8EA732658-001 | HELLA |
| 9000961 | OPEL |
| 90371765 | OPEL |
| 90371765 | VAUXHALL |
| 90371766 | VAUXHALL |
| 90371766 | HOLDEN |
| 90371766 | OPEL |
| 90449689 | OPEL |
| 90451825 | OPEL |
| 90487345 | OPEL |
| 90508037 | OPEL |
| 90512189 | OPEL |
| 90518627 | OPEL |
| 91-01-4700 | WILSON |
| 9119794 | OPEL |
| 9200961 | VAUXHALL |
| 9200961 | OPEL |
| 92064181 | OPEL |
| 93175888 | OPEL |
| 93175888 | VAUXHALL |
| 93175892 | VAUXHALL |
| 93175906 | OPEL |
| 93176061 | HOLDEN |
| 93176061 | VAUXHALL |
| 93176061 | OPEL |
| 943208791010 | MAGNETI MARELLI |
| 943300812010 | MAGNETI MARELLI |
| 944280800680 | MAGNETI MARELLI |
| 9512770 | OPEL |
| 96208785 | DELCO |
| 96430345 | DELCO |
| 96450663 | DELCO |
| 9647377 | GM |
| 96473777 | DELCO |
| 96473779 | CHEVROLET |
| 96627035 | CHEVROLET |
| 96843579 | CHEVROLET |
| 96843582 | CHEVROLET |
| 96952007 | CHEVROLET |
| CS879 | HC PARTS |
| CST46102AS | CASCO |
| CST46102GS | CASCO |
| CST46102OS | CASCO |
| DRS3553 | DELCO |
| DS4663 | DELCO |
| F032111848 | CARGO |
| F042S03137 | UNIPOINT |
| J5210904 | HERTH+BUSS |
| LRS02213 | LUCAS |
| LRS2213 | LUCAS |
| LRT00190 | LUCAS |
| MAR225 | MAGNETI MARELLI |
| MAV481020 | SIOM |
| MAV4820 | SIOM |
| MQS879 | MAGNETI MARELLI |
| MRS80068 | MAGNETI MARELLI |
| MSN2612 | MAGNETI MARELLI |
| MSRC879 | MAGNETI MARELLI |
| R1040000 | OPEL |
| R1540014 | VAUXHALL |
| R1540014 | OPEL |
| S129.671 | PSH |
| S145.000 | PSH |
| S148.595 | PSH |
| S-1508 | DIXIE |
| SG0172 | GHIBAUDI |
| STB0879 | KRAUF |
| STB8879 | KRAUF |
| STD0879 | KRAUF |
| STM1045 | ROLLCO |
| STR2703 | ELECTROLOG |
| STRS041 | 3EFFE |
| STRS924 | 3EFFE |
| STV0879 | KRAUF |
| STV9879 | KRAUF |
| STX200092 | STARDAX |
| STX200092R | STARDAX |
| UD20592S | AS-PL |
