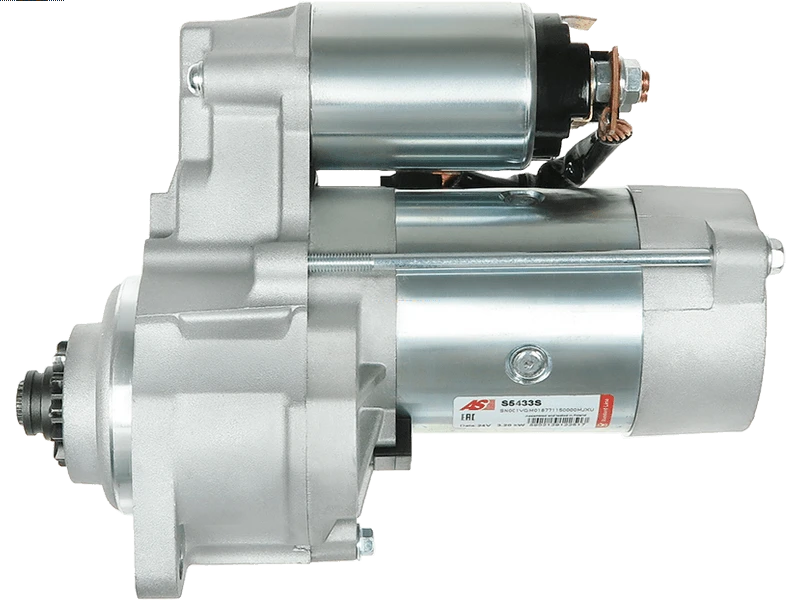

Specifications
Kilowatt | 3.2 kW |
Length (L.1) | 241 mm |
Mount Hole Center - Center (O.1) | 117 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 13 qty |
Pinion at Rest (B) | 29 mm |
Rotation | CW |
Spigot Diameter (A) | 77 mm |
Unit Type | MITSUBISHI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
MITSUBISHI | Fork Lift |
Reference Information
M2T65671ZC CGB-65671 UD17036S M00M409415 STM1835 M002T65671 151.527.132 M2T65671 255152 MM409415Video/Publications
151.527.132 255152 CGB-65671 M002T65671 M00M409415 M2T65671 M2T65671ZC MM409415 STM1835 UD17036SAdd Your Number
