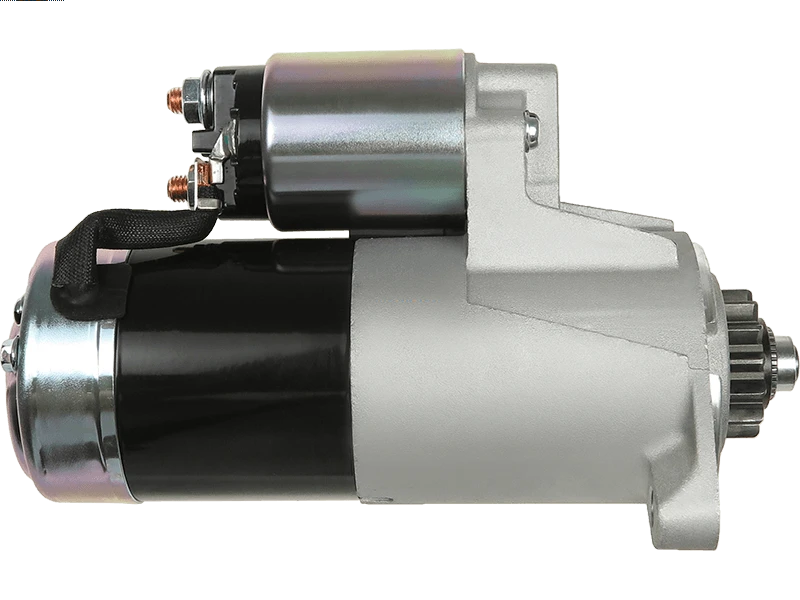

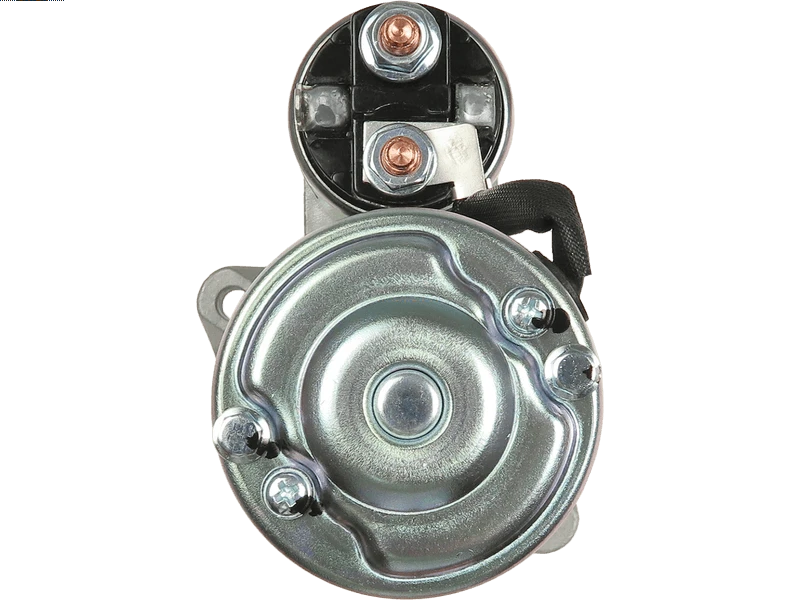

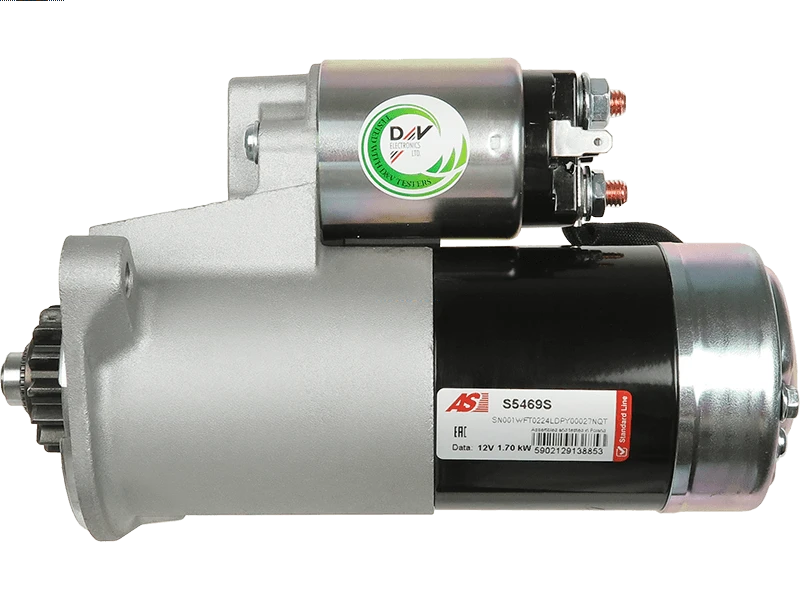

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 250.68 including GST
NZ$ 217.98 excluding GST
or four payments of $62.67
with
Learn More
each
S5438S.
S5469S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M1T68381Associated Numbers
S5431S.
S5438S.
S5469S.
Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 221 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 14 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ATLAS | AM15R 0.95 | [L3E] | |
| ATLAS | AM16R 0.95 | [L3E] | |
| ATLAS | AM21R 0.95 | [L3E] | |
| CASE | CX17B 0.95 | [L3E] | 01.2007- |
| HYUNDAI | R16-9 0.95 | [L3E] | 01.2007- |
| NEW HOLLAND | E18B 0.95 | [L3E] | 01.2007- |
| O&K | RH 1.17 0.95 | [L3E] | 01.2000-12.2005 |
| O&K | RH 1.21 0.95 | [L3E] | |
| SCHAEFF | HR11 0.95 | [L3E] | |
| SCHAEFF | HR12 0.95 | [L3E] | |
| SCHAEFF | HR13 0.95 | [L3E] | |
| SCHAEFF | HR15 0.95 | [L3E] | |
| SCHAEFF | HR16 0.95 | [L3E] | |
| SCHAEFF | HR20 0.95 | [L3E] | |
| SCHAEFF | ZR12 0.95 | [L3E] | |
| SCHAEFF | ZR15 0.95 | [L3E] | |
| TEREX | TC15 0.95 | [L3E] | |
| TEREX | TC16 0.95 | [L3E] | |
| TEREX | TC20 0.95 | [L3E] | |
| VOLVO | EC15 0.95 | [L3E] | 01.2000-12.2002 |
Reference Information
| 114444 | CARGO |
| 130-10106 | ROBERT'S |
| 150.544.142.130 | PSH |
| 150.544.142.138 | PSH |
| 150.544.142.370 | PSH |
| 19609 | WAI / TRANSPO |
| 20437091BN | REAL |
| 20437091OE | REAL |
| 243-17112 | DIXIE |
| 25-4060 | ELSTOCK |
| 254517 | KUHNER |
| 254517M | KUHNER |
| 30L66-10500 | MITSUBISHI |
| 30L66-20500 | MITSUBISHI |
| 5527659125 | SCHAEFF |
| 5527659128 | SCHAEFF |
| 5999991205 | SCHAEFF |
| 6035190.0 | SANDO |
| 6035190.1 | SANDO |
| 8334 | CEVAM |
| 88213955 | POWERMAX |
| 91-27-3332 | WILSON |
| CGB-54060 | AINDE |
| CGB-98381 | AINDE |
| CST35190AS | CASCO |
| CST35190GS | CASCO |
| DRS0291 | DELCO |
| DS1401 | DELCO |
| F032114444 | CARGO |
| LRS02388 | LUCAS |
| LRS2388 | LUCAS |
| M001T68381 | MITSUBISHI |
| M001T68382 | MITSUBISHI |
| M001T68382AM | MITSUBISHI |
| M1T68381 | MITSUBISHI |
| M1T68382 | MITSUBISHI |
| M1T68382AM | MITSUBISHI |
| MAV371900 | SIOM |
| MAV371900A | SIOM |
| MITM1T68381 | WOODAUTO |
| MITM1T68382 | WOODAUTO |
| MM31760002 | MITSUBISHI |
| MOO1T68381 | MITSUBISHI |
| PRSL697 | 3EFFE |
| S130.522 | PSH |
| S145.742 | PSH |
| S5469S | AS-PL |
| S80427 | DIXIE |
| STM8104 | KRAUF |
| STR5232 | ELECTROLOG |
| STRL697 | 3EFFE |
| STRL697MI | 3EFFE |
| STRL697V | 3EFFE |
| STRL697X | 3EFFE |
| UD90582S | AS-PL |
| VA30L66-10500 | NEW HOLLAND |
| WOOSTR71026 | WOODAUTO |
