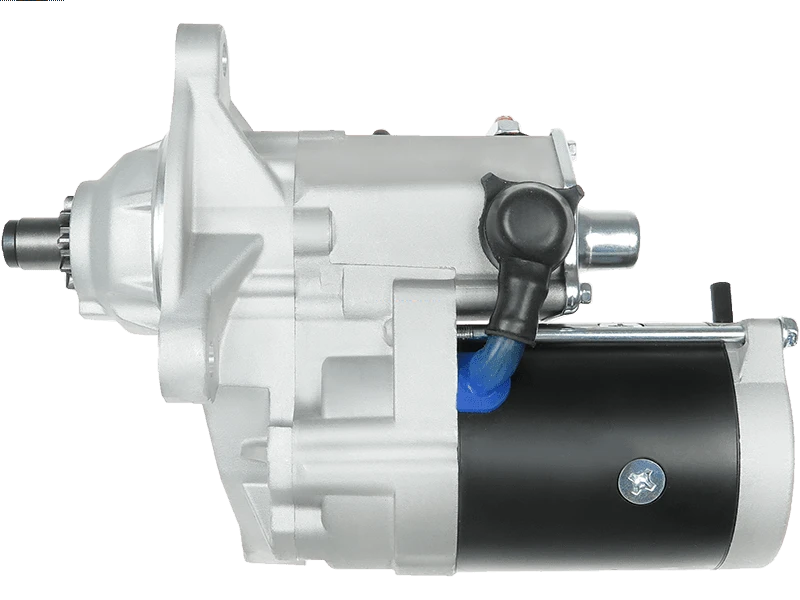

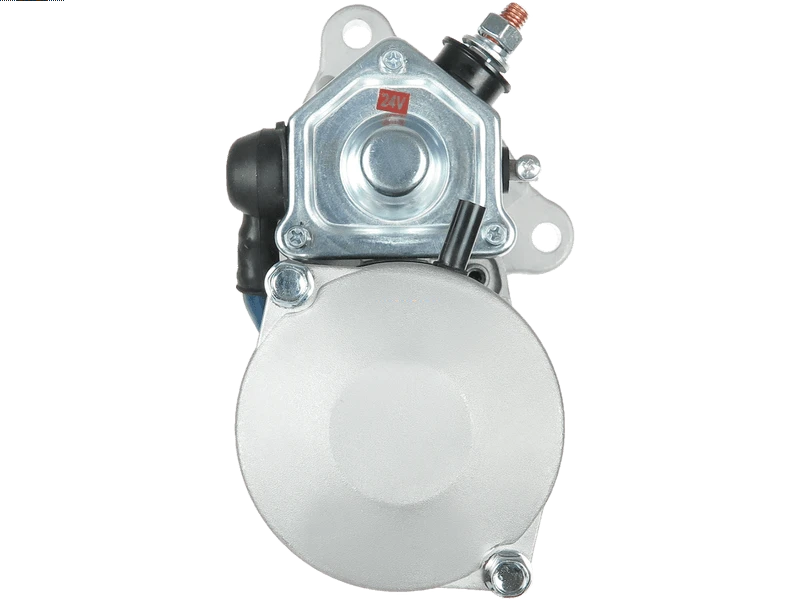

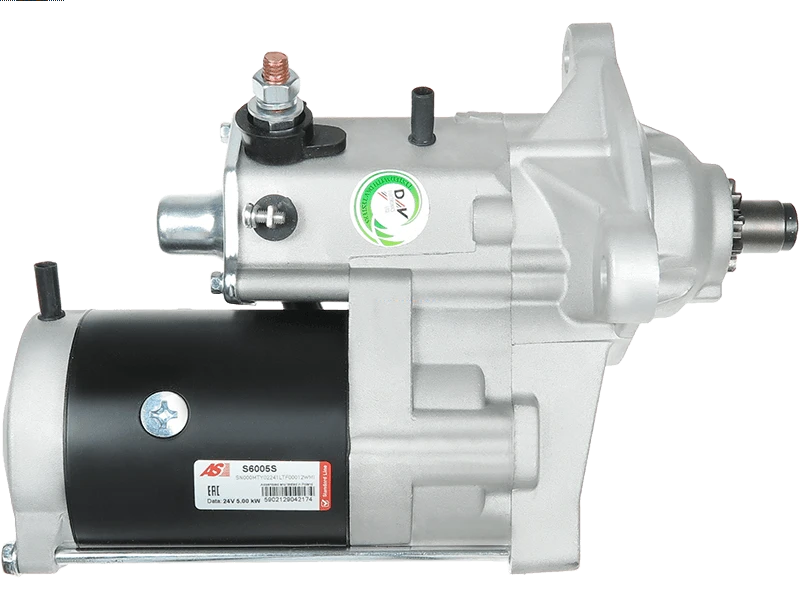

S6005S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 546.65 including GST

NZ$ 475.35 excluding GST
each
S6005S
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

Kilowatt5.5 kW
Length (L.1)318 mm
Mount Hole Center - Center (O.1)126 mm
Mount Hole Center - Center (O.2)126 mm
Mount Hole Center - Center (O.3)126 mm
Mount Hole Diameter (C.1)13 mm
Mount Hole Diameter (C.2)13 mm
Mount Hole Diameter (C.3)13 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
No./Teeth (Replaces)10 qty
Pinion at Rest (B)49 mm
RotationCW
Spigot Diameter (A)92 mm
Unit TypeDENSO
Voltage24 V
Wet ClutchYes
Make Model Type Year
IVECO 190 E 38 12.9 [F3BE0681G] 01.2001-11.2004
IVECO 190 E 39 10.3 [F3AE0681E] 11.1999-
IVECO 190 E 39 10.3 [F3AE0681E] 11.1999-02.2002
IVECO 190 E 40 10.3 [F3AE0681B] 09.2000-02.2002
IVECO 190 E 43 10.3 [F3AE0681D] 11.1999-02.2002
IVECO 190 E 44 12.9 [F3BE0681C] 09.2000-11.2004
IVECO 190 S 40 10.3 [F3AE0681B] 02.2002-
IVECO 190 S 40 10.3 [F3AE0681B] 06.2003-
IVECO 190 S 43 10.3 [F3AE0681D] 02.2002-
IVECO 190 S 43 10.3 [F3AE0681D] 06.2003-
IVECO 190 S 48 12.9 [F3BE0681E] 02.2002-
IVECO 190 T 38 12.9 [F3BE0681G] 10.2004-
IVECO 190 T 41 12.9 [F3BE3681D] 03.2006-
IVECO 190 T 44 12.9 [F3B3681G] 06.2005-
IVECO 190 T 45 12.9 [F3HFE611/450] 01.2013-
IVECO 260 E 38 12.9 [F3BE0681G] 01.2001-11.2004
IVECO 260 E 39 10.3 [F3AE0681E] 11.1999-
IVECO 260 E 40 10.3 [F3AE0681B] 01.2001-
IVECO 260 E 40 10.3 [F3AE0681B] 09.2000-02.2002
IVECO 260 E 43 10.3 [F3AE0681D] 01.1993-02.2002
IVECO 260 E 43 10.3 [F3AE0681D] 11.1999-
IVECO 260 E 44 12.9 [F3BE0681C] 01.2000-11.2004
IVECO 260 E 44 12.9 [F3BE0681C] 01.2001-11.2004
IVECO 260 E 48 12.9 [F3BE0681E] 01.1993-02.2002
IVECO 260 S 40 10.3 [F3AE0681B] 02.2002-
IVECO 260 S 40 10.3 [F3AE0681B] 06.2003-
IVECO 260 S 40 10.3 [F3AE0681H] 02.2002-
IVECO 260 S 40 10.3 [F3AE0681H] 06.2003-
IVECO 260 S 42 10.3 [F3A3681B] 05.2007-
IVECO 260 S 42 10.3 [F3AE3681B] 05.2007-
IVECO 260 S 43 10.3 [F3AE0681D] 02.2002-
IVECO 260 S 43 10.3 [F3AE0681D] 05.2005-
IVECO 260 S 43 10.3 [F3AE0681D] 06.2003-
IVECO 260 S 45 10.3 [F3A3681A] 05.2007-
IVECO 260 S 45 10.3 [F3A3681A] 12.2006-
IVECO 260 S 45 10.3 [F3AE3681A] 05.2007-
IVECO 260 S 48 12.9 [F3BE0681E] 02.2002-
IVECO 260 S 50 12.9 [F3B3681B] 07.2006-
IVECO 260 S 50 12.9 [F3B3681B] 12.2006-
IVECO 260 S 54 12.9 [F3BE0681A] 02.2002-
IVECO 260 S 56 12.9 [F3B3681A] 07.2006-
IVECO 260 S 56 12.9 [F3B3681A] 12.2006-
IVECO 260 T 38 12.9 [F3BE0681G] 06.2005-
IVECO 260 T 38 12.9 [F3BE0681G] 06.2005-03.2006
IVECO 260 T 41 12.9 [F3BE3681D] 03.2006-
IVECO 260 T 44 12.9 [F3BE0681C] 06.2005-
IVECO 260 T 45 12.9 [F3BE3681C] 03.2006-
IVECO 260 T 48 12.9 [F3BE0681E] 06.2005-
IVECO 260 T 50 12.9 [F3BE3681B] 03.2006-
IVECO 340 E 38 12.9 [F3BE0681G] 01.2001-11.2004
IVECO 340 E 44 12.9 [F3BE0681C] 01.2001-11.2004
IVECO 340 T 38 12.8 [F3BE0681G] 09.2005-
IVECO 340 T 38 12.9 [F3BE0681G] 06.2005-
IVECO 340 T 41 12.9 [F3B3681D] 06.2006-
IVECO 340 T 41 12.9 [F3BE3681D] 03.2006-
IVECO 340 T 44 12.8 [F3BE0681C] 06.2005-
IVECO 340 T 44 12.9 [F3BE0681C] 06.2005-
IVECO 340 T 45 12.9 [F3B3681C] 06.2006-
IVECO 340 T 45 12.9 [F3BE3681C] 03.2006-
IVECO 340 T 45 12.9 [F3BE3681C] 06.2006-
IVECO 340 T 50 12.9 [F3BE3681B] 03.2006-
IVECO 380 E 38 12.9 [F3BE0681G] 01.2001-11.2004
IVECO 380 E 44 12.9 [F3BE0681C] 01.2001-11.2004
IVECO 380 T 38 12.9 [F3BE0681G] 06.2005-
IVECO 380 T 41 12.8 [F3B3681D] 09.2006-
IVECO 380 T 41 12.9 [F3BE3681D] 03.2006-
IVECO 380 T 42 12.9 [F3BE0681V] 04.2006-12.2012
IVECO 380 T 44 12.9 [F3BE0681C] 06.2005-
IVECO 380 T 45 12.8 [F3B3681C] 09.2006-
IVECO 380 T 45 12.9 [F3BE3681C] 03.2006-
IVECO 380 T 45 12.9 [F3HFE611/450] 01.2013-
IVECO 380 T 45 12.9 [F3HFE611/450] 03.2006-
IVECO 380 T 48 12.9 [F3BE0681E] 06.2005-
IVECO 380 T 50 12.9 [F3BE3681B] 03.2006-
IVECO 380 T 50 12.9 [F3BE3681B] 03.2007-
IVECO 400 T 38 12.9 [F3BE0681G] 06.2005-
IVECO 400 T 41 12.9 [F3BE3681D] 03.2006-
IVECO 400 T 44 12.9 [F3BE0681C] 06.2005-
IVECO 400 T 45 12.9 [F3BE3681C] 03.2006-
IVECO 400 T 50 12.9 [F3BE3681B] 03.2006-
IVECO 410 E 38 12.9 [F3BE0681G] 01.2001-11.2004
IVECO 410 E 44 12.9 [F3BE0681C] 01.2001-11.2004
IVECO 410 T 38 12.9 [F3BE0681G] 04.2005-
IVECO 410 T 38 12.9 [F3BE0681G] 06.2005-
IVECO 410 T 41 12.9 [F3B3681D] 06.2006-
IVECO 410 T 41 12.9 [F3BE3681D] 03.2006-
IVECO 410 T 44 12.8 [F3BE0681C] 06.2005-
IVECO 410 T 44 12.9 [F3BE0681C] 02.2005-
IVECO 410 T 44 12.9 [F3BE0681C] 06.2005-
IVECO 410 T 45 12.9 [F3B3681C] 06.2006-
IVECO 410 T 45 12.9 [F3B3681C] 07.2007-
IVECO 410 T 45 12.9 [F3BE3681C] 03.2006-
IVECO 410 T 48 12.9 [F3BE0681E] 02.2005-
IVECO 410 T 48 12.9 [F3BE0681E] 06.2005-
IVECO 410 T 50 12.9 [F3BE0681B] 06.2006-
IVECO 410 T 50 12.9 [F3BE3681B] 03.2006-
IVECO 410 T 54 12.9 [F3BE0681A]
IVECO 440 E 38 12.9 [F3BE0681G] 01.2001-11.2004
IVECO 440 E 39 10.3 [F3AE0681E] 11.1999-
IVECO 440 E 40 10.3 [F3AE0681B] 01.2001-
IVECO 440 E 40 10.3 [F3AE0681B] 01.2001-02.2002
IVECO 440 E 40 10.3 [F3AE0681B] 09.2000-
IVECO 440 E 40 10.3 [F3AE0681B] 09.2000-02.2002
IVECO 440 E 43 10.3 [F3AE0681D] 01.1993-02.2002
IVECO 440 E 43 10.3 [F3AE0681D] 11.1999-
IVECO 440 E 43 10.3 [F3AE0681D] 11.1999-02.2002
IVECO 440 E 44 12.9 [F3BE0681C] 01.2001-11.2004
IVECO 440 E 48 12.9 [F3BE0681E] 01.2001-02.2002
IVECO 440 S 40 10.3 [F3AE0681B] 02.2002-
IVECO 440 S 40 10.3 [F3AE0681B] 06.2003-
IVECO 440 S 42 10.3 [F3A3681B] 07.2006-
IVECO 440 S 42 10.3 [F3A3681B] 12.2006-
IVECO 440 S 42 10.3 [F3AE3681B] 07.2006-
IVECO 440 S 43 10.3 [F3AE0681D] 02.2002-
IVECO 440 S 43 10.3 [F3AE0681D] 06.2003-
IVECO 440 S 45 10.3 [F3A3681A] 07.2006-
IVECO 440 S 45 10.3 [F3A3681A] 12.2006-
IVECO 440 S 46 10.3 12.2009-
IVECO 440 S 48 12.8 [F3BE0681E] 02.2002-
IVECO 440 S 48 12.9 [F3BE0681E] 02.2002-
IVECO 440 S 48 12.9 [F3BE0681E] 10.2004-
IVECO 440 S 50 12.9 [F3B3681B] 07.2006-
IVECO 440 S 50 12.9 [F3B3681B] 12.2006-
IVECO 440 S 54 12.8 [F3BE0681A] 02.2002-
IVECO 440 S 54 12.9 [F3BE0681A] 02.2002-
IVECO 440 S 54 12.9 [F3BE0681A] 10.2004-
IVECO 440 S 56 12.9 [F3B3681A] 07.2006-
IVECO 440 S 56 12.9 [F3B3681A] 12.2006-
IVECO 440 T 38 12.9 [F3BE0681G] 06.2005-
IVECO 440 T 44 12.9 [F3BE0681C] 06.2005-
IVECO 440 T 50 12.9 [F3BE3681B] 03.2006-
IVECO 490 S 40 T 12.9 [F3BE3681D] 04.2012-
IVECO 490 S 48 T 12.9 [F3B3681F] 04.2012-
IVECO 600 S 40 T 12.9 [F3BE3681D] 04.2012-
IVECO 600 S 44 T 12.9 04.2012-
IVECO 600 S 48 T 12.9 [F3B3681F] 04.2012-
IVECO 600 S 56 T 12.9 [F3B3681F] 04.2012-
IVECO 720 E 44 12.9 [F3BE0681C] 01.2001-11.2004
IVECO 720 E 48 12.9 [F3BE0681E] 01.2001-11.2004
IVECO 720 T 38 12.9 [F3BE0681G] 06.2005-
IVECO 720 T 41 12.9 [F3BE3681D] 03.2006-
IVECO 720 T 44 12.9 [F3BE0681C] 06.2005-
IVECO 720 T 45 12.9 [F3BE3681C] 03.2006-
IVECO 720 T 48 12.9 [F3BE0681E] 06.2005-
IVECO 720 T 50 12.9 [F3BE3681B] 03.2006-
IVECO 740 48 T 12.9 [F3BE0681E] 02.2005-
IVECO 800 S 44 TZ 12.9 08.2005-
IVECO 800 S 56 TZ 12.9 [F3HFE611/560] 04.2012-
IVECO 800 S 56 TZ 12.9 [F3HFE611A] 04.2012-
IVECO AS 260 12.9 [F3BE0681A] 02.2002-
IVECO LD 260 E 40 10.3 [F3AE0681B] 09.2000-02.2002
VOLVO FH 500 12.8 [D13B500] 01.2009-
2995988 EAA-121095 8094 11.139.170 CST40600AS ANM16117 STRL062 501.503.103.260 20540101 UD13629S 0001986S10107 CS1292 5801710983 AZG4878 CGB-23897 501.503.103.265 RNL1292CS 7.61003 1986S10107 PRSL062 6040600 3957597 99486046 AEY1958 S6005S STR70278 336265 228000-7551 228000-7550 115872 LRS1958 112823 101292 88213096 20432006OE 000986023430 MAV5890 CST40600GS 220210 DSN940 MS198 42498115 S24DE0046A2 5802918519 GSDSN940-A 47435950 20432006BN 58017010983 STN1292 5801711014 000F042000242 IS9154 STR6160 6040600.1 45-3261 63207140010 986023430 F042000242 72497287 MAV5890A 801710983 32958N 228000-7650 501.503.103.050 504106753 8EA738152-001 MNS247 DRS3897 SG0244 LRS01958 G201292D-R 228080-7550 501.503.103.058 19085003 438477
F042000242 S6005 UD13629S
