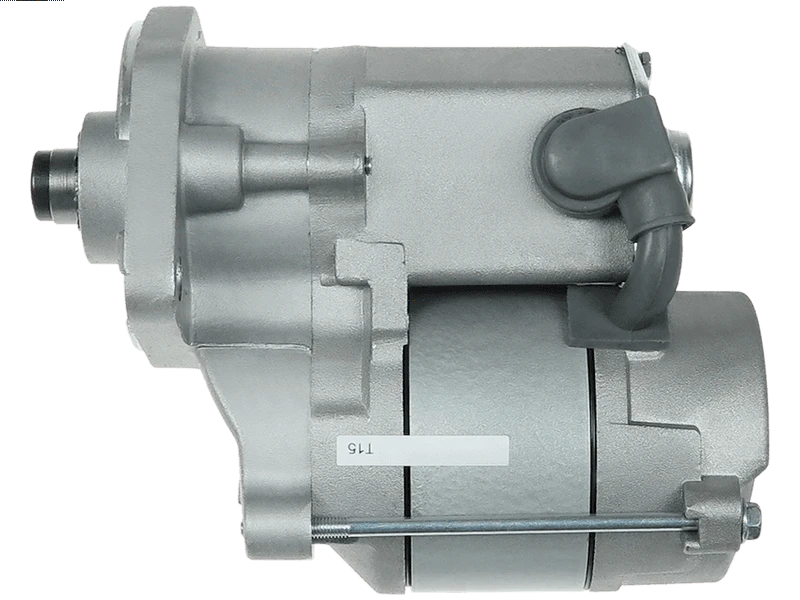

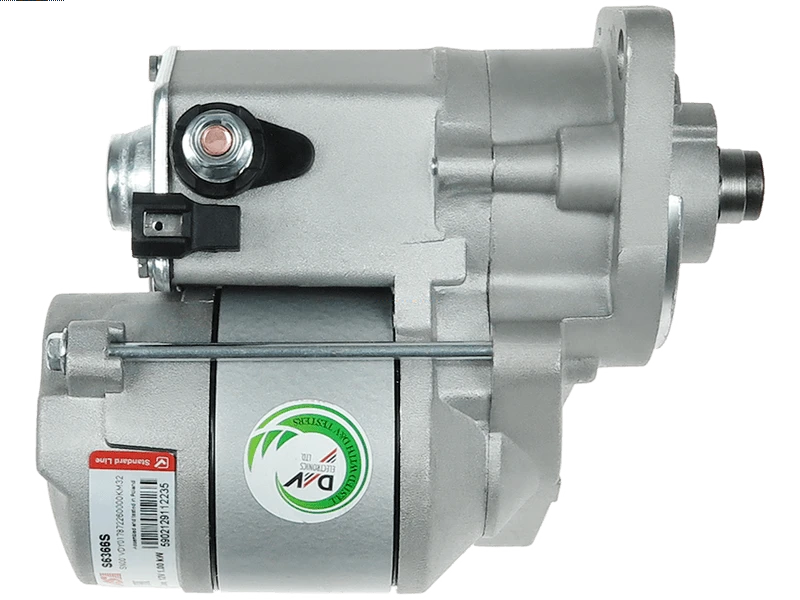

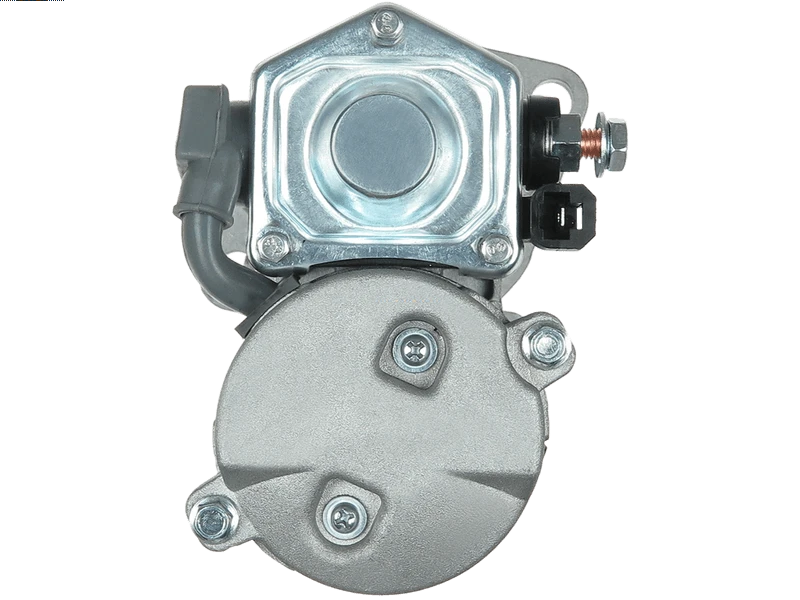

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 397.15 including GST
NZ$ 345.35 excluding GST
or four payments of $99.29
with
Learn More
each
S6366S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
028000-8220Associated Numbers
Repco Auto Parts Starter Motor STR-314 STARTER MOTOR 1 UNIT Shine N16224 N16828 Toyota 28100-60070 WAI 2-1040 Wilson 91-29-5006 91-29-5017 91-29-5057 Denso 028000-2364 28100-60042 12v 1kw 028000-2800 21170-50100 028000-2801 028000-3820 28100-60062 028000-3821 28100-60060 028000-3822 28100-60061 028000-3824 028000-8220 028000-8221 028000-9020 28100-37011 0.8kw Hyster 3049481 Ingram 843001 843017 Lester 16224 16764 16828 Lucas LRS1013 LRS1057 LRS580 Mitsubishi MOT80685 AED 099-13-828 Ashdown 01-72301 01-76041 01-78220 RXS413 CW Electrics Australia ASND8220 Baxters S-8962 Bosch BXT128 JXS021 JXS028 Daiwa Machinery 28000-8220 028000-0430 28100-60010 028000-0431 028000-1370 28100-60040 028000-1371 28100-60041 028000-1372 028000-2360 028000-2361 028000-2362 28000-60041 028000-2363 DXS400Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 178 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Land Cruiser 4.0 | 01.1988-12.1988 | |
| TOYOTA | Land Cruiser 4.0 | 01.1989-12.1989 | |
| TOYOTA | Land Cruiser 4.0 | 01.1990-12.1990 | |
| TOYOTA | Land Cruiser 4.0 | 01.1991-12.1991 | |
| TOYOTA | Land Cruiser 4.0 | 01.1992-12.1992 | |
| TOYOTA | Land Cruiser 4.2 | 01.1982-12.1982 | |
| TOYOTA | Land Cruiser 4.2 | 01.1983-12.1983 | |
| TOYOTA | Land Cruiser 4.2 | 01.1984-12.1984 | |
| TOYOTA | Land Cruiser 4.2 | 01.1985-12.1985 | |
| TOYOTA | Land Cruiser 4.2 | 01.1986-12.1986 | |
| TOYOTA | Land Cruiser 4.2 | 01.1987-12.1987 |
Reference Information
| 028000-8220 | DENSO |
| 131290079 | WARTBURG |
| 131290084 | WARTBURG |
| 131290099 | WARTBURG |
| 1336073C1 | CASE |
| 16828N | WAI / TRANSPO |
| 16828R | WAI / TRANSPO |
| 20432442BN | REAL |
| 26-0369 | ELSTOCK |
| 2810060010 | TOYOTA |
| 2810060014 | TOYOTA |
| 2810060040 | TOYOTA |
| 2810060041 | TOYOTA |
| 2810060042 | TOYOTA |
| 2810060051 | TOYOTA |
| 2810060060 | TOYOTA |
| 2810060061 | TOYOTA |
| 2810060062 | TOYOTA |
| 28100-60070 | TOYOTA |
| 2810060080 | TOYOTA |
| 28100-60080 | TOYOTA |
| 2810060090 | TOYOTA |
| 2810063020 | TOYOTA |
| 28100-63020 | TOYOTA |
| 2810063021 | TOYOTA |
| 28100-63021 | TOYOTA |
| 2810063040 | TOYOTA |
| 28100-63040 | TOYOTA |
| 455591 | VALEO |
| 6040244.0 | SANDO |
| 91-29-5057 | WILSON |
| CGB-23071 | AINDE |
| CST40244AS | CASCO |
| ESA153 | FORD |
| ESA359 | FORD |
| LRS01762 | LUCAS |
| LRS1762 | LUCAS |
| MAV421280 | SIOM |
| MAV422440A | SIOM |
| S-8349 | DIXIE |
| STR3081 | ELECTROLOG |
| STR70171 | WOODAUTO |
| UD16979S | AS-PL |
Video/Publications
