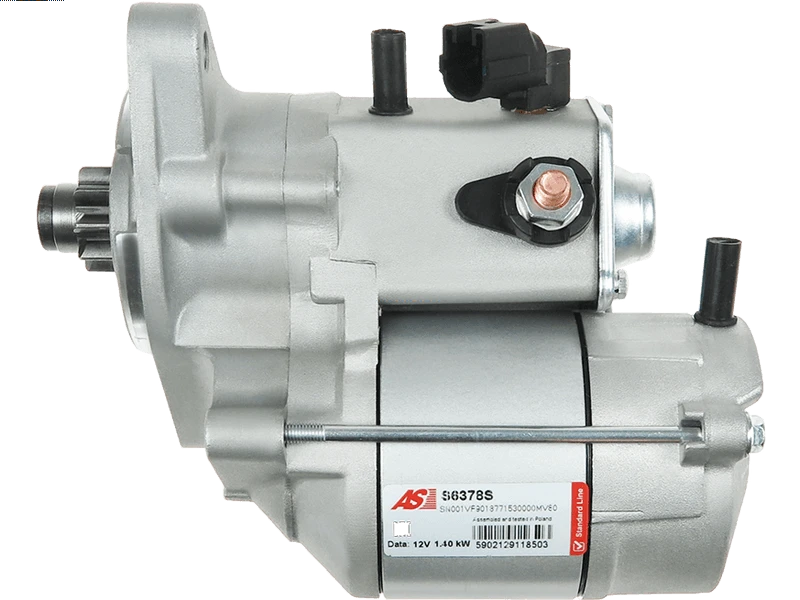

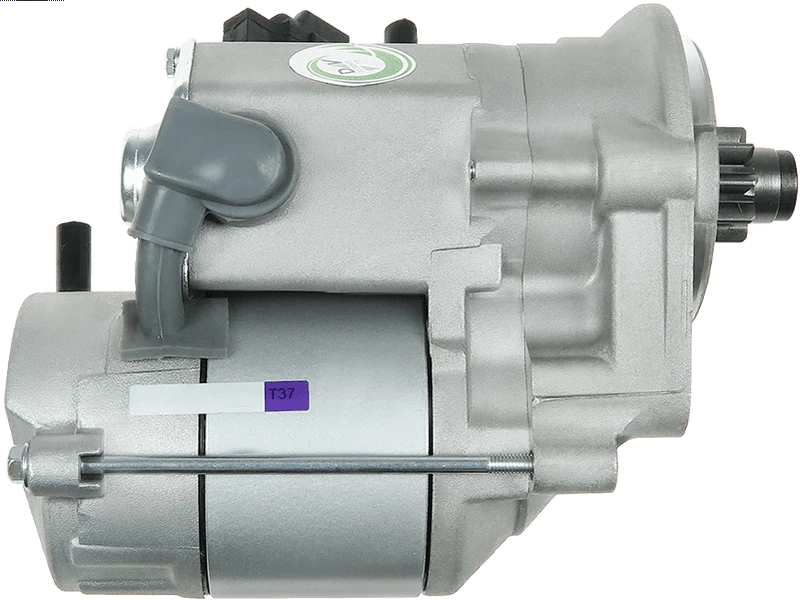

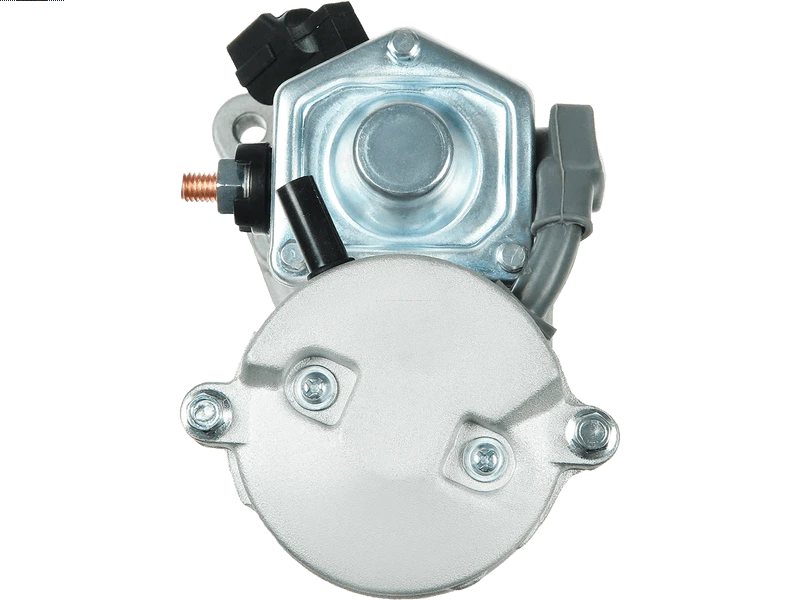

Specifications
Kilowatt | 1.4 kW |
Length (L.1) | 189 mm |
Mount Hole Center - Center (O.1) | 111 mm |
Mount Hole Diameter (C.1) | M10x1.25 mm |
Mount Hole Diameter (C.2) | M10x1.25 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 22 mm |
Rotation | CW |
Spigot Diameter (A) | 74 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TOYOTA | Tacoma 4.0 | [1GR-FE] | 01.2011-12.2011 |
TOYOTA | Tacoma 4.0 | [1GR-FE] | 01.2012-12.2012 |
TOYOTA | Tacoma 4.0 | [1GR-FE] | 01.2013-12.2013 |
TOYOTA | Tacoma 4.0 | [1GR-FE] | 01.2014-12.2014 |
TOYOTA | Tacoma 4.0 | [1GR-FE] | 01.2015-12.2015 |
Reference Information
S-80529 UD16988S 19208N 246-15124 428000-6380 28100-31111 428000-6381 STN6841 91-29-5805Video/Publications
19208N 246-15124 28100-31111 428000-6380 428000-6381 91-29-5805 S-80529 STN6841 UD16988SAdd Your Number
