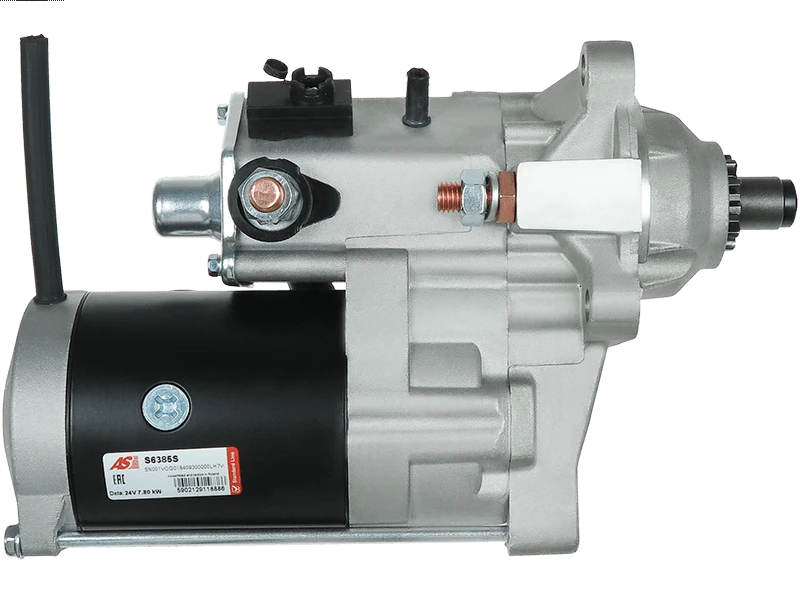

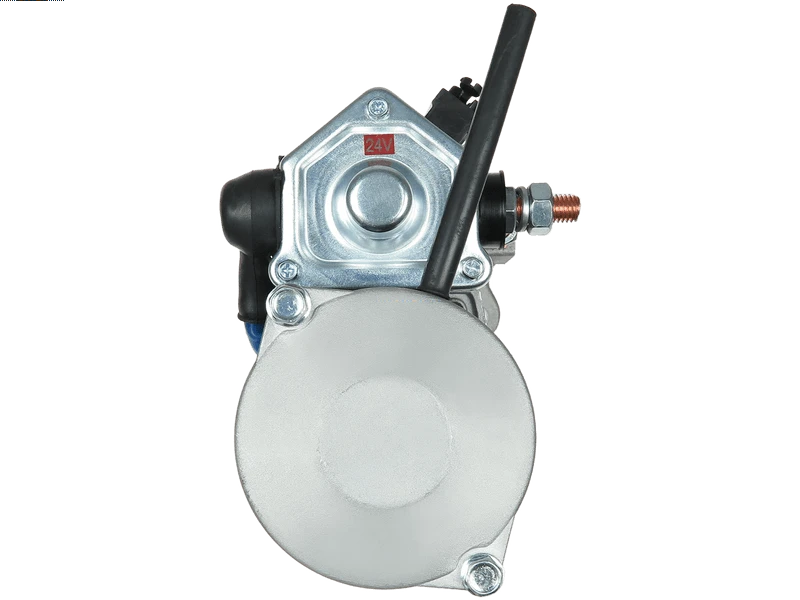

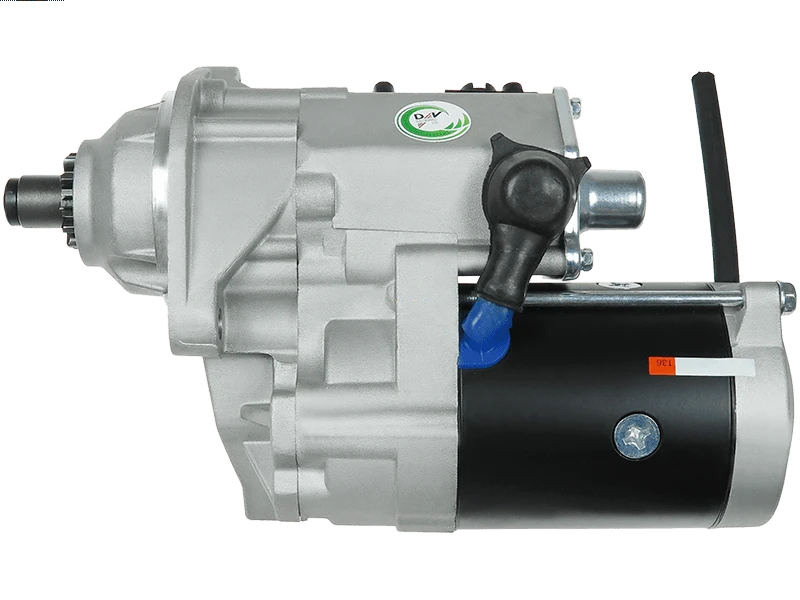

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 607.66 including GST
NZ$ 528.40 excluding GST
or four payments of $151.92
with
Learn More
each
S6385S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
228000-6570Specifications
| Kilowatt | 7.80 kW |
| Length (L.1) | 318 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 89.50 mm |
| Mount Hole Center - Center (O.3) | 89.50 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 110 4.5 | [4045] | 01.1998-12.2003 |
| JOHN DEERE | 160LC 4.5 | [4045] | 01.1997-12.2003 |
| JOHN DEERE | 200LC 6.8 | [6068] | 01.1996-12.2002 |
| JOHN DEERE | 200LC 6.8 | [6068] | 01.1997-12.2007 |
| JOHN DEERE | 230LC 6.8 | [6068] | 01.1997-12.2002 |
| JOHN DEERE | 330LC 8.1 | [6081] | 01.1998-12.2002 |
| JOHN DEERE | 370 8.1 | [6081] | 01.1998-12.2002 |
| JOHN DEERE | 4039DFM 3.9 | [239CI] | |
| JOHN DEERE | 4045TFM 4.5 | [276CI] |
Reference Information
| 114277 | CARGO |
| 18458N | WAI / TRANSPO |
| 18458R | WAI / TRANSPO |
| 190-30132 | ROBERT'S |
| 20432736BN | REAL |
| 20432736OE | REAL |
| 228000-6570 | DENSO |
| 228000-6571 | DENSO |
| 228000-6572 | DENSO |
| 228000-7010 | DENSO |
| 228000-7011 | DENSO |
| 228000-7012 | DENSO |
| 246-30217 | DIXIE |
| 254611 | KUHNER |
| 254611D | KUHNER |
| 5140102 | MEAT & DORIA |
| 6040637.0 | SANDO |
| 6040637.1 | SANDO |
| 631.502.113 | PSH |
| 631.502.113.260 | PSH |
| 631.502.113.460 | PSH |
| 91-29-5459 | WILSON |
| CST40637AS | CASCO |
| CST40637GS | CASCO |
| F032114277 | CARGO |
| R270475 | JOHN DEERE |
| RE500199 | JOHN DEERE |
| RE500345 | JOHN DEERE |
| RE70475 | JOHN DEERE |
| RE70961 | JOHN DEERE |
| S134.534 | PSH |
| S144.761 | PSH |
| S24DE0146A2 | SIDAT |
| S6385S | AS-PL |
| S-8946 | DIXIE |
| SE501354 | JOHN DEERE |
| SE501407 | JOHN DEERE |
| SE501424 | JOHN DEERE |
| SE502077 | JOHN DEERE |
| STN6570 | KRAUF |
| STR6089 | ELECTROLOG |
| STR70146 | WOODAUTO |
| TY24444 | JOHN DEERE |
| UD17030S | AS-PL |
