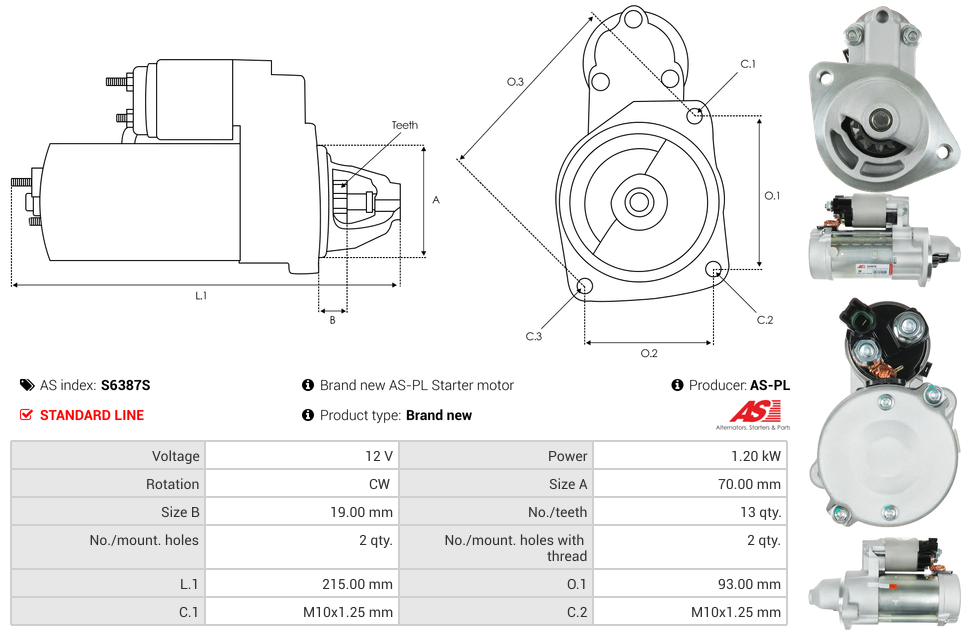

Specifications
Kilowatt | 1.2 kW |
Length (L.1) | 215 mm |
Mount Hole Center - Center (O.1) | 93 mm |
Mount Hole Diameter (C.1) | M10x1.25 mm |
Mount Hole Diameter (C.2) | M10x1.25 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 13 qty |
Pinion at Rest (B) | 19 mm |
Rotation | CW |
Spigot Diameter (A) | 70 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
KIA | Forte 1.8 | 01.2014-12.2016 | |
KIA | Soul 2.0 | 01.2012-12.2013 |
Reference Information
S-80519 UD20511S 36100-2E300 256211 91-29-5808 428000-8280 STN5885Video/Publications
256211 36100-2E300 428000-8280 91-29-5808 S-80519 STN5885 UD20511SAdd Your Number
