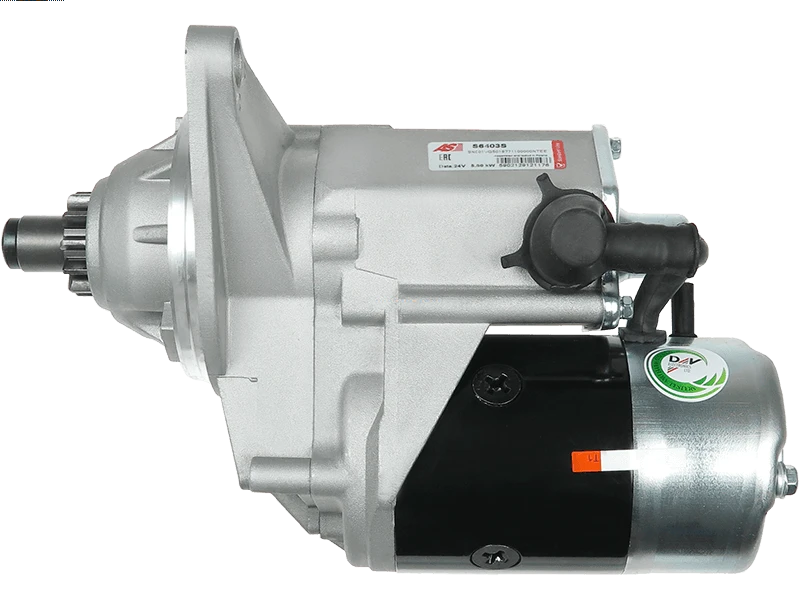

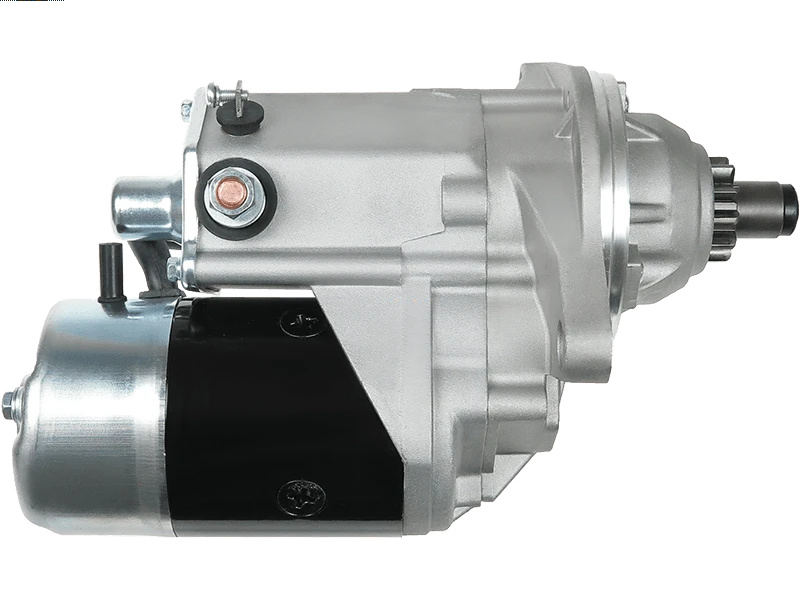

Specifications
| Kilowatt | 5.5 kW |
| Length (L.1) | 296 mm |
| Mount Hole Center - Center (O.1) | 172 mm |
| Mount Hole Diameter (C.1) | 15.5 mm |
| Mount Hole Diameter (C.2) | 15.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 57 mm |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HITACHI | EX300-2 | [6SD1] | 01.1993-12.1994 |
| HITACHI | EX300-3 | [6SD1] | 01.1994-12.1997 |
| HITACHI | EX300-3C | [6SD1] | 01.1994-12.1997 |
| HITACHI | EX300-5 | [6SD1] | 01.1997-12.2001 |
| HITACHI | EX300LC-2 | [6SD1] | 01.1993-12.1994 |
| HITACHI | EX300LC-3 | [6SD1] | 01.1994-12.1997 |
| HITACHI | EX300LC-3C | [6SD1] | 01.1994-12.1997 |
| ISUZU | Engine | [6SD1] | 01.1988-12.2007 |
| JOHN DEERE | 550K | [4045] | |
| JOHN DEERE | 605K | [4045] | |
| JOHN DEERE | 650K | [4045] | |
| KOMATSU | FD70 | [6D105] | 01.1993-12.2005 |
| LINKBELT | LS4300C | [6SD1] | 01.1988-12.2003 |
Reference Information
STN9141 6040614.1 190-893 DENDSN2013 6040614 DSN2013 STR70467 1811004220 428080-0820 UD17019S MAV426140 1811002302 428000-0820 190-30170 1811002301 S-8411 BOM UNIT 128000-2450 128000-2451 CST40614AS CST40614GS STR6550 20432416OE STN1141 131.508.112 91-29-5463 20432416BNVideo/Publications
128000-2450 128000-2451 131.508.112 1811002301 1811002302 1811004220 190-30170 20432416BN 20432416OE 428000-0820 428080-0820 6040614.0 6040614.1 91-29-5463 CST40614AS CST40614GS DENDSN2013 MAV426140 S-8411 STN1141 STN9141 STR70467 UD17019S UNIT BOM 190-893Add Your Number
