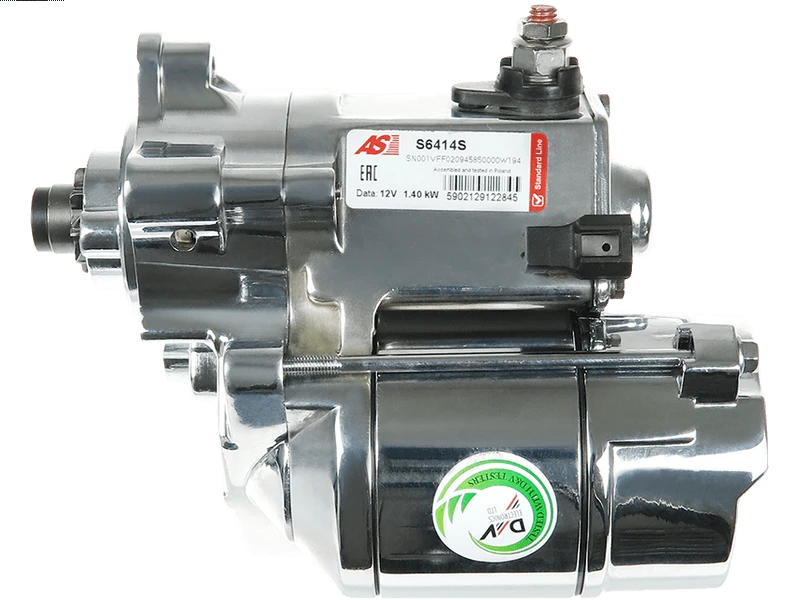

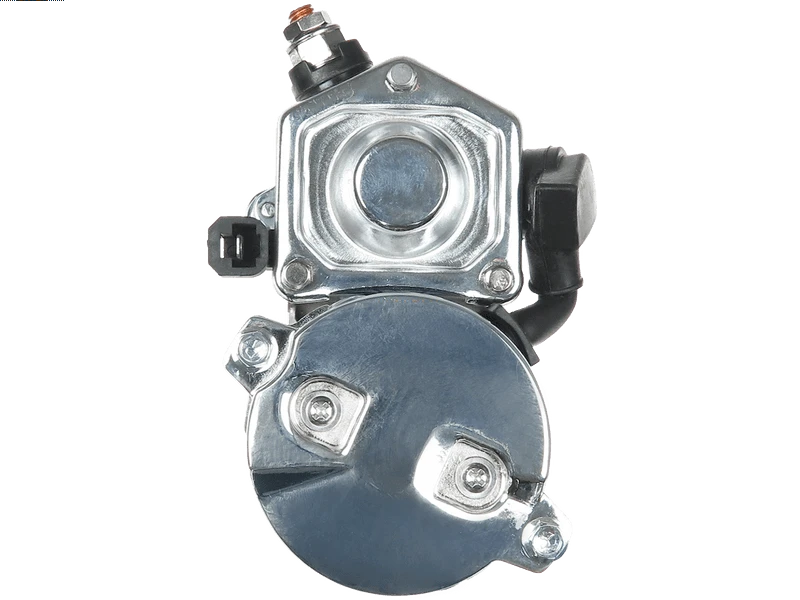

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 450.19 including GST
NZ$ 391.47 excluding GST
or four payments of $112.55
with
Learn More
each
S6414S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
128000-8450Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 188 mm |
| Mount Hole Center - Center (O.1) | 79 mm |
| Mount Hole Diameter (C.1) | UNC 3/8"-16G mm |
| Mount Hole Diameter (C.2) | UNC 3/8"-16G mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 55 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HARLEY DAVIDSON | XLH Sportster 1000 | 01.1981-12.1985 | |
| HARLEY DAVIDSON | XLH Sportster 1100 | 01.1986-12.1987 | |
| HARLEY DAVIDSON | XLH Sportster 1200 | 01.1987-12.2003 | |
| HARLEY DAVIDSON | XLH Sportster 883 | 01.1986-12.2003 | |
| HARLEY DAVIDSON | XLH Sportster Liberty 1100 | 01.1986-12.1986 | |
| HARLEY DAVIDSON | XLR Sportster 1200X | 01.2011-12.2013 | |
| HARLEY DAVIDSON | XLSA Roadster Anniv. 1000 | 01.1982-12.1982 | |
| HARLEY DAVIDSON | XL Sportster 1200 | 01.2004-12.2014 | |
| HARLEY DAVIDSON | XL Sportster 50th Anniv. 1200 | 01.2007-12.2007 | |
| HARLEY DAVIDSON | XL Sportster 883 | 01.2004-12.2014 | |
| HARLEY DAVIDSON | XLS Roadster 1000 | 01.1981-12.1985 | |
| HARLEY DAVIDSON | XLX-61 1000 | 01.1983-12.1985 | |
| HARLEY DAVIDSON | XR1000 | 01.1983-12.1984 | |
| HARLEY DAVIDSON | XR Sportster 1200 | 01.2008-12.2008 | |
| HARLEY DAVIDSON | XR Sportster 1200X | 01.2010-12.2010 |
Reference Information
| 128000-8450 | DENSO |
| 128000-8451 | DENSO |
| 128000-8453 | DENSO |
| 128000-8456 | DENSO |
| 17632R | WAI / TRANSPO |
| 18477N | WAI / TRANSPO |
| 18477NC | WAI / TRANSPO |
| 20432154BN | REAL |
| 246-14179 | DIXIE |
| 256083 | KUHNER |
| 31391-9 | HARLEY DAVIDSON |
| 31391-91 | HARLEY DAVIDSON |
| 31391-91A | HARLEY DAVIDSON |
| 31391-91B | HARLEY DAVIDSON |
| 31514-90 | HARLEY DAVIDSON |
| 400.517.092.050 | PSH |
| 400.517.092.265 | PSH |
| 6040451.0 | SANDO |
| 91-29-5410 | WILSON |
| CST40451AS | CASCO |
| S-8955 | DIXIE |
| STN1847 | KRAUF |
| STN9847 | KRAUF |
| UD16994S | AS-PL |
