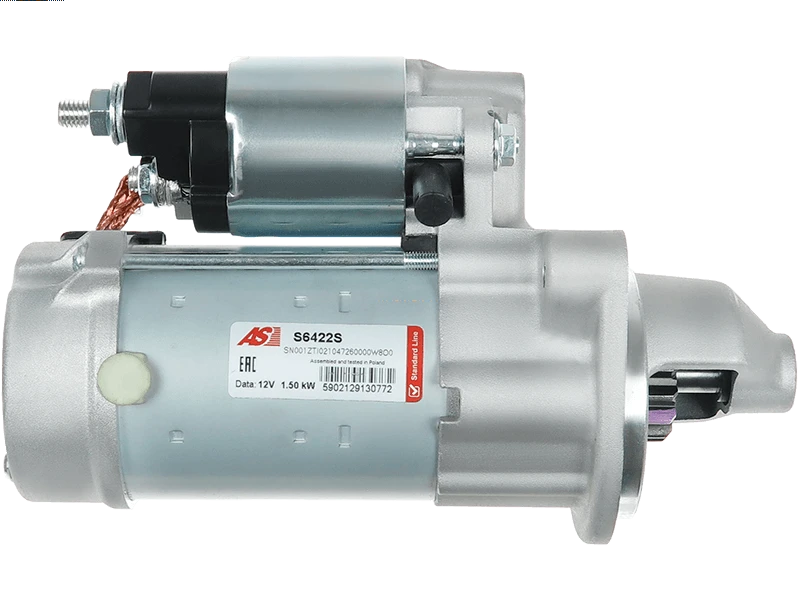

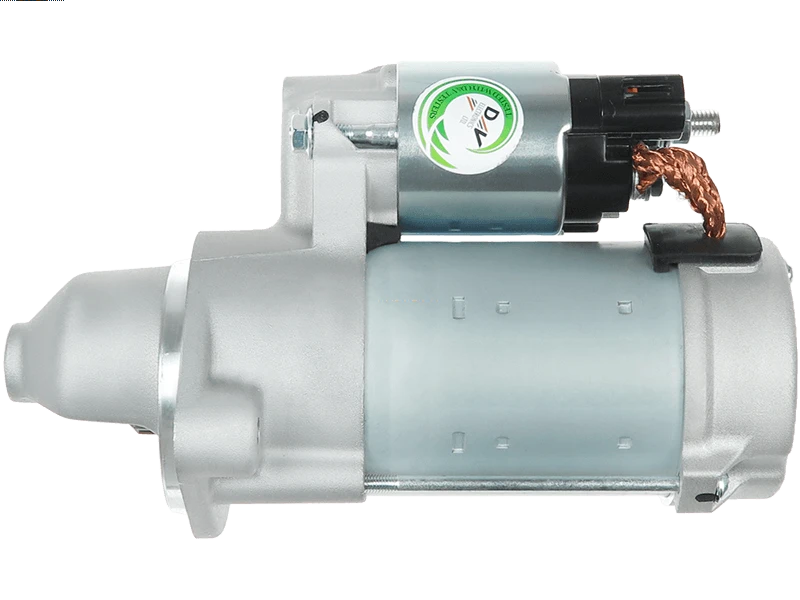

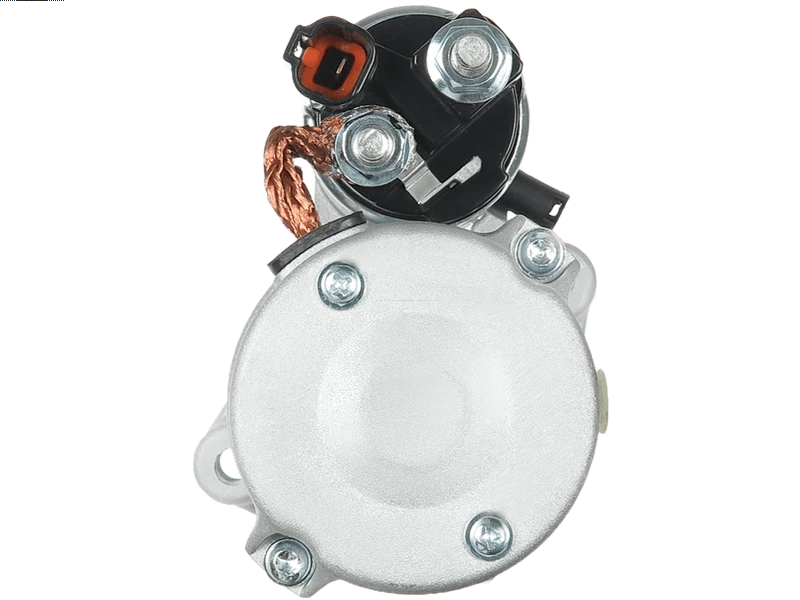

Specifications
Kilowatt | 1.5 kW |
Length (L.1) | 215 mm |
Mount Hole Center - Center (O.1) | 95 mm |
Mount Hole Diameter (C.1) | M10x1.25 mm |
Mount Hole Diameter (C.2) | M10x1.25 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 15 qty |
Pinion at Rest (B) | 18 mm |
Rotation | CW |
Spigot Diameter (A) | 70 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
KIA | Carens 2.0 GDi | [G4NC] | 07.2013- |
KIA | Soul 1.6 GDi | [G4FD] | 02.2014- |
Reference Information
91-29-5889 20432675BN STR70507 10985N 428000-9260 UD18551S S6422S 6040576 361002E301SJ STN3189 36100-2E301 DRS0951 CST40576AS DS2061 S-80603Video/Publications
10985N 20432675BN 36100-2E301 428000-9260 6040576.0 91-29-5889 CST40576AS DRS0951 DS2061 S-80603 STN3189 STR70507 UD18551SAdd Your Number
