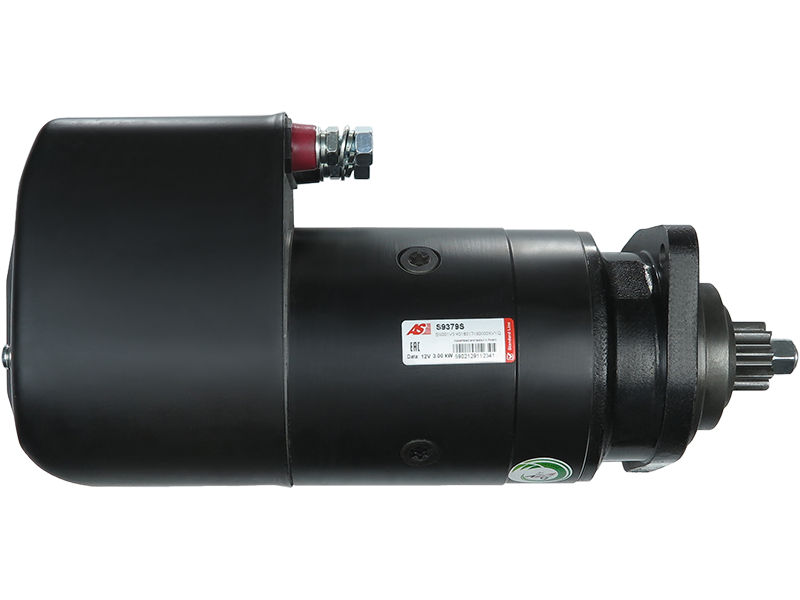

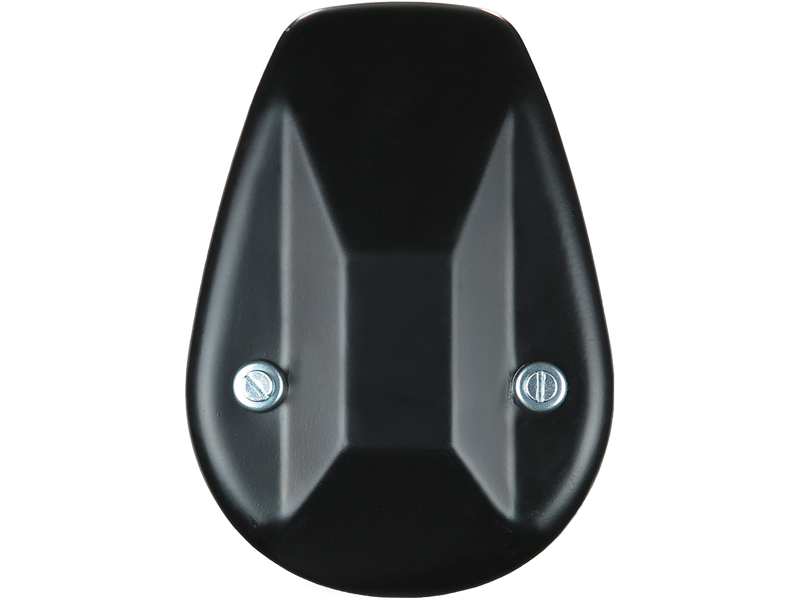

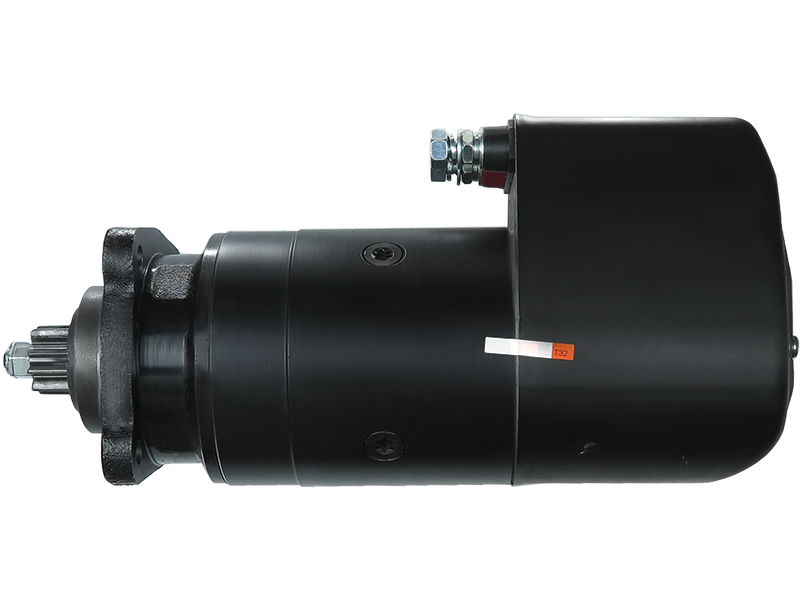

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 778.85 including GST
NZ$ 677.26 excluding GST
or four payments of $194.71
with
Learn More
each
S9379S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 385 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOMAG | BW 10 A | [KHD-F4L912] | 01.1973- |
| BOMAG | BW 15 A | [KHD-F6L912] | 01.1973- |
| BOMAG | BW 200 | [KHD-F4L912] | 01.1973-06.1986 |
| BOMAG | BW 4 A | [KHD-F3L912] | 01.1973-09.1984 |
| BOMAG | BW 6 A | [KHD-F3L912] | 01.1973- |
| MAN | D 0020 | 01.1965-12.1973 | |
| VOLVO | B 705 | [D47B] | 01.1962-04.1964 |
| VOLVO | F 84 | [D50B] | 01.1972-12.1974 |
| VOLVO | F 84T | [TD50B] | 01.1972-10.1978 |
| VOLVO | F 85 | [D50B] | 01.1972-12.1974 |
| VOLVO | F 85T | [TD50B] | 01.1972-10.1978 |
| VOLVO | F 86 | [D70B] | 06.1970-12.1974 |
| VOLVO | F 86T | [TD70B] | 08.1970-09.1974 |
| VOLVO | FB 84 | [D50B] | 01.1972-12.1974 |
| VOLVO | FB 84T | [TD50B] | 01.1972-10.1978 |
| VOLVO | FB 85T | [TD50B] | 01.1972-10.1978 |
| VOLVO | FB 86 | [D70B] | 06.1970-12.1974 |
| VOLVO | FB 86T | [TD70B] | 08.1970-09.1974 |
| VOLVO | L 375 | [D47A] | 01.1959-12.1961 |
| VOLVO | L 465 | [D47B] | 06.1961-05.1965 |
| VOLVO | L 475 | [D47B] | 06.1961-05.1965 |
| VOLVO | L 4751 | [D47B] | 10.1964-12.1965 |
| VOLVO | N 7 | [TD70B] | 09.1973-07.1978 |
| VOLVO | N 84 | [D50B] | 01.1972-08.1973 |
| VOLVO | N 86T | [TD70B] | 08.1970-08.1973 |
| VOLVO | NB 84 | [D50B] | 01.1972-08.1973 |
| VOLVO | NB 86 | [D70B] | 06.1970-08.1973 |
| VOLVO | NB 86T | [TD70B] | 08.1970-08.1973 |
| VOLVO BM | S950 | [D50A] | 02.1966-12.1970 |
| VOLVO BM | T800 | [D50A] | 01.1967-12.1975 |
| VOLVO BM | T810 | [TD50A] | 03.1969-12.1975 |
| VOLVO BM | T814 | [TD50A] | 03.1969-06.1979 |
Reference Information
| 0025841025 | RENAULT |
| 008961949 | UNIC-SIMCA |
| 1304445 | KHD |
| 19024564 | DELCO |
| 220312 | ERA |
| 22202 | ERA |
| 240500 | VOLVO |
| 254022 | KUHNER |
| 254022D | KUHNER |
| 254022K | KUHNER |
| 254022L | KUHNER |
| 254022M | KUHNER |
| 26024101A | LUCAS |
| 26024101ASEL | LUCAS |
| 500.100.093.100 | PSH |
| 500.100.093.320 | PSH |
| 51262017008 | MAN |
| 51262019008 | MAN |
| 8961949 | FIAT |
| CST10193AS | CASCO |
| S132.674 | PSH |
| S144.181 | PSH |
| SG0460 | GHIBAUDI |
| UD16951S | AS-PL |
